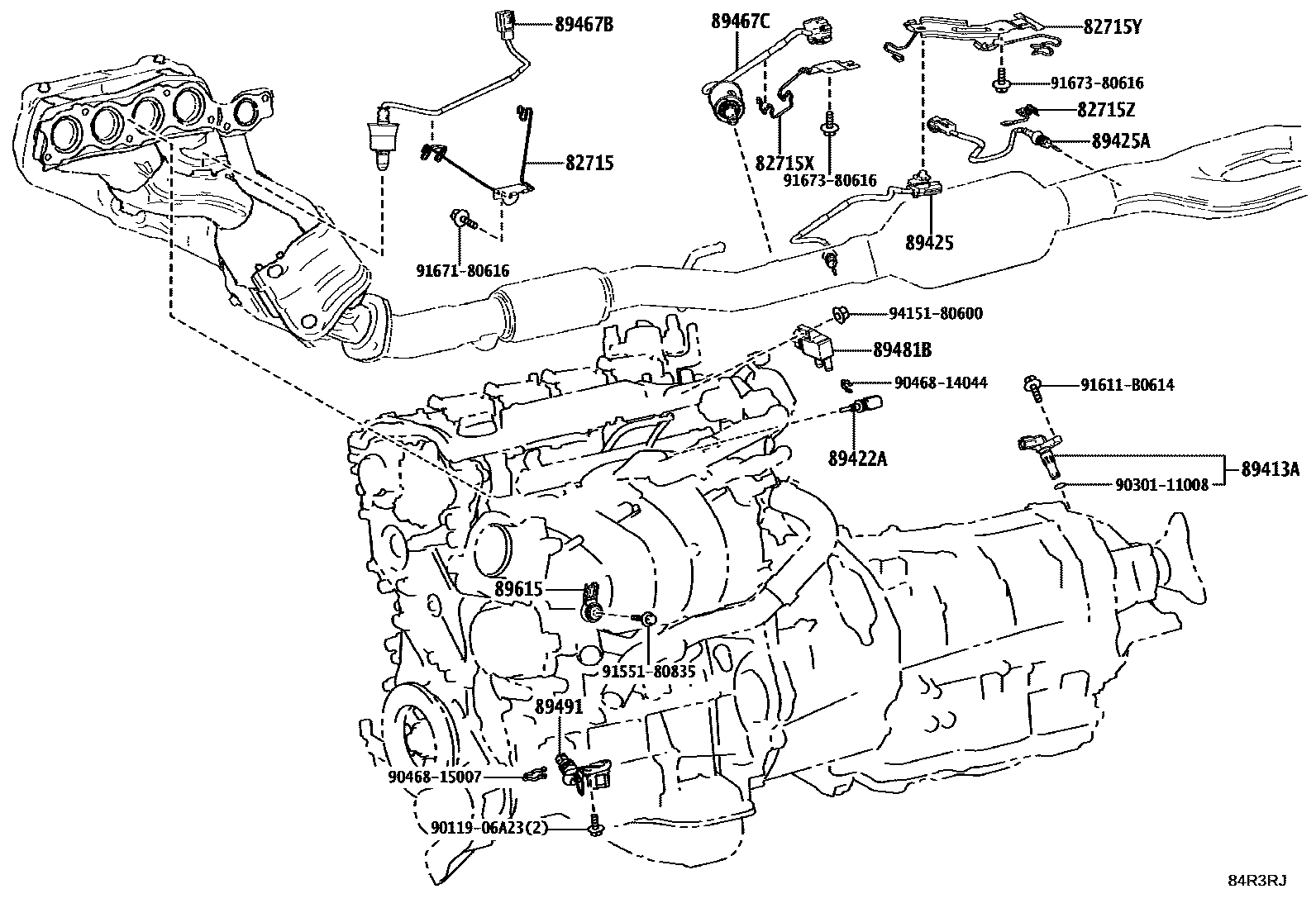

Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1CONSOLE BOX 0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & LUGGAGE 0011 1LUGGAGE ROOM RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-3A600iAZSH32202405

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main8946A-30030iAZSH32202405

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main8946A-30040iAZSH32202405

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-76291iAZSH32202405

89413ASENSOR, TRANSMISSION REVOLUTION

main89413-11011iAZSH32202405

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAZSH32202405

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-30290iAZSH32202405

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-30300iAZSH32202405

89467BSENSOR, AIR FUEL RATIO

main89467-30140iAZSH32202405

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30150iAZSH32202405

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-K0010iAZSH32202405

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iAZSH32202405

89615SENSOR, KNOCK CONTROL

main89615-20090iAZSH32202405

9011906A23

main90119-06A23

9030111008

main90301-11008

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

91611B0614

main91611-B0614

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

22 parts on this diagram · 11 diagrams in section
