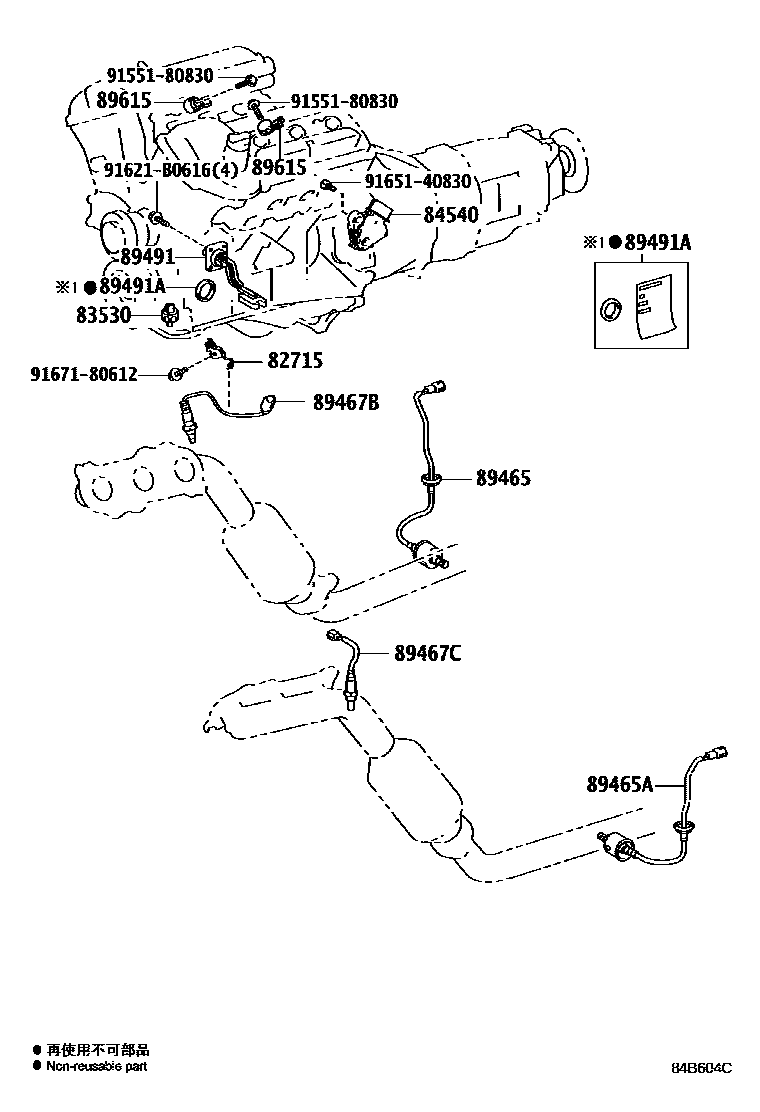

Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1STEERING 0008 1SEAT & REAR ARMREST 0009 1DOOR,ROOF,FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-22850iGRS202201009-201212

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS202201009-201212

84540SWITCH ASSY, NEUTRAL START

main84540-71010iGRS202201009-201212

89465SENSOR, OXYGEN

main89465-30730iGRS202201009-201212

89465ASENSOR, OXYGEN NO.2

main89465-30730iGRS202201009-201212

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGRS202201009-201212

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22040iGRS202201009-201212

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS202201009-201108

main89491-30061iGRS202201109-201212

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS202201009-201212

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRS202201009-201212

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

9167180612

main91671-80612

14 parts on this diagram · 9 diagrams in section
