Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMIION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1IGNITION & COMBINATION SWITCH0008 1SEAT & REAR ARM REST 0009 1DOOR,ROOF,FLOOR & LUGGAGE

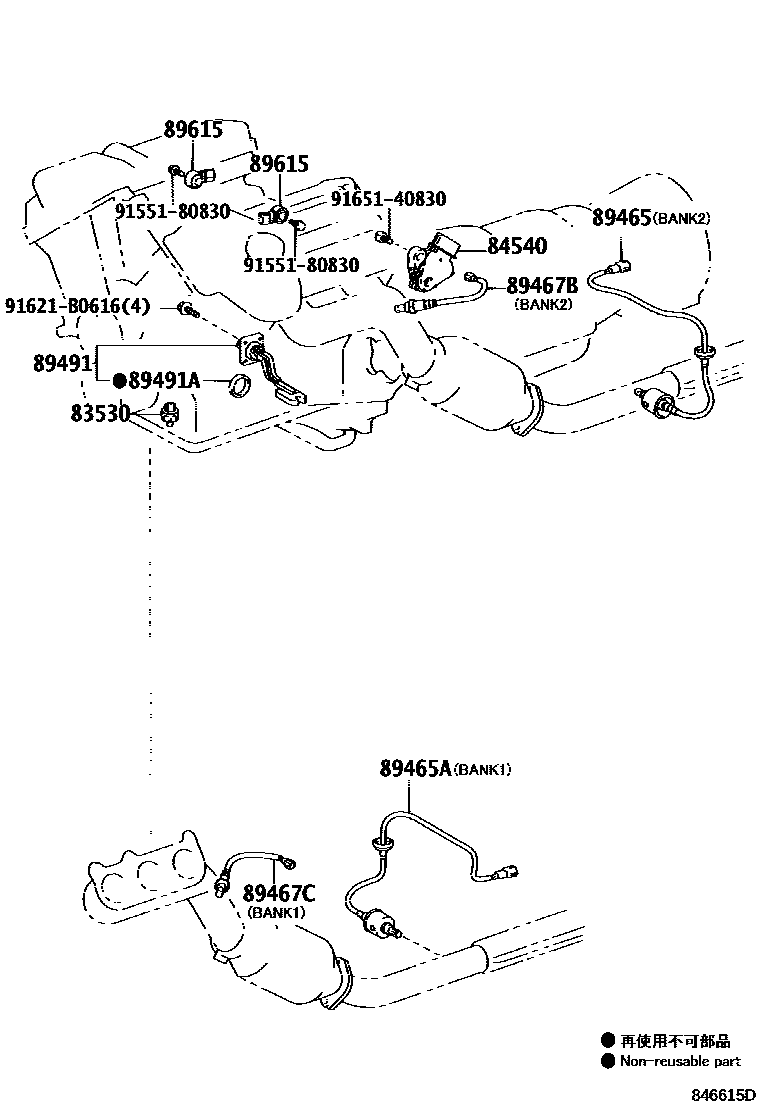

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS182200411-200509

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGRS182200411-200509

89465SENSOR, OXYGEN

main89465-30810iGRS182200411-200509

BANK2

main89465-30850iGRS182200509-200802

BANK2

89465ASENSOR, OXYGEN NO.2

main89465-30810iGRS182200411-200509

BANK1

main89465-30850iGRS182200509-200802

BANK1

89467BSENSOR, AIR FUEL RATIO

main89467-30010iGRS182200411-200509

BANK2

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-30010iGRS182200411-200509

BANK1

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS182200411-200509

sub89491-30061

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS182200411-200509

89615SENSOR, KNOCK CONTROL

main89615-20090×2iGRS182200411-200509

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

12 parts on this diagram · 9 diagrams in section
