Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1INTEGRATION PANEL 0007 1COMBINATION SWITCH 0008 1ROOF,DOOR,SEAT & FLOOR 0009 1OXYGEN SENSOR

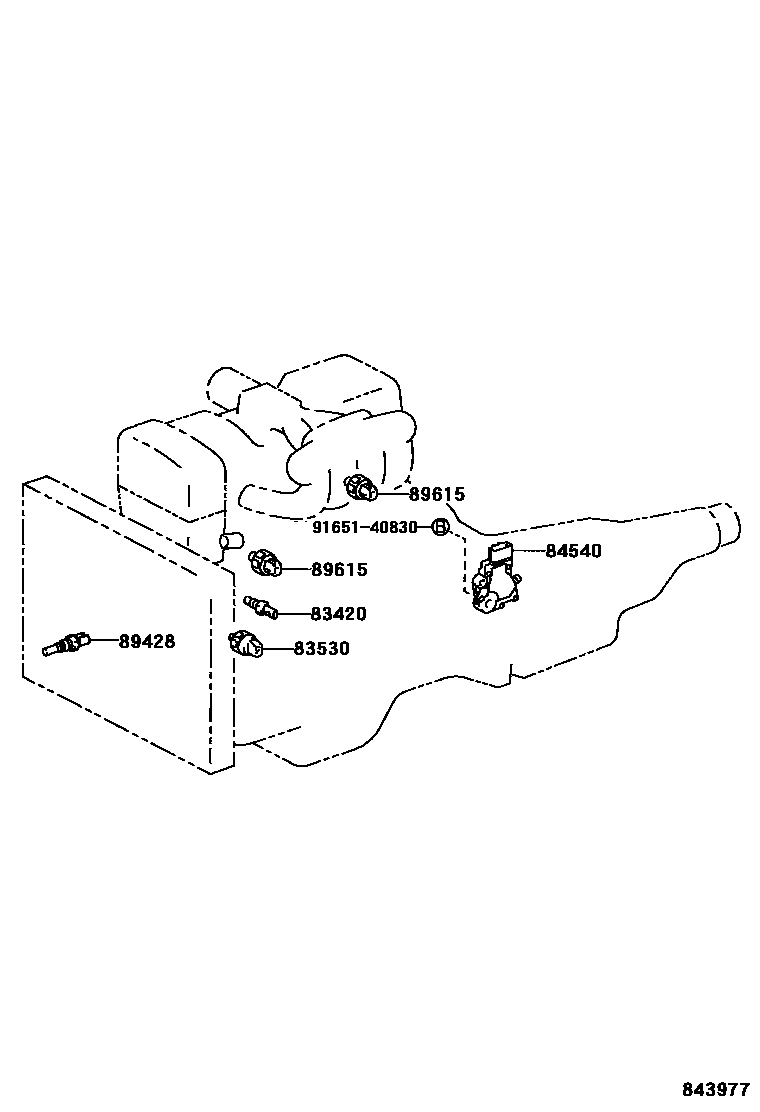

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020iJZS175199909-200108

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iJZS175200108-200312

DENSO

main83530-60020iJZS175200108-200312

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30320iJZS175199909-200108

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJZS175199909-200108

89615SENSOR, KNOCK CONTROL

main89615-12090×2iJZS175199909-200108

9165140830

main91651-40830

6 parts on this diagram · 9 diagrams in section
