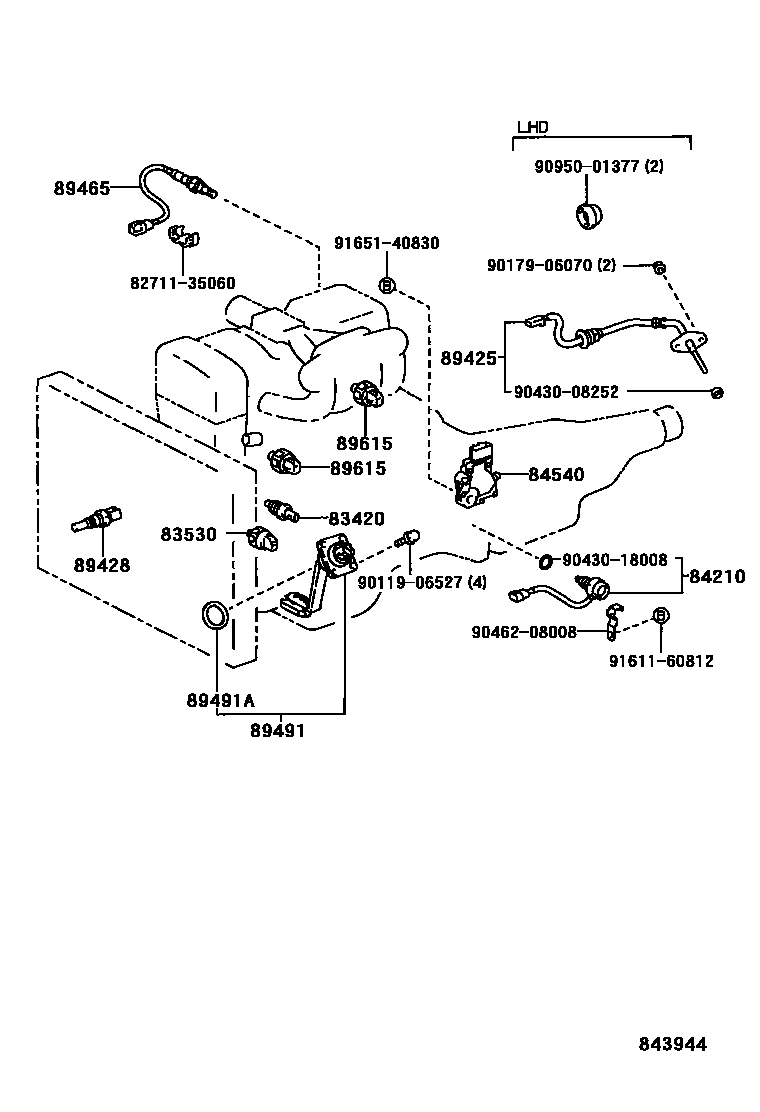

Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SW 0005 1INSTRUMENT PANEL SW 0006 1COWL 0007 1IGNITION & COMBINATION SW 0008 1DOOR 0009 1SEAT, FLOOR, LAGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iGS151,JZS155199512

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGS151,JZS155199803

DENSO

main83530-30090iGS151,JZS155199512-199712

main83530-60020iGS151,JZS155199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iJZS155..5F199512

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS155..4FC..SED199512-199909

TOKAIRIKA

main84540-30290iGS151199707-199808

TOKAIRIKA

main84540-30300iGS151199707-199808

MATSUSHITA

main84540-30320iJZS155..RHD199707

MATSUSHITA

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39505iJZS155..RHD199512-199609

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJZS155199512

89465SENSOR, OXYGEN

main89465-29815iGS151199707-199808

main89465-30250iJZS155..RHD199512-199908

89491SENSOR, ENGINE OIL LEVEL

main89491-30010iJZS155..LHD199512-199909

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iJZS155..LHD199512-199909

89615SENSOR, KNOCK CONTROL

main89615-12040×2iJZS155..RHD199707-199908

MATSUSHITA

main89615-12050×2iJZS155..LHD..4FC..GEN199908-199909

DENSO

main89615-12090×2iJZS155199909-200108

DENSO

main89615-20030iGS151199707-199808

TOYOTA

sub89615-32040

main89615-22030×2iJZS155..LHD199512-199609

MATSUSHITA

main89615-22040×2iJZS155..SED199609-199909

LEADED GASOLINE SPEC,DENSO

main89615-33020iGS151199707-199808

DENSO

sub89615-32030

main89615-50010×2iJZS155..RHD199512-199707

HONG KONG OR SINGAPORE SPEC;THAILAND SPEC

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9011906527

main90119-06527

9017906070

main90179-06070

9043008252

main90430-08252

9043018008

main90430-18008

9046208008

main90462-08008

9095001377

main90950-01377

9161160812

main91611-60812

9165140830

main91651-40830

19 parts on this diagram · 9 diagrams in section
