Toyota CROWN — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

28300RELAY ASSY, STARTER

main28300-16010i1GFE,5M#,7MGE,4Y..GS131,MS13#,YS132198709-199110

main28300-54080i2L..LS130198709-199110

82600FFUSE, FUSE BLOCK

main90982-07011iMS135..LHD198709-198908

30A,GREEN

main90982-08189iMS132..RHD198709-198912

40A,TERM.:FEMALE,GRN

main90982-08227iMS135..LHD198908-199110

50A,TERM.:FEMALE,RED

main90982-09003iGS131,MS133,135198709-199110

15A

main90982-09004iGS131,LS130,MS13#,YS132198709-199110

20A,YELLOW

main90982-09005iMS135..RHD;GS131,LS130,MS132,133,YS132198709-198908

7.5A

82616PULLER, FUSE

main82616-12010iGS131,LS130,MS13#,YS132198709-199110

82661COVER, RELAY BLOCK, NO.1

main82662-30020iLS130..RHD198709-198908

UPPER

main82662-30021iLS130..4H198908-199110

UPPER

main82662-30050iGS131,MS132,135..RHD198709-198908

UPPER

main82662-30051iGS131,MS133,135..RHD198908-199110

UPPER

main82662-30090iLS130,MS13#,YS132..LHD198709-198908

UPPER

main82662-30091iGS131,LS130,MS13#,YS132..LHD198908-199110

UPPER

main82663-30020iGS131,LS130,MS13#..RHD198709-199110

LOWER

main82663-30030iGS131,LS130,MS13#,YS132..LHD198709-199110

LOWER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGS131,LS130,MS13#,YS132198709-199110

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYS132198709-199110

sub83530-28030

main83530-30050iGS131,MS13#198709-199104

main83530-30051iGS131,MS13#199104-199110

sub83530-60050

main83530-30060iLS130198709-199110

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iYS132;GS131,LS130,MS132,133..4F,5F198709-199110

main84210-60021iLS130..4H198709-199110

85910CRELAY ASSY (FOR HEATER BLOWER MOTOR)

main90987-04002iGS131,LS130,MS13#,YS132198709-199110

85912RELAY, DEFOGGER

main90987-02004iMS132..4F;MS132..DLX,ROY,SAL;GS131,LS130,MS133,135,YS132198709-198902

85916RELAY, LIGHT CONTROL

main90987-02004iMS132..LHD;GS131,MS133,135;MS132..RHD..ROY;MS132..RHD..5F..SAL198709-198908

HAZARD

main90987-02006iGS131,LS130,MS13#,YS132198709-199110

HEADLAMP

main90987-02008iGS131,LS130,MS13#,YS132198908-199110

FRONT FOG LAMP

main90987-04002iLS130..RHD198709-199110

HAZARD MAIN

86530RELAY ASSY, HORN

main90987-02004iGS131,LS130,MS13#,YS132198709-199110

9043018008

main90430-18008

9046208008

main90462-08008

9161160812

main91611-60812

9166540818

main91665-40818

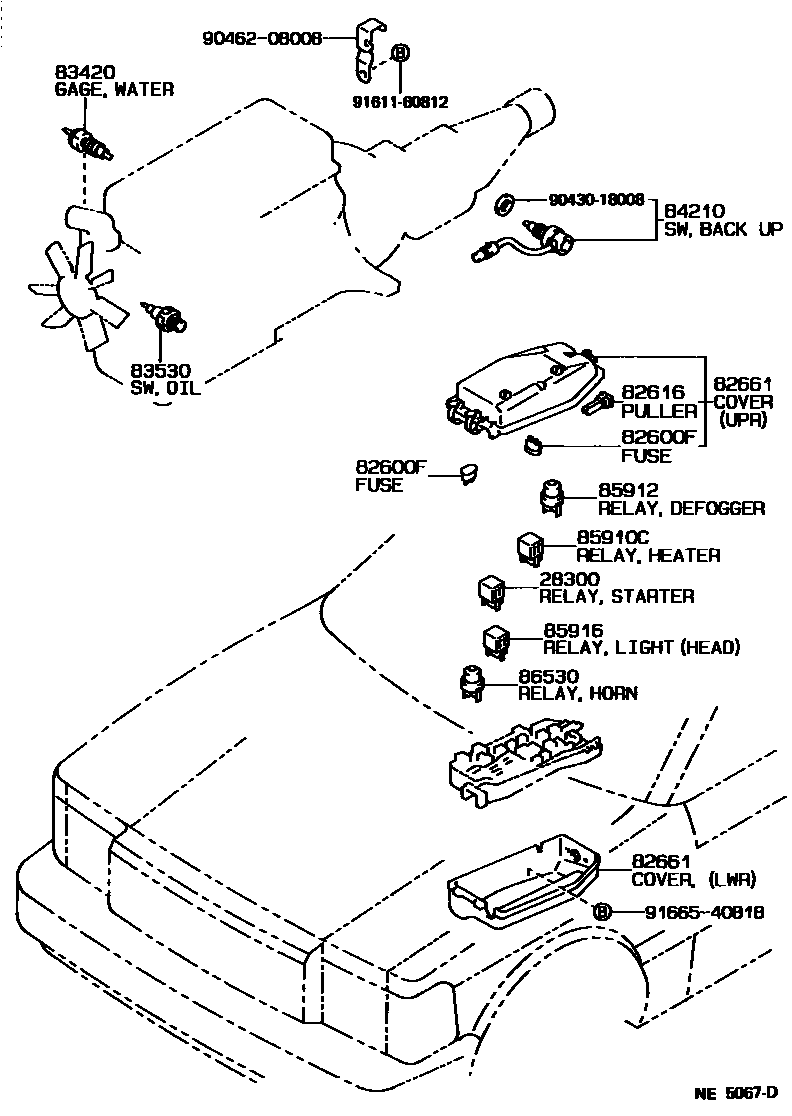

15 parts on this diagram · 13 diagrams in section
