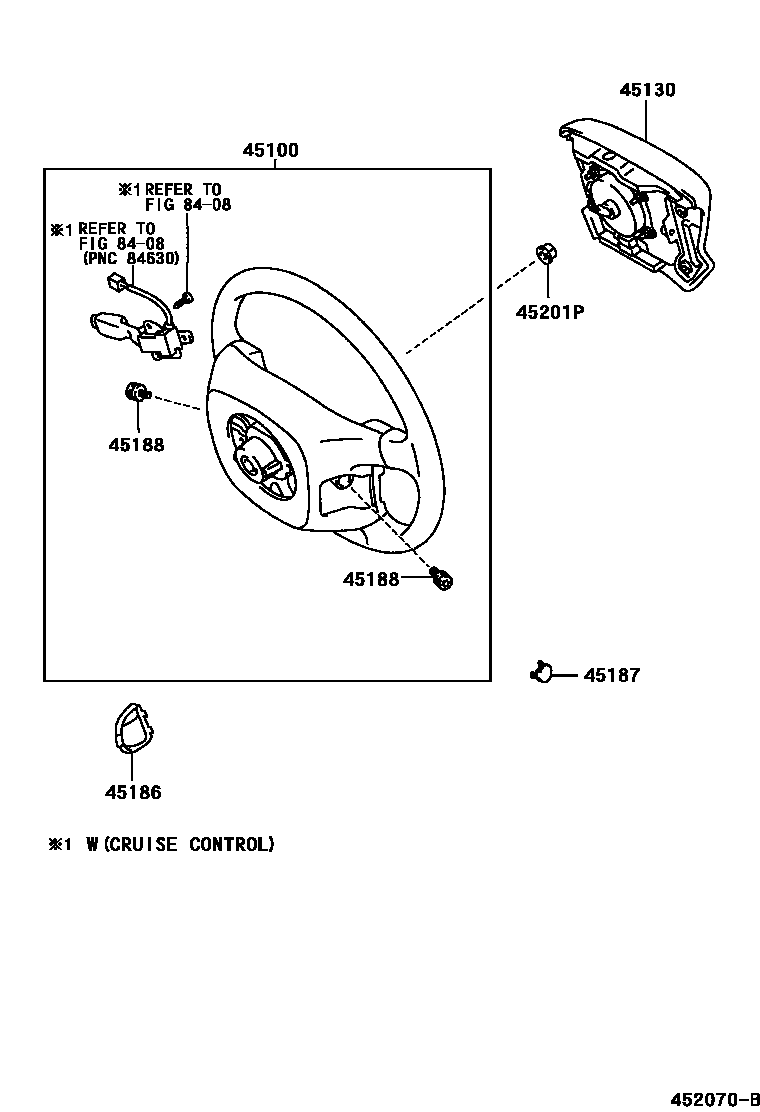

Toyota CROWN — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-3A130-B0i199909-200108

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

main45100-3A130-E0i199909-200108

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-3A140-B0i199909-200108

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

main45100-3A140-E0i199909-200108

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-3A150-B0i199909-200108

4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A150-E0i199909-200108

4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A160-B0i199909-200108

4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

main45100-3A160-E0i199909-200108

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-3A300-B1i200108-200312

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

main45100-3A300-E1i200108-200312

4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#

main45100-3A310-B1i200108-200312

4-SPOKE,URETHANE,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

main45100-3A310-E1i200108-200312

4-SPOKE,URETHANE,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

main45100-3A320-B1i200108-200312

4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1#

main45100-3A320-E1i200108-200312

4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-3A330-B1i200108-200312

4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

main45100-3A330-E1i200108-200312

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

45130BUTTON ASSY, HORN

main45130-30580-B0i199909-200108

DK.CHARCOAL,TRIM1#

main45130-30580-E0i199909-200108

SANDAL WOOD,TRIM0#

main45130-30610-B1i200108-200312

DK.CHARCOAL,TRIM1#

main45130-30610-E1i200108-200312

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-30100-B0i200108-200312

DK.CHARCOAL,TRIM1#

main45186-30100-E0i200108-200312

SANDAL WOOD,TRIM0#

main45186-30110-B0i199909-200108

W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

main45186-30110-E0i200108-200312

W(CRUISE CONTROL),SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-30070-B0i199909-200108

DK.CHARCOAL,TRIM1#

main45187-30070-E0i199909-200108

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i199909-200108

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i199909-200108

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota CROWN

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota CROWN. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
