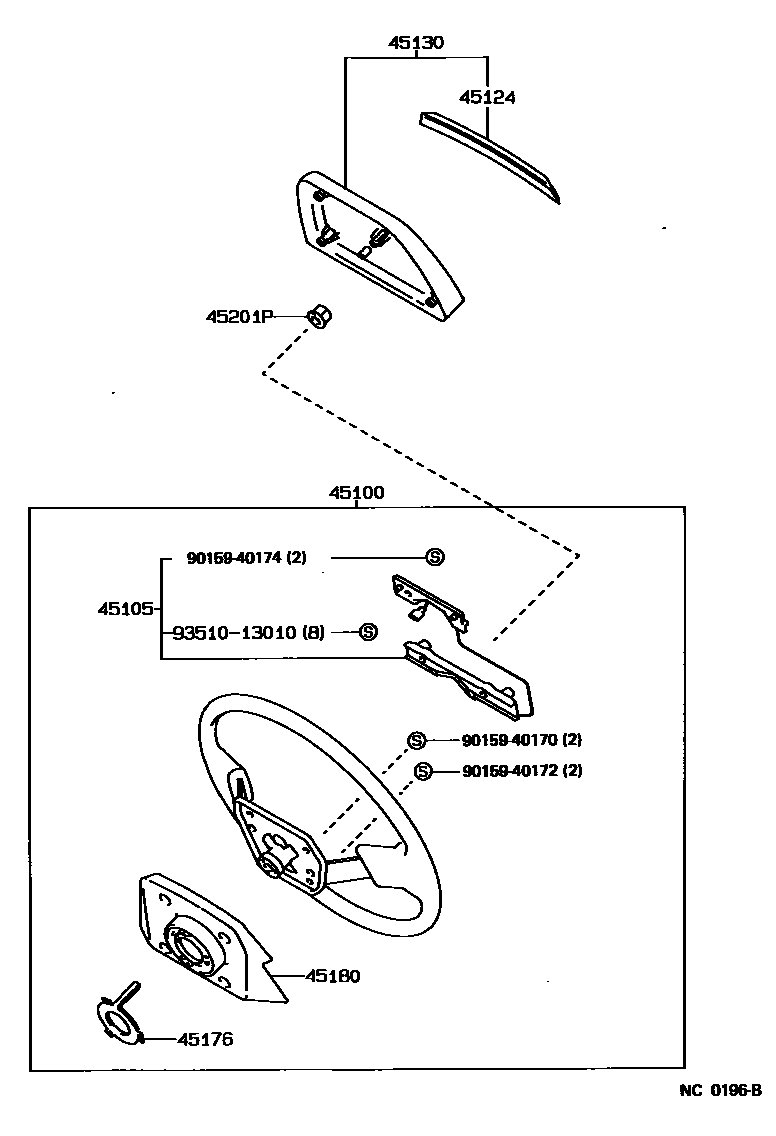

Toyota CROWN — STEERING WHEEL
45100WHEEL ASSY, STEERING
3SPOKE,POLYPROPYLENE,MAROON,TRIM3#
3SPOKE,POLYPROPYLENE,BLUE,TRIM8#
main45100-30290-02iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..4HC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX)198709-198908
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
main45100-30290-04iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..4HC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX)198709-198908
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
main45100-30360-02iLS130,YS132..4F; MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD198908-199006
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
main45100-30360-04iLS130,YS132; MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD198908-199006
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
main45100-30361-02iLS130,YS132..4F; MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD199006-199110
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
main45100-30361-04iLS130;YS132..4F; MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD199006-199110
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
W(CRUISE CONTROL),MAROON,TRIM3#
W(CRUISE CONTROL),BLUE,TRIM8#
W(CRUISE CONTROL),SABLE,TRIM4#
W(CRUISE CONTROL),MAROON,TRIM3#
BLUE,TRIM8#
W(CRUISE CONTROL),SABLE,TRIM4#
W(CRUISE CONTROL),MAROON,TRIM3#
W(CRUISE CONTROL),BLUE,TRIM8#
W(CRUISE CONTROL),SABLE,TRIM4#
W(CRUISE CONTROL),MAROON,TRIM3#
W(CRUISE CONTROL),BLUE,TRIM8#
W(CRUISE CONTROL),SABLE,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-30100iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..GEN;GS131,MS132,133..(4FC,5F)..(DLX,ROY,SAL,SALEX)198709-198908
W(POWER STEERING)
45124ORNAMENT, STEERING WHEEL MARK
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
45130BUTTON ASSY, HORN
MAROON,TRIM3#
BLUE,TRIM8#
main45130-30240-02iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..GEN;GS131,MS132,133..(4FC,5F)..(DLX,ROY,SAL,SALEX)198709-198908
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
main45130-30240-04iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..GEN;MS132,133..(4FC,5F)..(DLX,ROY,SAL,SALEX)198709-198908
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
W(CRUISE CONTROL),MAROON,TRIM3#
W(CRUISE CONTROL),BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
45176RING, HORN CONTACT
W(POWER STEERING)
45180COVER SUB-ASSY, STEERING WHEEL
MAROON,TRIM3#
BLUE,TRIM8#
main45180-30020-02iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..4HC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX)198709-198908
MAROON,TRIM3#; W(POWER STEERING),MAROON,TRIM3#
main45180-30020-04iLS130,MS132,YS132..(DLX,STD)..GEN; MS135..4HC;MS132,133..(4FC,5F)..(DLX,SAL,SALEX)198709-198908
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
main45180-30040-04iLS130,YS132; MS135..4HC;MS135..GCC;GS131,MS132,133..DLX,SAL,SALEX,STD198908-199110
BLUE,TRIM8#; W(POWER STEERING),BLUE,TRIM8#
SABLE,TRIM4#
MAROON,TRIM3#
BLUE,TRIM8#
SABLE,TRIM4#
45201PNUT, STEERING WHEEL SET
TAXI SPEC FOR SAUSI ARABIA
9015940170
main90159-40170
9015940172
main90159-40172
9015940174
main90159-40174
9351013010
main93510-13010
11 parts on this diagram · 4 diagrams in section
STEERING WHEEL for Toyota CROWN
This section contains 24 genuine Toyota parts for the STEERING WHEEL system of the Toyota CROWN. Key components include: STEERING COLUMN & SHAFT, WHEEL ASSY, STEERING, PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1, SPACER(FOR HORN BUTTON CONTACT PLATE), ORNAMENT, STEERING WHEEL MARK.
