Toyota CROWN — STANDARD TOOL

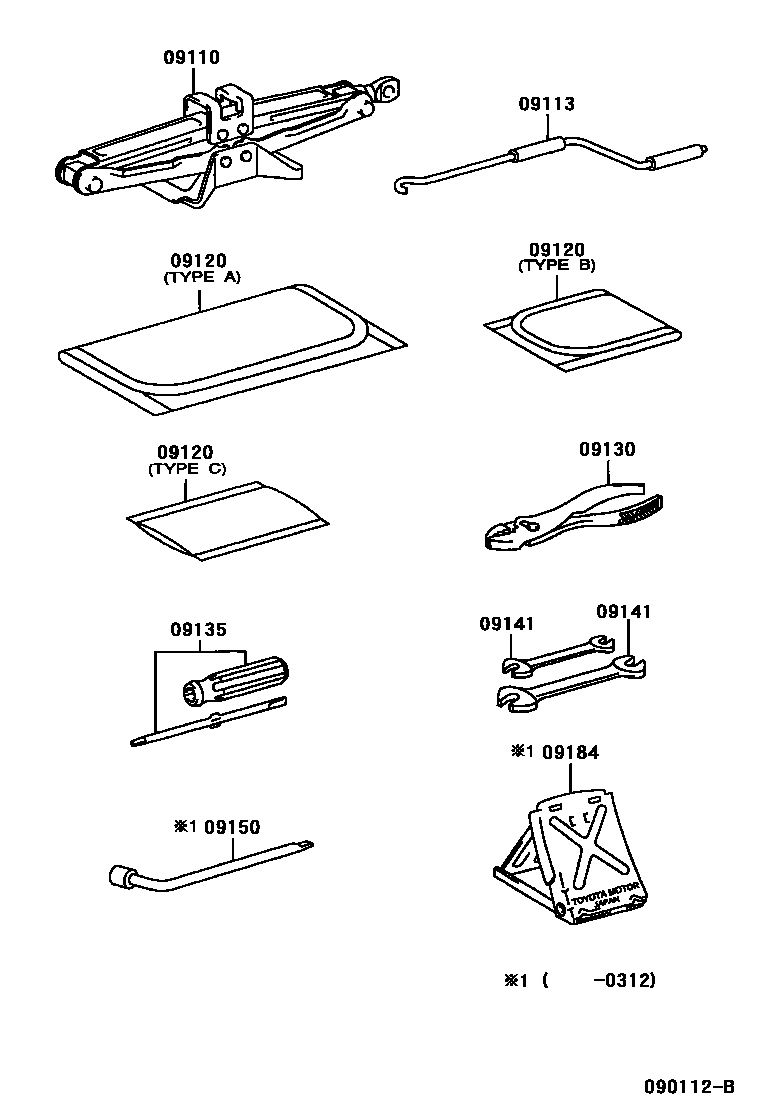

Parts diagram

09110JACK ASSY

main09111-30120i199909-200108

09113HANDLE, JACK

main09113-22020i199909-200108

09120BAG, TOOL

main09120-24010i199909-200108

TYPE A:REFER TO ILLUSTRATION

main09120-24020i200108-200312

TYPE B:REFER TO ILLUSTRATION

main09120-28040i200108-200312

TYPE C:REFER TO ILLUSTRATION

09130PLIERS

main99913-11500i199909-200108

09135DRIVER, SCREW

main99915-10700i199909-200108

09141SPANNER

main99914-10810i199909-200108

8 X 10

main99914-11214i199909-200108

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i199909-200108

09184STOPPER, WHEEL

main09184-00010i199909-200108

8 parts on this diagram · 1 diagram in section
