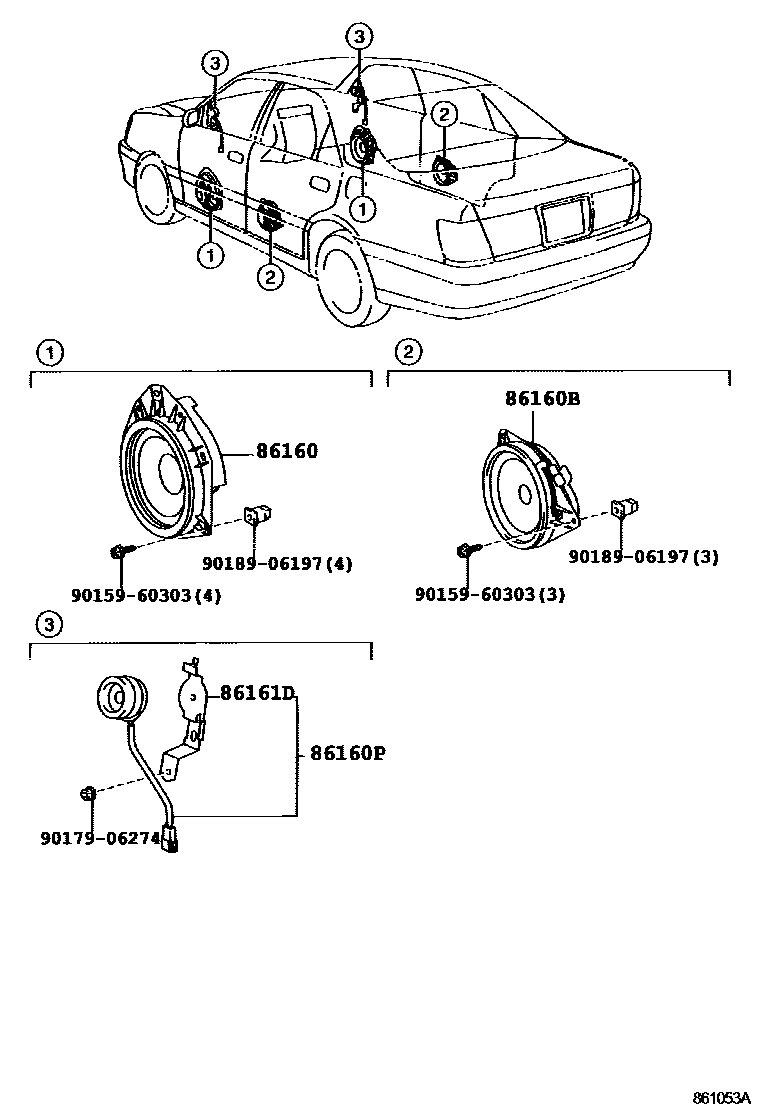

Toyota CROWN — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-3A470iJZS175199909-200108

RH

main86160-3A480iJZS175199909-200108

LH

86160BSPEAKER ASSY, REAR

main86160-3A490iJZS175199909-200108

RH

main86160-3A500iJZS175200108-200312

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-3A520iJZS175199909-200108

RH

main86160-3A530iJZS175200108-200312

LH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-30060iJZS175199909-200108

RH

main86161-30070iJZS175200108-200312

LH

9015960303

main90159-60303

9017906274

main90179-06274

9018906197

main90189-06197

7 parts on this diagram · 1 diagram in section
