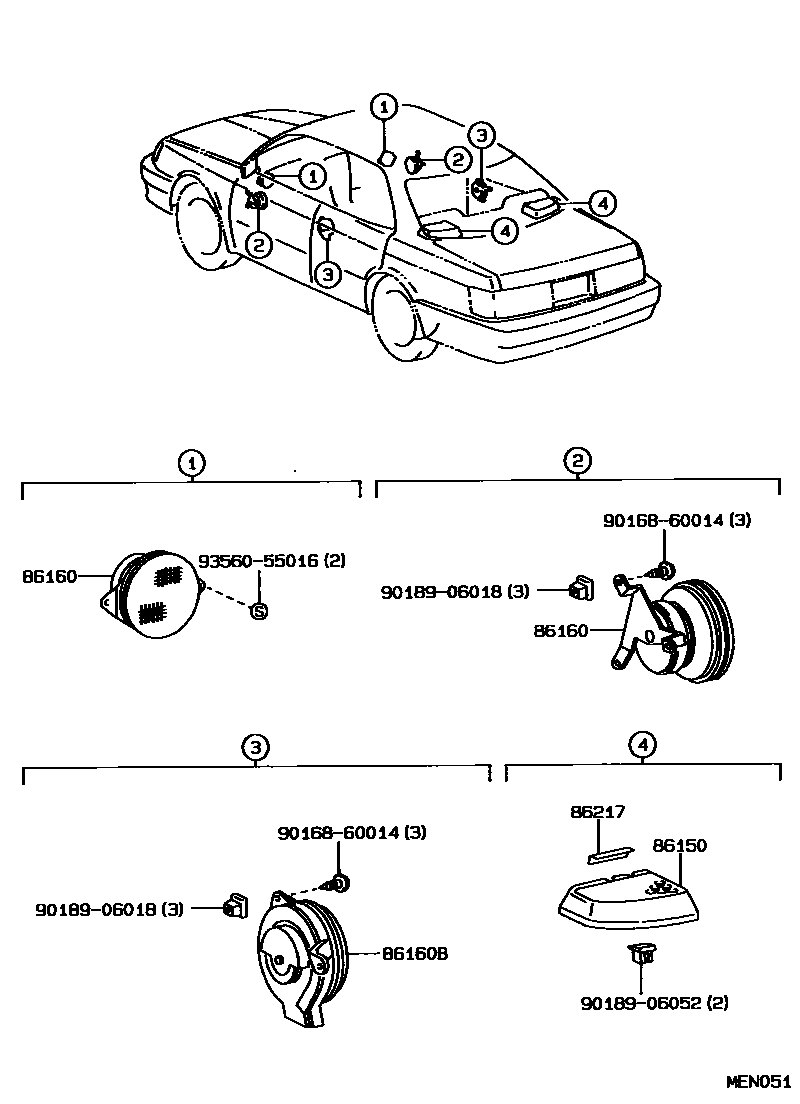

Toyota CROWN — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-30010-02iGS131,MS132,135..ROY198709-199101

MAROON,TRIM3#,RH

main86150-30010-04iMS132,135..ROY198709-199110

BLUE,TRIM8#,RH

main86150-30010-06iMS132,135..ROY198709-199110

SABLE,TRIM4#,RH

main86150-30020-02iGS131,MS132,135..ATM..ROY..GEN199101-199110

MAROON,TRIM3#,LH

main86150-30020-04iMS132,135..ROY198709-199110

BLUE,TRIM8#,LH

main86150-30020-06iMS132,135..ROY198709-199110

SABLE,TRIM4#,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-30240iLS130,MS132,133,YS132..DLX,STD198709-199110

INSTRUMENT PANEL,RH

main86160-30270iMS132..SAL..GCC198709-198908

W(AM/FM MPX ETR 1DIN RADIO) OR W(LOGIC CONTROL STEREO),FRONT DOOR,RH

main86160-30280iMS132..SAL..GCC198709-198908

FRONT DOOR,LH

main86160-30330iMS133198709-198908

W(AM/FM MPX ETR 1DIN RADIO) OR W(LOGIC CONTROL STEREO),FRONT DOOR,RH

main86160-30340iMS133198709-198908

FRONT DOOR,LH

main86160-30350iMS132..SAL..GCC198709-198908

FRONT DOOR,RH

main86160-30360iMS132..SAL..GCC198709-198908

FRONT DOOR,LH

main86160-30390iMS133198709-198908

FRONT DOOR,RH

main86160-30400iMS133198709-198908

FRONT DOOR,LH

main86160-30450iLS130,MS132,133,YS132..DLX,STD198709-199110

INSTRUMENT PANEL,LH

main86160-30520iGS131,MS132,135..ROY..GEN198908-199101

FRONT DOOR,RH

main86160-30530iGS131,MS132,135..ROY..GEN198908-199101

FRONT DOOR,LH

86160BSPEAKER ASSY, REAR

main86160-30250iMS132..SAL..GCC198709-198908

W(AM/FM MPX ETR 1DIN RADIO) OR W(LOGIC CONTROL STEREO),RH

main86160-30260iGS131..5F;MS132,133..SAL;MS135..SED..GCC199101-199110

LH

main86160-30310iMS133198709-198908

W(AM/FM MPX ETR 1DIN RADIO) OR W(LOGIC CONTROL STEREO),RH

sub86160-30480

main86160-30320iMS133198709-198908

LH

sub86160-30490

main86160-30410iMS132..SAL..GCC198709-198908

RH

main86160-30420iMS132..SAL..GCC198709-198908

LH

main86160-30430iMS133198709-198908

RH

sub86160-30480

main86160-30440iMS133198709-198908

LH

sub86160-30490

main86160-30460iGS131,MS132,135..ROY..GEN198908-199101

RH

main86160-30470iGS131,MS132,135..ROY..GEN198908-199101

LH

86217ORNAMENT, SPEAKER BOX

main86217-30020-02×2iGS131,MS132,135..ROY198709-199101

MAROON,TRIM3#

main86217-30020-04×2iMS132,135..ROY198709-199110

BLUE,TRIM8#

main86217-30020-06×2iMS132,135..ROY198709-199110

SABLE,TRIM4#

9016860014

main90168-60014

9018906018

main90189-06018

9018906052

main90189-06052

9356055016

main93560-55016

8 parts on this diagram · 1 diagram in section
