EPC Data

Toyota CROWN — SIDE MOULDING

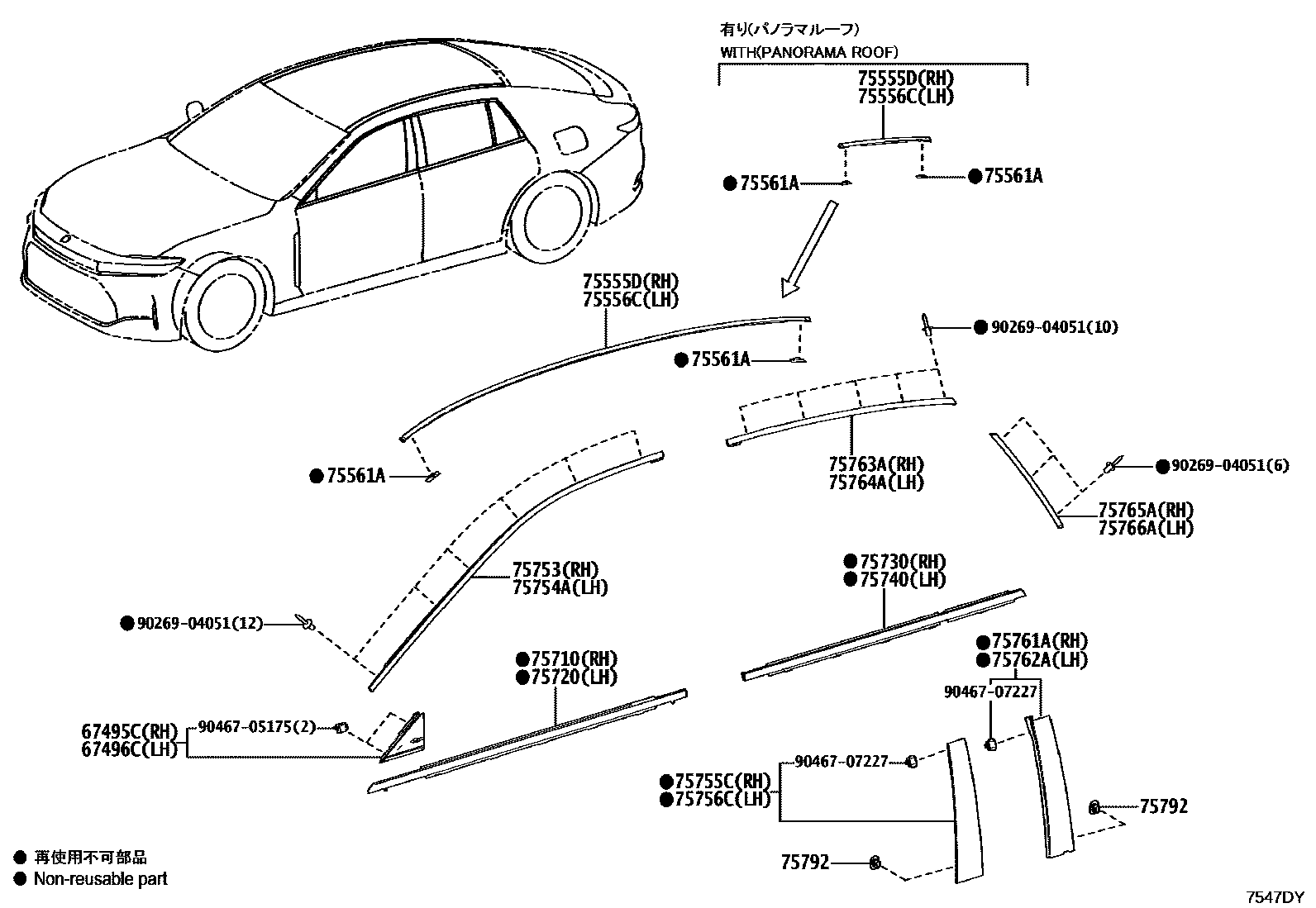

Parts diagram
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
main67495-30150i202405
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
main67496-30150i202405
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-30140-A0i202405-202506
PRECIOUS WHITE PEARL,090
main75555-30140-B0i202405
PRECIOUS METAL,1L5
main75555-30140-B1i202405-202506
MASSIVE GRAY,1L6
main75555-30140-B3i202405-202506
PRECIOUS SILVER,1J6
main75555-30140-C0i202405-202506
PRECIOUS BLACK,219
main75555-30140-E0i202405-202506
PRECIOUS BRONZE,4Y6
main75555-30150i202405
MOON ROOF-WITH(PANORAMA ROOF)
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-30120-A0i202405-202506
PRECIOUS WHITE PEARL,090
main75556-30120-B0i202405
PRECIOUS METAL,1L5
main75556-30120-B1i202405-202506
MASSIVE GRAY,1L6
main75556-30120-B3i202405-202506
PRECIOUS SILVER,1J6
main75556-30120-C0i202405-202506
PRECIOUS BLACK,219
main75556-30120-E0i202405-202506
PRECIOUS BRONZE,4Y6
main75556-30130i202405
MOON ROOF-WITH(PANORAMA ROOF)
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-52050×4i202405
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-30580i202405
main75710-30590i202405
BLACK PACKAGE
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-30580i202405
main75720-30590i202405
BLACK PACKAGE
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-30550i202405
main75730-30560i202405
BLACK PACKAGE
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-30550i202405
main75740-30560i202405
BLACK PACKAGE
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-30170i202405
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
main75754-30170i202405
NO PAINT REQ.
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
main75755-30210i202405
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
main75756-30210i202405
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
main75761-30190i202405
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
main75762-30190i202405
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-30250i202405
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-30250i202405
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-30200i202405
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-30200i202405
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-47010×2i202405
9026904051
main90269-04051
9046705175
main90467-05175
9046707227
main90467-07227

23 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota CROWN

This section contains 47 genuine Toyota parts for the SIDE MOULDING system of the Toyota CROWN. Key components include: COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH, COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, CLIP, ROOF DRIP SIDE FINISH MOULDING.
