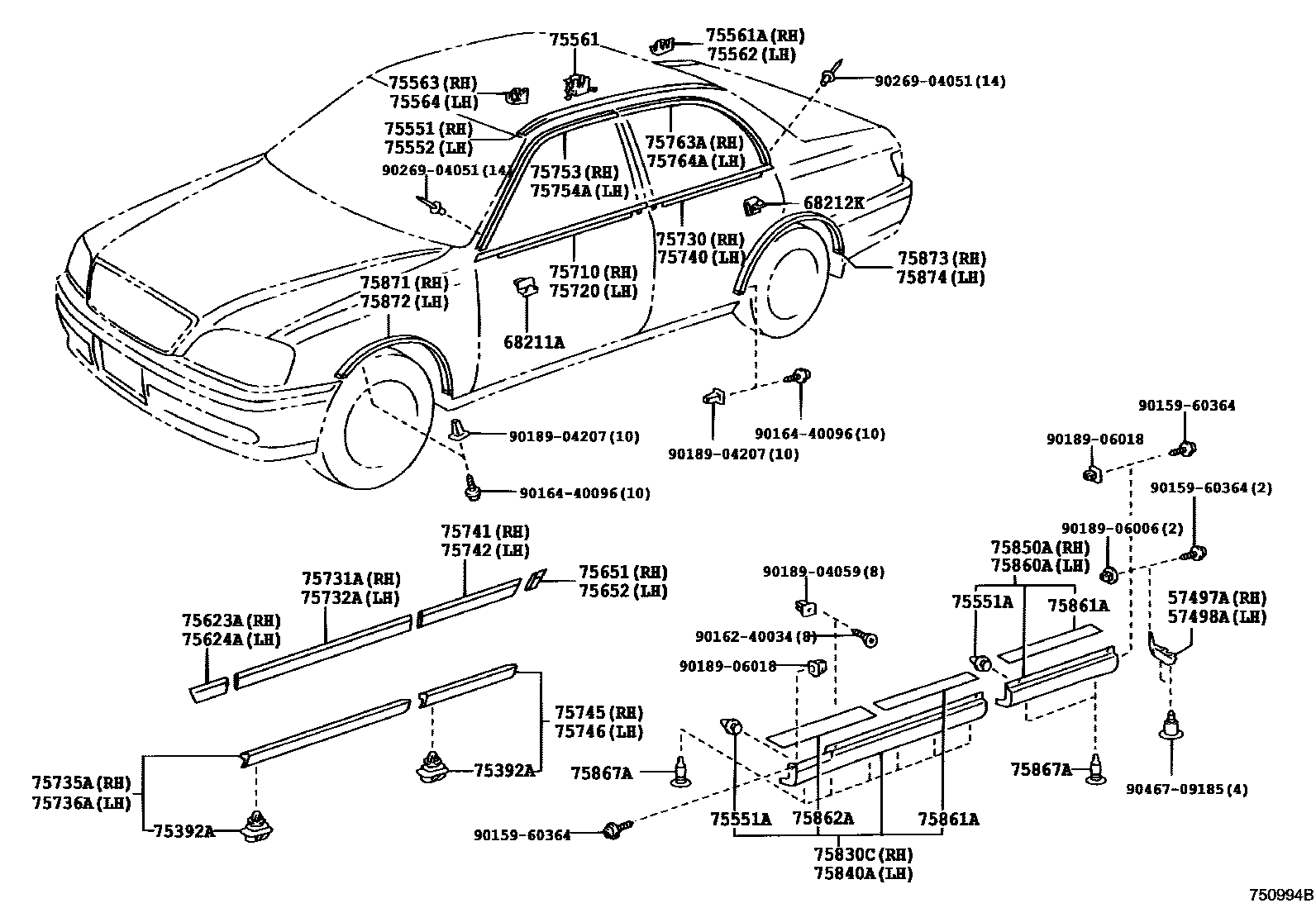

Toyota CROWN — SIDE MOULDING

57497ASHIELD, REAR FLOOR HOUSING

main57497-30010i199909-200102

main57497-30011i200108-200312

57498ASHIELD, REAR FLOOR HOUSING, NO.2

main57498-30010i199909-200102

main57498-30011i200102-200108

68211ACLIP, DOOR BELT MOULDING

main68211-30180×2i200108-200312

68212KCLIP, DOOR GLASS WEATHERSTRIP, OUTER

main68212-30040×2i199909-200108

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-30270×24i199909-200108

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30380-A1i200108-200312

WHITE PEARL CS.,062 ,2FQ

main75551-30390-A0i199909-200108

SUPER WHITE 2,040

main75551-30390-B0i199909-200108

SILVER ME.,1C0

main75551-30390-C0i200108-200312

BLACK,202

main75551-30390-D0i199909-200108

ROSE RED MC.,3M9

main75551-30390-G0i199909-200108

BLACKISH GREEN MC.CC,6R5

main75551-30390-G1i200108-200312

LT.GREEN M.M.,6S8

main75551-30390-J0i199909-200108

DK.BLUE MC.,2FR ,8L4

main75551-30390-J1i199909-200108

GRAYISH BLUE ME.,8N6

main75551-30390-J2i200108-200312

DARK BLUE MC.,8P8

75551ACLIP, ROOF DRIP MOULDING, NO.1

main67771-12070×16i199909-200108

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30380-A1i199909-200108

WHITE PEARL CS.,062 ,2FQ

main75552-30390-A0i200108-200312

SUPER WHITE 2,040

main75552-30390-B0i199909-200108

SILVER ME.,1C0

main75552-30390-C0i200108-200312

BLACK,202

main75552-30390-D0i199909-200108

ROSE RED MC.,3M9

main75552-30390-G0i199909-200108

BLACKISH GREEN MC.CC,6R5

main75552-30390-G1i200108-200312

LT.GREEN M.M.,6S8

main75552-30390-J0i199909-200108

DK.BLUE MC.,2FR ,8L4

main75552-30390-J1i199909-200108

GRAYISH BLUE ME.,8N6

main75552-30390-J2i200108-200312

DARK BLUE MC.,8P8

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-30030×8i199909-200002

main75561-30060×8i200002-200108

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-30040i199909-200002

main75561-30070i200002-200108

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-30010i199909-200002

main75562-30030i200002-200108

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-30100i199909-200002

main75563-30120i200108-200312

75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75564-30080i199909-200002

main75564-30100i200002-200108

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-30350-A0i199909-200108

SUPER WHITE 2,040

main75623-30350-A1i200108-200312

WHITE PEARL CS.,062

main75623-30350-B0i200108-200312

SILVER ME.,1C0

main75623-30350-B1i199909-200108

SILVER ME.,2FQ

main75623-30350-C0i200108-200312

BLACK,202

main75623-30350-D0i199909-200108

ROSE RED MC.,3M9

main75623-30350-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75623-30350-G1i200108-200312

LT.GREEN M.M.,6S8

main75623-30350-J0i199909-200108

DK.BLUE MC.,8L4

main75623-30350-J1i199909-200108

DK.BLUE M.M.,2FR

main75623-30350-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75623-30350-J3i200108-200312

DARK BLUE MC.,8P8

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-30350-A0i199909-200108

SUPER WHITE 2,040

main75624-30350-A1i199909-200108

WHITE PEARL CS.,062

main75624-30350-B0i199909-200108

SILVER ME.,1C0

main75624-30350-B1i199909-200108

SILVER ME.,2FQ

main75624-30350-C0i199909-200108

BLACK,202

main75624-30350-D0i199909-200108

ROSE RED MC.,3M9

main75624-30350-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75624-30350-G1i200108-200312

LT.GREEN M.M.,6S8

main75624-30350-J0i199909-200108

DK.BLUE MC.,8L4

main75624-30350-J1i199909-200108

DK.BLUE M.M.,2FR

main75624-30350-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75624-30350-J3i200108-200312

DARK BLUE MC.,8P8

75651MOULDING, QUARTER, OUTSIDE RH

main75651-30390-A0i200108-200312

SUPER WHITE 2,040

main75651-30390-A1i199909-200108

WHITE PEARL CS.,062

main75651-30390-B0i199909-200108

SILVER ME.,1C0

main75651-30390-B1i200108-200312

SILVER ME.,2FQ

main75651-30390-C0i199909-200108

BLACK,202

main75651-30390-D0i199909-200108

ROSE RED MC.,3M9

main75651-30390-G0i199909-200108

BLACKISH GREEN MC.CC,6R5

main75651-30390-G1i200108-200312

LT.GREEN M.M.,6S8

main75651-30390-J0i199909-200108

DK.BLUE MC.,8L4

main75651-30390-J1i199909-200108

DK.BLUE M.M.,2FR

main75651-30390-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75651-30390-J3i200108-200312

DARK BLUE MC.,8P8

75652MOULDING, QUARTER, OUTSIDE LH

main75652-30350-A0i199909-200108

SUPER WHITE 2,040

main75652-30350-A1i200108-200312

WHITE PEARL CS.,062

main75652-30350-B0i199909-200108

SILVER ME.,1C0

main75652-30350-B1i200108-200312

SILVER ME.,2FQ

main75652-30350-C0i199909-200108

BLACK,202

main75652-30350-D0i199909-200108

ROSE RED MC.,3M9

main75652-30350-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75652-30350-G1i200108-200312

LT.GREEN M.M.,6S8

main75652-30350-J0i199909-200108

DK.BLUE MC.,8L4

main75652-30350-J1i199909-200108

DK.BLUE M.M.,2FR

main75652-30350-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75652-30350-J3i200108-200312

DARK BLUE MC.,8P8

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-30380i199909-200108

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-30380i199909-200108

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-30260i199909-200108

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-30510-A0i199909-200108

SUPER WHITE 2,040

main75731-30510-A1i199909-200108

WHITE PEARL CS.,062

main75731-30510-B0i199909-200108

SILVER ME.,1C0

main75731-30510-B1i199909-200108

SILVER ME.,2FQ

main75731-30510-C0i199909-200108

BLACK,202

main75731-30510-D0i199909-200108

ROSE RED MC.,3M9

main75731-30510-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75731-30510-G1i200108-200312

LT.GREEN M.M.,6S8

main75731-30510-J0i199909-200108

DK.BLUE MC.,8L4

main75731-30510-J1i199909-200108

DK.BLUE M.M.,2FR

main75731-30510-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75731-30510-J3i200108-200312

DARK BLUE MC.,8P8

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-30500-A0i199909-200108

SUPER WHITE 2,040

main75732-30500-A1i199909-200108

WHITE PEARL CS.,062

main75732-30500-B0i199909-200108

SILVER ME.,1C0

main75732-30500-B1i199909-200108

SILVER ME.,2FQ

main75732-30500-C0i199909-200108

BLACK,202

main75732-30500-D0i199909-200108

ROSE RED MC.,3M9

main75732-30500-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75732-30500-G1i200108-200312

LT.GREEN M.M.,6S8

main75732-30500-J0i199909-200108

DK.BLUE MC.,8L4

main75732-30500-J1i199909-200108

DK.BLUE M.M.,2FR

main75732-30500-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75732-30500-J3i200108-200312

DARK BLUE MC.,8P8

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-30200i199909-200108

main75735-30210-A0i200108-200312

WHITE PEARL CS.,062

main75735-30210-A1i200108-200312

SUPER WHITE 2,040

main75735-30210-B0i200108-200312

SILVER ME.,1C0

main75735-30210-B1i200108-200312

SILVER ME.,2FQ

main75735-30210-C0i200108-200312

BLACK,202

main75735-30210-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75735-30210-G1i200108-200312

LT.GREEN M.M.,6S8

main75735-30210-J3i200108-200312

DARK BLUE MC.,8P8

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-30200i199909-200108

main75736-30210-A0i200108-200312

WHITE PEARL CS.,062

main75736-30210-A1i200108-200312

SUPER WHITE 2,040

main75736-30210-B0i200108-200312

SILVER ME.,1C0

main75736-30210-B1i200108-200312

SILVER ME.,2FQ

main75736-30210-C0i200108-200312

BLACK,202

main75736-30210-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75736-30210-G1i200108-200312

LT.GREEN M.M.,6S8

main75736-30210-J3i200108-200312

DARK BLUE MC.,8P8

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-30310i199909-200108

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-30540-A0i199909-200108

SUPER WHITE 2,040

main75741-30540-A1i200108-200312

WHITE PEARL CS.,062

main75741-30540-B0i200108-200312

SILVER ME.,1C0

main75741-30540-B1i199909-200108

SILVER ME.,2FQ

main75741-30540-C0i199909-200108

BLACK,202

main75741-30540-D0i199909-200108

ROSE RED MC.,3M9

main75741-30540-G0i199909-200108

BLACKISH GREEN MC.CC,6R5

main75741-30540-G1i200108-200312

LT.GREEN M.M.,6S8

main75741-30540-J0i199909-200108

DK.BLUE MC.,8L4

main75741-30540-J1i199909-200108

DK.BLUE M.M.,2FR

main75741-30540-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75741-30540-J3i200108-200312

DARK BLUE MC.,8P8

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-30500-A0i200108-200312

SUPER WHITE 2,040

main75742-30500-A1i199909-200108

WHITE PEARL CS.,062

main75742-30500-B0i199909-200108

SILVER ME.,1C0

main75742-30500-B1i199909-200108

SILVER ME.,2FQ

main75742-30500-C0i199909-200108

BLACK,202

main75742-30500-D0i199909-200108

ROSE RED MC.,3M9

main75742-30500-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75742-30500-G1i200108-200312

LT.GREEN M.M.,6S8

main75742-30500-J0i199909-200108

DK.BLUE MC.,8L4

main75742-30500-J1i199909-200108

DK.BLUE M.M.,2FR

main75742-30500-J2i199909-200108

GRAYISH BLUE ME.,8N6

main75742-30500-J3i200108-200312

DARK BLUE MC.,8P8

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-30160i199909-200108

main75745-30170-A0i200108-200312

WHITE PEARL CS.,062

main75745-30170-A1i200108-200312

SUPER WHITE 2,040

main75745-30170-B0i200108-200312

SILVER ME.,1C0

main75745-30170-B1i200108-200312

SILVER ME.,2FQ

main75745-30170-C0i200108-200312

BLACK,202

main75745-30170-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75745-30170-G1i200108-200312

LT.GREEN M.M.,6S8

main75745-30170-J3i200108-200312

DARK BLUE MC.,8P8

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-30160i199909-200108

main75746-30170-A0i200108-200312

WHITE PEARL CS.,062

main75746-30170-A1i200108-200312

SUPER WHITE 2,040

main75746-30170-B0i200108-200312

SILVER ME.,1C0

main75746-30170-B1i200108-200312

SILVER ME.,2FQ

main75746-30170-C0i200108-200312

BLACK,202

main75746-30170-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75746-30170-G1i200108-200312

LT.GREEN M.M.,6S8

main75746-30170-J3i200108-200312

DARK BLUE MC.,8P8

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-30040i199909-200007

main75753-30041i200007-200108

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-30050i199909-200007

main75754-30051i200007-200108

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30080i199909-200007

main75763-30081i200007-200108

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30080i199909-200007

main75764-30081i200007-200108

75830CMOULDING ASSY, ROCKER PANEL, FRONT RH

main75830-30030i199909-200108

main75830-30041-A0i200108-200312

WHITE PEARL CS.,062

main75830-30041-A1i200108-200312

SUPER WHITE 2,040

main75830-30041-B0i200108-200312

SILVER ME.,1C0

main75830-30041-B1i200108-200312

SILVER ME.,2FQ

main75830-30041-C0i200108-200312

BLACK,202

main75830-30041-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75830-30041-G1i200108-200312

LT.GREEN M.M.,6S8

main75830-30041-J3i200108-200312

DARK BLUE MC.,8P8

75840AMOULDING ASSY, ROCKER PANEL, FRONT LH

main75840-30030i199909-200108

main75840-30041-A0i200108-200312

WHITE PEARL CS.,062

main75840-30041-A1i200108-200312

SUPER WHITE 2,040

main75840-30041-B0i200108-200312

SILVER ME.,1C0

main75840-30041-B1i200108-200312

SILVER ME.,2FQ

main75840-30041-C0i200108-200312

BLACK,202

main75840-30041-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75840-30041-G1i200108-200312

LT.GREEN M.M.,6S8

main75840-30041-J3i200108-200312

DARK BLUE MC.,8P8

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-30270i199909-200108

main75850-30281-A0i200108-200312

WHITE PEARL CS.,062

main75850-30281-A1i200108-200312

SUPER WHITE 2,040

main75850-30281-B0i200108-200312

SILVER ME.,1C0

main75850-30281-B1i200108-200312

SILVER ME.,2FQ

main75850-30281-C0i200108-200312

BLACK,202

main75850-30281-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75850-30281-G1i200108-200312

LT.GREEN M.M.,6S8

main75850-30281-J3i200108-200312

DARK BLUE MC.,8P8

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-30260i199909-200108

main75860-30271-A0i200108-200312

WHITE PEARL CS.,062

main75860-30271-A1i200108-200312

SUPER WHITE 2,040

main75860-30271-B0i200108-200312

SILVER ME.,1C0

main75860-30271-B1i200108-200312

SILVER ME.,2FQ

main75860-30271-C0i200108-200312

BLACK,202

main75860-30271-G0i200108-200312

BLACKISH GREEN MC.CC,6R5

main75860-30271-G1i200108-200312

LT.GREEN M.M.,6S8

main75860-30271-J3i200108-200312

DARK BLUE MC.,8P8

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-30120×4i199909-200108

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-30100×2i199909-200108

75867ACLIP, ROCKER PANEL MOULDING

main75867-30110×16i199909-200108

main75867-30120×16i200310-200312

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-30310i199909-200108

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-30310i199909-200108

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-30310i199909-200108

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-30310i199909-200108

9015960364

main90159-60364

9016240034

main90162-40034

9016440096

main90164-40096

9018904059

main90189-04059

9018904207

main90189-04207

9018906006

main90189-06006

9018906018

main90189-06018

9026904051

main90269-04051

9046709185

main90467-09185

53 parts on this diagram · 1 diagram in section

SIDE MOULDING for Toyota CROWN

This section contains 53 genuine Toyota parts for the SIDE MOULDING system of the Toyota CROWN. Key components include: SHIELD, REAR FLOOR HOUSING, SHIELD, REAR FLOOR HOUSING, NO.2, CLIP, DOOR BELT MOULDING, CLIP, DOOR GLASS WEATHERSTRIP, OUTER, RETAINER, OUTSIDE MOULDING, NO.1.
