Toyota CROWN — SIDE MOULDING
68211ACLIP, DOOR BELT MOULDING
TYPE A
TYPE B
75055CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR RH
75056CMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, REAR LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
main75623-30270-01iMS132,135..ROY..GEN; MS135..SED..GCC;GS131,MS132,133..SED..(DLX,SAL)198910-199110
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869; BLACK M,182 ,202 ,3E6 ,8G2 ,869
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
BLACK M,182 ,202 ,3E6 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
main75624-30270-01iMS132,135..ROY..GEN; MS135..SED..GCC;GS131,MS132,133..SED..(DLX,SAL)198910-199110
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869; BLACK M,182 ,202 ,3E6 ,8G2 ,869
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
75655BMOULDING, QUARTER PANEL, LOWER FRONT RH
75656BMOULDING, QUARTER PANEL, LOWER FRONT LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-30370-01iMS132,135..ROY..GEN; MS135..SED..GCC;GS131,MS132,133..SED..(DLX,SAL)198910-199110
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869; BLACK M,182 ,202 ,3E6 ,8G2 ,869
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
75732AMOULDING, FRONT DOOR, OUTSIDE LH
BLACK M,182 ,202 ,3E6 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
main75732-30360-01iMS132,135..ROY..GEN; MS135..SED..GCC;GS131,MS132,133..SED..(DLX,SAL)198910-199110
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869; BLACK M,182 ,202 ,3E6 ,8G2 ,869
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
BLACK M,182 ,202 ,3E6 ,3H3 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
BLACK M,202 ,3E6
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
75742MOULDING, REAR DOOR, OUTSIDE LH
BLACK M,182 ,202 ,3E6 ,8G2 ,869
SUPER SILVER 3 M,050
MEDIUM BROWN M,4H6
DARK GRAY M,166
BLACK M,182 ,202 ,3E6 ,8G2 ,869
DARK GRAY M,166
MEDIUM BROWN M,4H6
SUPER SILVER 3 M,050
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
W(STEEL BUMPER)
W(URETHANE BUMPER)
W(STEEL BUMPER)
main75850-30150iMS132..DLX,SAL;MS135..SED..GCC;GS131,LS130,MS133,YS132..SAL,STD; MS132..STD198908-199110
W(URETHANE BUMPER)
75851AMOULDING, ROCKER PANEL, FRONT RH
75852AMOULDING, ROCKER PANEL, FRONT LH
75855AMOULDING, ROCKER PANEL, REAR RH
75856AMOULDING, ROCKER PANEL, REAR LH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
W(STEEL BUMPER)
W(URETHANE BUMPER)
W(STEEL BUMPER)
main75860-30140iMS132..DLX,SAL;MS135..SED..GCC;GS131,LS130,MS133,YS132..SAL,STD; MS132..STD198908-199110
W(URETHANE BUMPER)
75867ACLIP, ROCKER PANEL MOULDING
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
main75871-39075iGS131,MS135..GEN;MS132,133..(4FC,5F)..(ROY,STD); MS135..SED..GCC;MS132,133..SED..SAL198709-199110
W(COLOR MUD GUARD)
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
main75872-39075iGS131,MS135..GEN;MS132,133..(4FC,5F)..(ROY,STD); MS135..SED..GCC;MS132,133..SED..SAL198709-199110
W(COLOR MUD GUARD)
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
main75873-39085iGS131,MS135..GEN;MS132,133..(4FC,5F)..(ROY,STD); MS135..SED..GCC;MS132,133..SED..SAL198709-199110
W(COLOR MUD GUARD)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
main75874-39085iGS131,MS135..GEN;MS132,133..(4FC,5F)..(ROY,STD); MS135..SED..GCC;MS132,133..SED..SAL198709-199110
W(COLOR MUD GUARD)
9016440034
main90164-40034
9016440066
main90164-40066
9016840088
main90168-40088
9017605004
main90176-05004
9017905020
main90179-05020
9018904090
main90189-04090
9018904095
main90189-04095
9018904124
main90189-04124
9018904146
main90189-04146
9019904095
main90199-04095
9056204137
main90562-04137
9354054008
main93540-54008

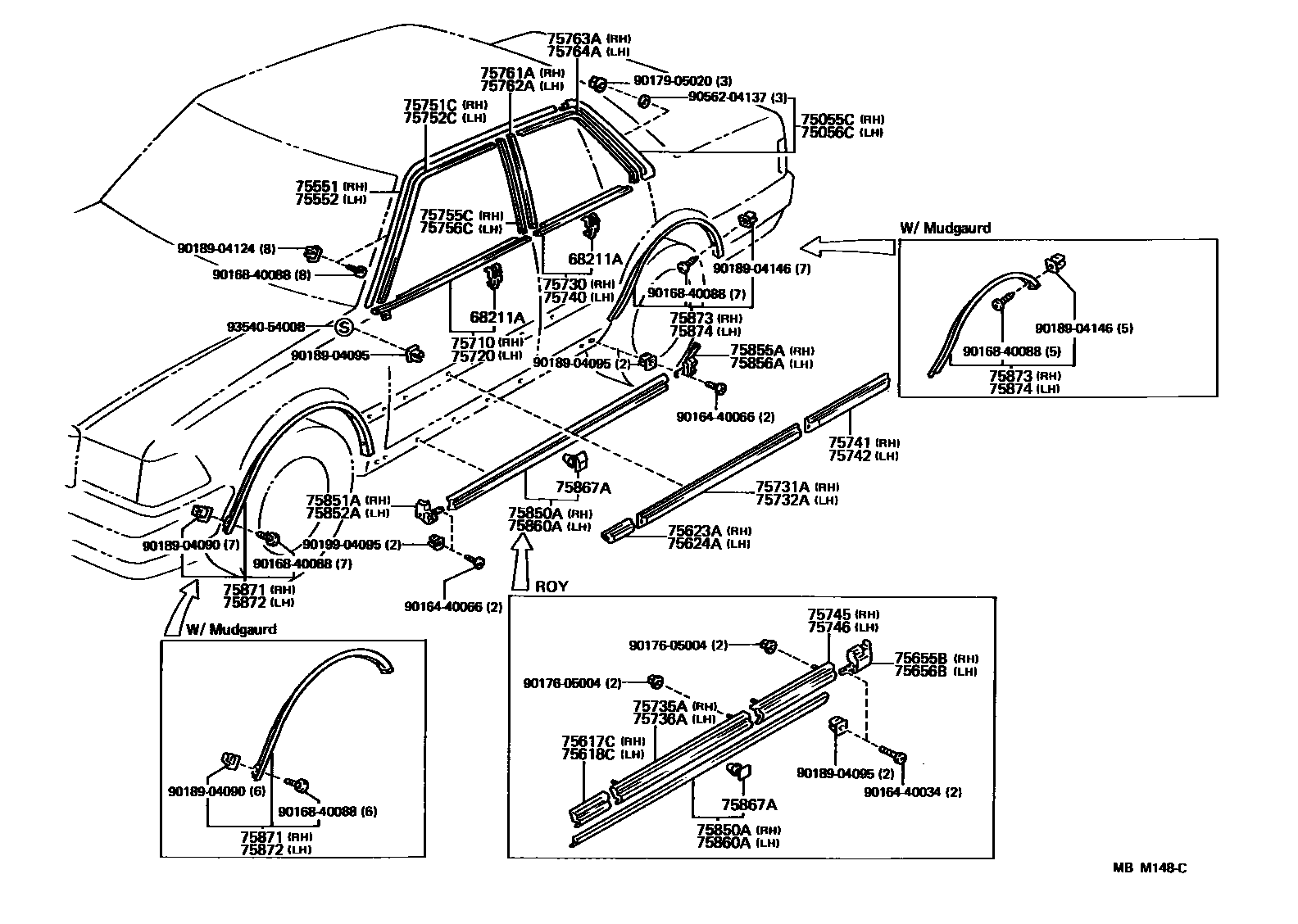

54 parts on this diagram · 6 diagrams in section
SIDE MOULDING for Toyota CROWN
This section contains 83 genuine Toyota parts for the SIDE MOULDING system of the Toyota CROWN. Key components include: RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH, RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH, CLIP, DOOR BELT MOULDING, CLIP SUB-ASSY, OUTSIDE MOULDING, NO.1, CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2.
