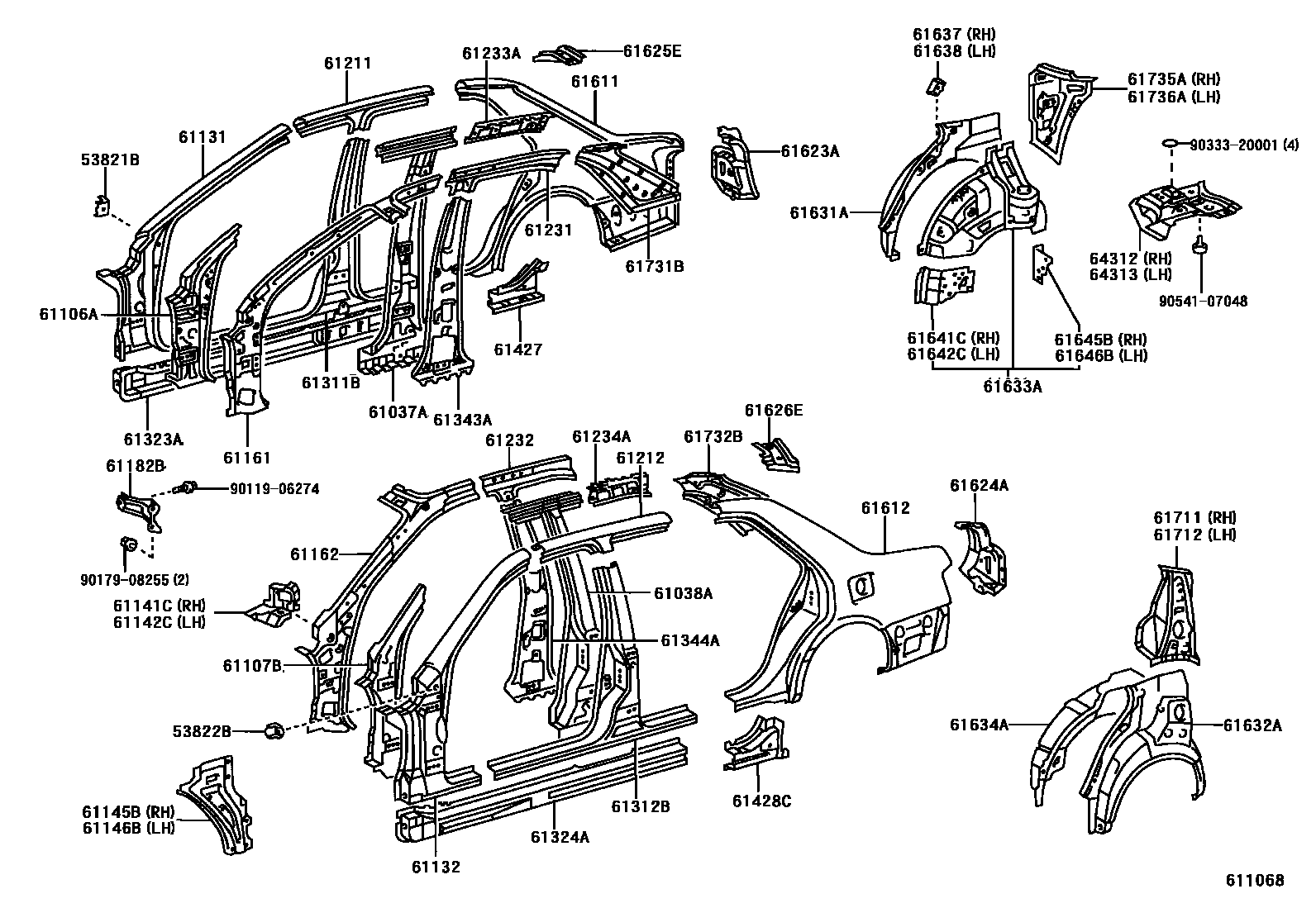

Toyota CROWN — SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61623AEXTENSION, QUARTER PANEL, OUTER RH
61624AEXTENSION, QUARTER PANEL, OUTER LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637BRACE, QUARTER WHEEL HOUSE, RH
61638BRACE, QUARTER WHEEL HOUSE, LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
64312BRACKET, PACKAGE TRAY, RH
W(REAR AIR CONDITIONER)
W(REAR AIR CONDITIONER & REAR POWER SEAT)
W(REAR POWER SEAT)
64313BRACKET, PACKAGE TRAY, LH
W(REAR AIR CONDITIONER)
W(REAR AIR CONDITIONER & REAR POWER SEAT)
W(REAR POWER SEAT)
9011906274
main90119-06274
9017908255
main90179-08255
9033320001
main90333-20001
9054107048
main90541-07048
57 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota CROWN
This section contains 71 genuine Toyota parts for the SIDE MEMBER system of the Toyota CROWN. Key components include: BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH.
