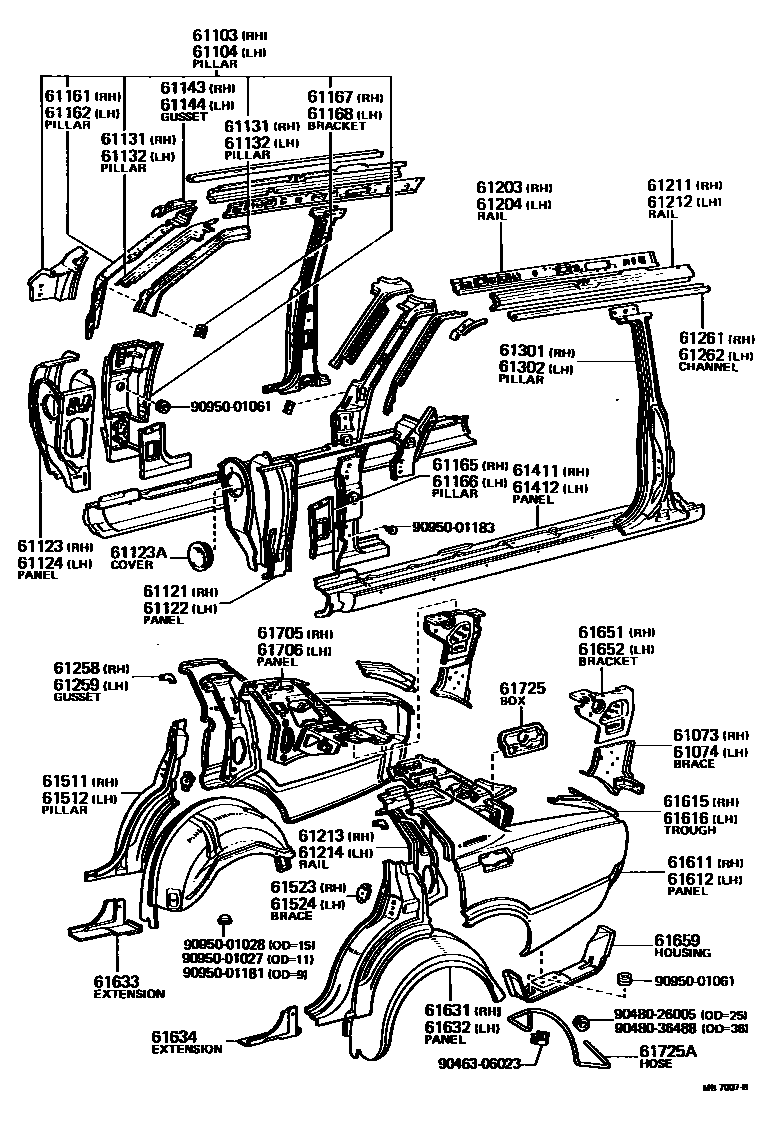

Toyota CROWN — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61073BRACE SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61073-30010iMS85,95,RS80197410-197908

61074BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH

main61074-30010iMS85,95,RS80197410-197908

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-30040iMS8#,RS80197410-197908

main61021-30060iMS95197410-197908

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-30040iMS8#,RS80197410-197908

main61022-30060iMS95197410-197908

61121PANEL, COWL SIDE, OUTER RH

main61121-30070iMS8#,95,RS80197410-197908

61122PANEL, COWL SIDE, OUTER LH

main61122-30080iMS8#,95,RS80197410-197908

61123PANEL, COWL SIDE LOWER, RH

main61041-30010iMS8#,95,RS80..RHD197410-197908

main61041-30020iMS8#,95,RS80..LHD197410-197908

61123ACOVER(FOR COWL SIDE LOWER PANEL)

main55077-30010iMS85,88,RS80..BTP,STD197410-197802

61124PANEL, COWL SIDE LOWER, LH

main61042-30010iMS8#,95,RS80..RHD197410-197908

main61042-30020iMS8#,95,RS80..LHD197410-197908

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-30080iMS8#,RS80197410-197908

OUTER

main61131-30090iMS95197410-197908

OUTER

main61147-30010iMS8#,RS80197410-197908

INNER

main61147-30020iMS95197410-197908

INNER

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-30100iMS8#,RS80197410-197908

OUTER

main61132-30110iMS95197410-197908

OUTER

main61148-30010iMS8#,RS80197410-197908

INNER

main61148-30020iMS95197410-197908

INNER

61143GUSSET, FRONT PILLAR DOOR OPENING, UPPER RH

main61143-30010iMS8#,RS80197410-197507

main61143-30020iMS95197410-197509

61144GUSSET, FRONT PILLAR DOOR OPENING, UPPER LH

main61144-30010iMS8#,RS80197410-197507

main61144-30020iMS95197410-197509

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-30070iMS8#,RS80197410-197908

main61161-30080iMS95197410-197908

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-30080iMS8#,RS80197410-197908

main61162-30090iMS95197410-197908

61165PILLAR, FRONT BODY LOWER INNER, RH

main61163-30040iMS8#,95,RS80197410-197908

61166PILLAR, FRONT BODY LOWER INNER, LH

main61164-30040iMS8#,95,RS80197410-197908

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61183-30010iMS8#,95,RS80197410-197908

sub61183-30020

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61183-30010iMS8#,95,RS80197410-197908

sub61183-30020

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-30060iMS85,RS80..BTP,DLX197611-197908

main61203-30070iMS85,RS80197410-197611

main61231-30070iMS95..2D197410-197908

main61231-30080iMS95..4D197412-197908

main61231-91701iMS83,88197501-197908

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-30060iMS85,RS80..BTP,DLX197611-197908

main61204-30070iMS85,RS80197410-197611

main61232-30070iMS95..2D197410-197908

main61232-30080iMS95..4D197412-197908

main61232-91701iMS83,88197501-197908

61211RAIL, ROOF SIDE, OUTER RH

main61211-30060iMS85,RS80197410-197908

main61211-30070iMS95..2D197410-197908

main61211-30080iMS95..4D197412-197908

main61211-91701iMS83,88197501-197908

61212RAIL, ROOF SIDE, OUTER LH

main61212-30060iMS85,RS80197410-197908

main61212-30070iMS95..2D197410-197908

main61212-30080iMS95..4D197412-197908

main61212-91701iMS83,88197501-197908

61213RAIL, ROOF SIDE, OUTER REAR RH

main61215-30010iMS85,RS80197410-197908

main61215-30030iMS95..4D197412-197908

61214RAIL, ROOF SIDE, OUTER REAR LH

main61216-30010iMS85,RS80197410-197908

main61216-30030iMS95..4D197412-197908

61258GUSSET, ROOF SIDE RAIL UPPER CORNER, RH

main61241-30010iMS85,RS80197410-197507

61259GUSSET, ROOF SIDE RAIL UPPER CORNER, LH

main61241-30010iMS85,RS80197410-197507

61261CHANNEL, ROOF DRIP, RH

main61261-30060iMS85,RS80197410-197908

main61261-30070iMS95..2D197410-197908

main61261-91701iMS83,88197501-197908

main61263-30050iMS95..4D197412-197908

FRONT

main61267-30030iMS95..4D197412-197908

REAR

61262CHANNEL, ROOF DRIP, LH

main61262-30060iMS85,RS80197410-197908

main61262-30070iMS95..2D197410-197908

main61262-91701iMS83,88197501-197908

main61264-30040iMS95..4D197412-197908

FRONT

main61268-30020iMS95..4D197412-197908

REAR

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61007-30902iMS8#,RS80197410-197611

main61007-30903iMS95..4D197412-197611

main61007-30905iMS8#,RS80197611-197908

main61007-30908iMS95..4D197611-197908

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61008-30902iMS8#,RS80197410-197611

main61008-30903iMS95..4D197412-197611

main61008-30905iMS8#,RS80197611-197908

sub61008-30908

main61008-30907iMS95..4D197611-197908

61411PANEL, ROCKER, OUTER RH

main61401-30040iMS95..2D197410-197908

main61401-30050iMS8#,95,RS80..4D197508-197908

main61411-30090iMS8#,95,RS80..4D197410-197508

61412PANEL, ROCKER, OUTER LH

main61402-30040iMS95..2D197410-197908

main61402-30050iMS8#,95,RS80..4D197508-197908

main61412-30090iMS8#,95,RS80..4D197410-197508

61511PILLAR, QUARTER LOCK, RH

main61511-30090iMS8#,RS80197410-197908

main61511-30110iMS95..4D197412-197908

61512PILLAR, QUARTER LOCK, LH

main61512-30090iMS8#,RS80197410-197908

main61512-30110iMS95..4D197412-197908

61523BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, RH

main61503-30230iMS8#,95,RS80..4D197410-197908

61524BRACE, QUARTER LOCK PILLAR TO ROCKER PANEL, LH

main61503-30230iMS8#,95,RS80..4D197410-197908

61611PANEL, QUARTER, RH

main61611-30340iMS85,RS80197410-197908

main61611-30350iMS95..2D197410-197908

main61611-30370iMS95..4D197412-197802

main61611-30371iMS95..4D197802-197908

main61611-91702iMS83,88197501-197908

61612PANEL, QUARTER, LH

main61612-30450iMS85,RS80197410-197908

main61612-30460iMS95..2D197410-197908

main61612-30480iMS95..4D197412-197802

main61612-30481iMS95..4D197802-197908

main61612-91702iMS83,88197501-197908

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30030iMS85,RS80197410-197908

main61621-30040iMS95197410-197908

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30020iMS85,RS80197410-197908

main61622-30030iMS95197410-197908

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-30905iMS85,95,RS80197410-197908

sub61603-30908

main61603-91701iMS83197501-197908

main61603-91702iMS88197501-197908

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-30905iMS85,95,RS80197410-197908

sub61604-30908

main61604-91701iMS83197501-197908

main61604-91702iMS88197501-197908

61633EXTENSION, WHEEL HOUSE, RH

main61797-30010iMS85,95,RS80..4D197410-197908

61634EXTENSION, WHEEL HOUSE, LH

main61798-30010iMS85,95,RS80..4D197410-197908

61651BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

61652BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

61659HOUSING, SPARE WHEEL

main61627-30040iMS85,95,RS80197410-197601

sub58794-30011

main61627-30041iMS85,95,RS80197601-197908

main61627-91701iMS83197501-197908

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-30010iMS85,RS80..BTP,DLX,SAL197410-197802

main61705-30011iMS85,RS80..BTP,DLX,SAL197802-197908

main61705-30020iMS85..ROY197511-197802

main61705-30021iMS85..ROY197802-197908

main61705-30050iMS95..2D197410-197611

main61705-30051iMS95..2D197611-197908

main61705-30060iMS95..4D197412-197611

main61705-30061iMS95..4D197611-197908

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-30010iMS85,RS80..BTP,DLX,SAL197410-197802

main61706-30011iMS85,RS80..BTP,DLX,SAL197802-197908

main61706-30020iMS85..ROY197511-197802

main61706-30021iMS85..ROY197802-197908

main61706-30050iMS95..2D197410-197611

main61706-30051iMS95..2D197611-197908

main61706-30060iMS95..4D197412-197611

main61706-30061iMS95..4D197611-197908

61725BOX, FUEL INLET

main61725-30010iMS85,RS80197410-197802

main61725-30011iMS85,RS80..BTP,DLX197802-197908

main61725-30030iMS95..2D197410-197802

main61725-30040iMS95..4D197412-197802

main61725-30050iMS85..ROY,SAL197802-197908

main61725-30060iMS95..2D197802-197908

main61725-30070iMS95..4D197802-197908

main61725-91701iMS83,88197501-197908

61725AHOSE(FOR FUEL INLET BOX)

main90446-07345iMS85,95,RS80197410-197908

L=850

9046306023

main90463-06023

9048026005

main90480-26005

9048036488

main90480-36488

9095001027

main90950-01027

9095001028

main90950-01028

9095001061

main90950-01061

9095001181

main90950-01181

9095001183

main90950-01183

60 parts on this diagram · 4 diagrams in section
