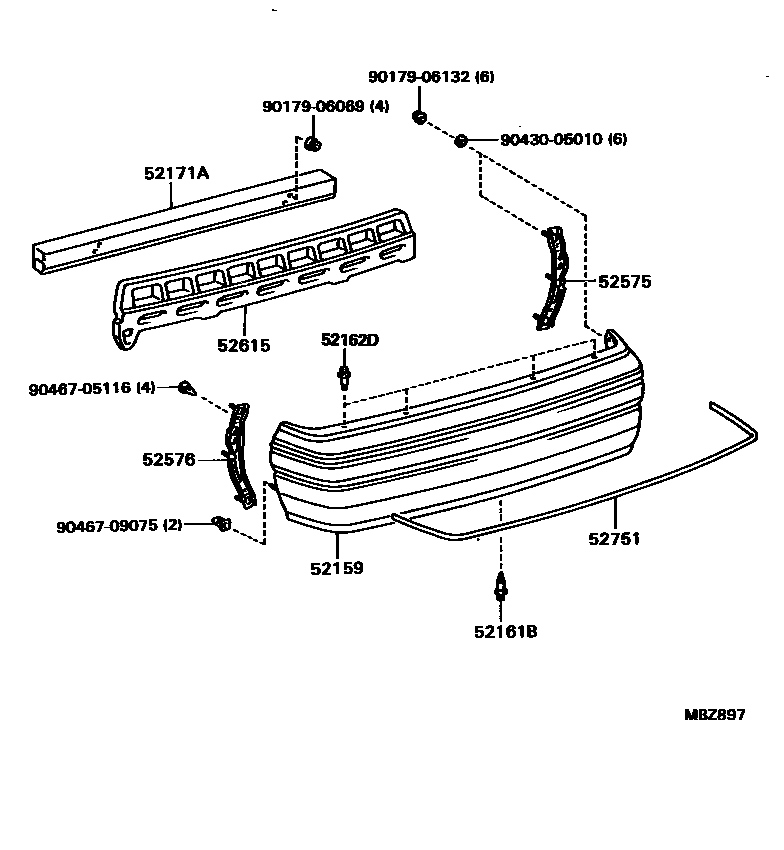

Toyota CROWN — REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SUPER WHITE 2,040
SILVER ME,199
DK.GRAY ME.,1A8
SILVER ME.,1C0
BLACK,202
DK.BLUE MC.,8L4
GRAYISH BLUE ME.,8N6
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
WHITE,040 ,051 ,2BK
BLACK,1A8 ,199 ,202; BLACK,1A8 ,199 ,2EA ,202
52171AREINFORCEMENT, REAR BUMPER, NO.1
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
9017906069
main90179-06069
9017906132
main90179-06132
9043005010
main90430-05010
9046705116
main90467-05116
9046709075
main90467-09075
13 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota CROWN
This section contains 13 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CROWN. Key components include: COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.1, RETAINER, REAR BUMPER SIDE, RH.
