Toyota CROWN — PARTIAL ENGINE ASSEMBLY

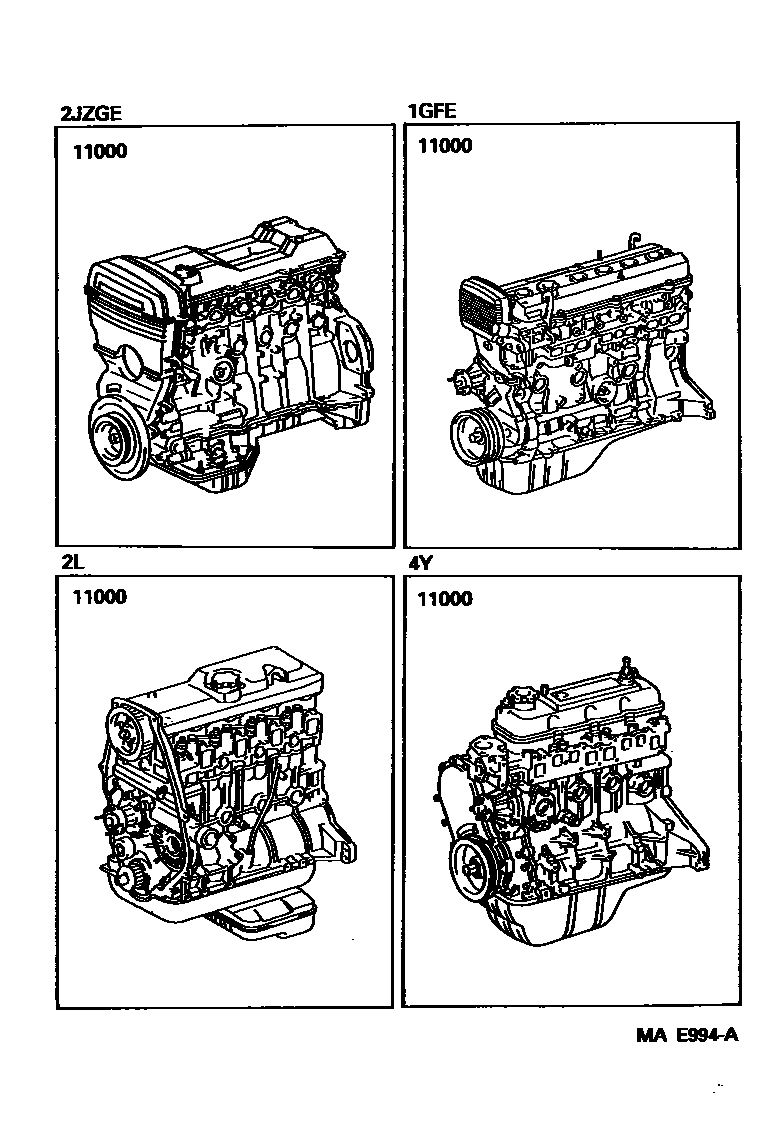

11000ENGINE ASSY, PARTIAL

main19000-46050i2JZGE..JZS133..EECC199110-199210

sub87245-3A860

main19000-46051i2JZGE..JZS133..EECC;2JZGE..JZS133..5F..Q199212-199308

sub19000-46053

sub90402-16015

sub90430-16012

main19000-46070i2JZGE..JZS133..GCC,GEN199110-199208

main19000-46071i2JZGE..JZS133..GCC,GEN199208-199210

sub87245-3A860

sub87245-3A870

main19000-46072i2JZGE..JZS133..LHD..5F;2JZGE..JZS133..4FC..(GCC,GEN)199212-199301

main19000-46073i2JZGE..JZS133..LHD..5F..Q;2JZGE..JZS133..5F..(D,G,J);2JZGE..JZS133..4FC..(GCC,GEN)199301-199604

main19000-46075i2JZGE..JZS133199604-199605

main19000-46076i2JZGE..JZS133199605-199709

sub90402-16015

sub90430-16012

main19000-46077i2JZGE..JZS133199709-199711

main19000-54890i2L..LS130199110-199512

main19000-70242i1GFE..GS131199110-199805

main19000-70243i1GFE..GS131199805

main19000-73790i4Y..YS132199110-199303

main19000-73791i4Y..YS132199303-199512

1 parts on this diagram · 1 diagram in section
