Toyota CROWN — PARTIAL ENGINE ASSEMBLY

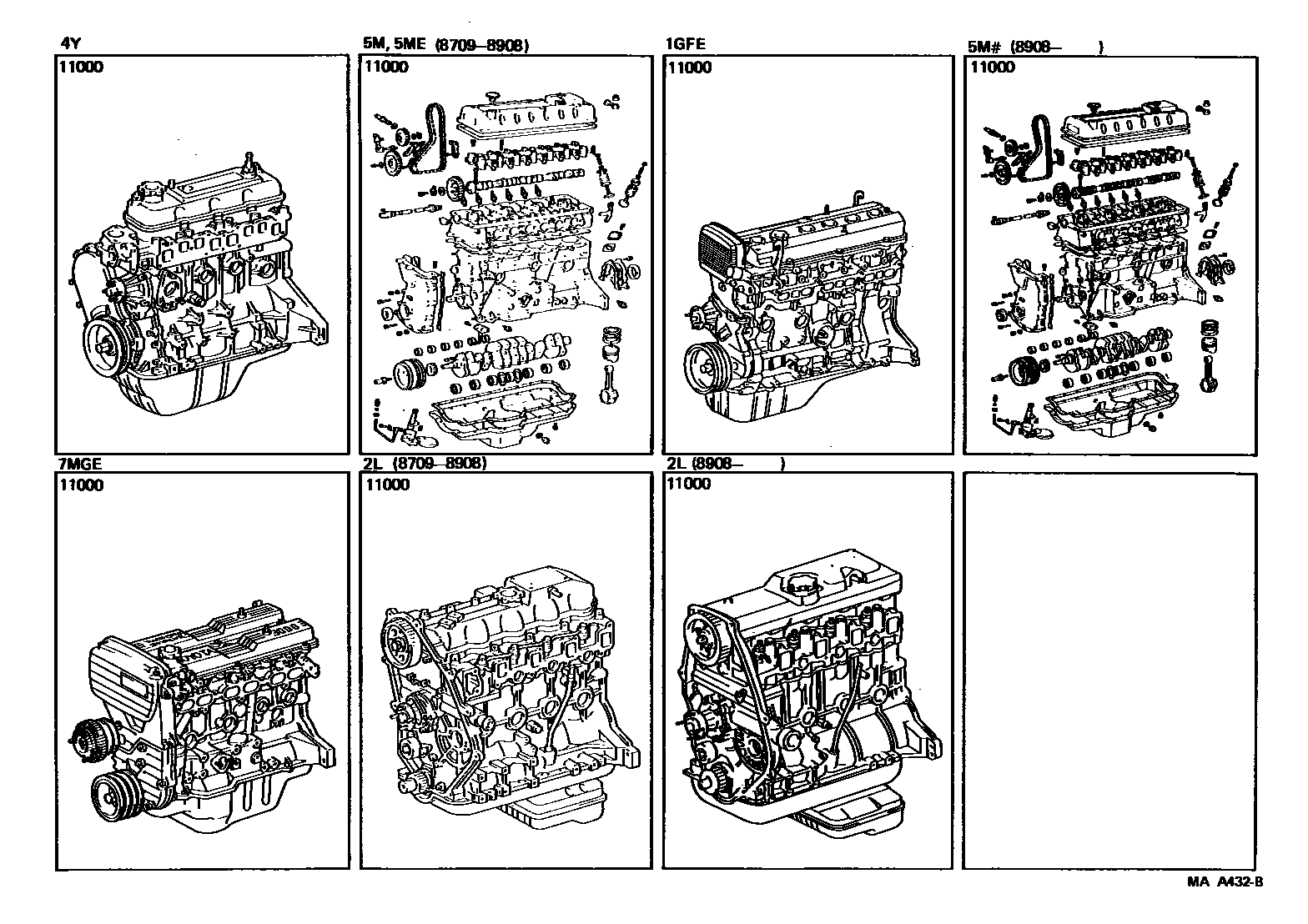

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-42170i198709-198903
main19000-42171i198903-198908
main19000-42330i198908-199110
main19000-43450i198709-199110
main19000-43460i198709-199110
main19000-54650i198709-198805
sub13405-54060
sub32101-30052
sub32116-35010
sub32117-35010
sub90105-12014
sub90105-12109
main19000-54660i198709-198805
SINGAPORE SPEC
sub13405-54060
sub90105-12109
main19000-54661i198805-198807
main19000-54662i198807-198908
main19000-54890i198908-199110
main19000-70240i198812-199005
sub17303-70051
main19000-70241i199005-199105
main19000-70242i199105-199110
sub19000-70243
main19000-73550i198709-199110

1 parts on this diagram · 1 diagram in section
