Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

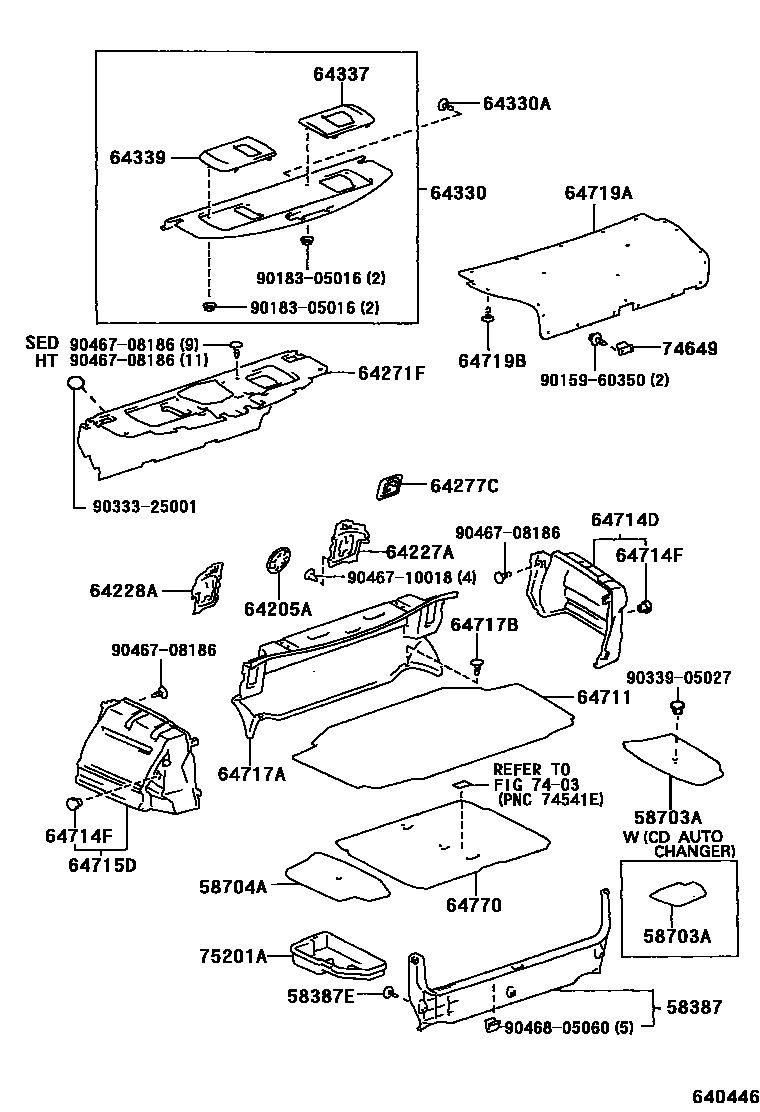

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-30080-C0i199707-199909
BLACK,TRIM1#,4#
main58387-30100-C0i199512-200108
BLACK,TRIM1#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-08188×5i199512
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-30130i199707
main58703-30150i199909
main58703-30160i199707
W(CD AUTO CHANGER)
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-30090i199707
main58704-30100i199512
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-22020i199512
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
main64227-30060i199512
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
main64228-30040i199512
64271FTRIM, ROOM PARTITION
main64271-30180i199707-199909
main64271-30200i199512-200108
64277CCOVER, ROOM PARTITION, NO.2
main64277-30010i199512
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-3A240-B2i199707-199909
W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main64330-3A240-E1i199707-199909
W(REAR AIR CONDITIONER),QUARTZ,TRIM4#
main64330-3A250-B2i199707-199909
BLUE GRAY,TRIM1#
main64330-3A250-E1i199707-199909
QUARTZ,TRIM4#
main64330-3A320-B1i199512-200108
BLUE GRAY,TRIM1#; W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main64330-3A320-E1i199512-200108
QUARTZ,TRIM4#; W(REAR AIR CONDITIONER),QUARTZ,TRIM4#
main64330-3A330-B1i199512-200108
BLUE GRAY,TRIM1#
main64330-3A330-E1i199512-200108
QUARTZ,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-05020-01×4i199707-200108
BLACK,TRIM1#,4#
main90467-05020-22×4i199512-199707
GRAPHITE,TRIM1#,4#
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-30150-B0i199512-200108
BLUE GRAY,TRIM1#
main64337-30150-E0i199512-200108
QUARTZ,TRIM4#
64339GARNISH, PACKAGE TRAY TRIM, LH
main64339-30080-B0i199512-200108
BLUE GRAY,TRIM1#
main64339-30080-E0i199512-200108
QUARTZ,TRIM4#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-30420-C0i199707-199909
BLACK,TRIM1#,4#
main64711-30460-C0i199512-199909
BLACK,TRIM1#,4#
main64711-30470-C0i199512-199707
W(CD AUTO CHANGER),BLACK,TRIM1#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64071-30070-C0i199707-200108
W(CD AUTO CHANGER),BLACK,TRIM1#,4#
main64714-30260-C0i199707-199909
BLACK,TRIM1#,4#
main64714-30300-C0i199512-199909
BLACK,TRIM1#,4#
64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)
main90950-01846×4i199512-199909
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-30210-C0i199707-199909
BLACK,TRIM1#,4#
main64715-30230-C0i199512-200108
BLACK,TRIM1#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-30270-C0i199707-199909
BLACK,TRIM1#,4#
main64717-30290-C0i199512-200108
BLACK,TRIM1#,4#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-08186×2i199512-200108
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-30090-C0i199707-199909
BLACK,TRIM1#,4#
main64719-30110-C0i199512-200108
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-08186×23i199707-199909
64770COVER ASSY, SPARE WHEEL
main64770-30120i199512
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
main74649-30010i199512-200108
75201ABOX, TOOL
main75201-30010i199512
9015960350
main90159-60350
9018305016
main90183-05016
9033325001
main90333-25001
9033905027
main90339-05027
9046708186
main90467-08186
9046710018
main90467-10018
9046805060
main90468-05060

32 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN

This section contains 32 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, COVER SUB-ASSY, ROOM PARTITION.
