Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

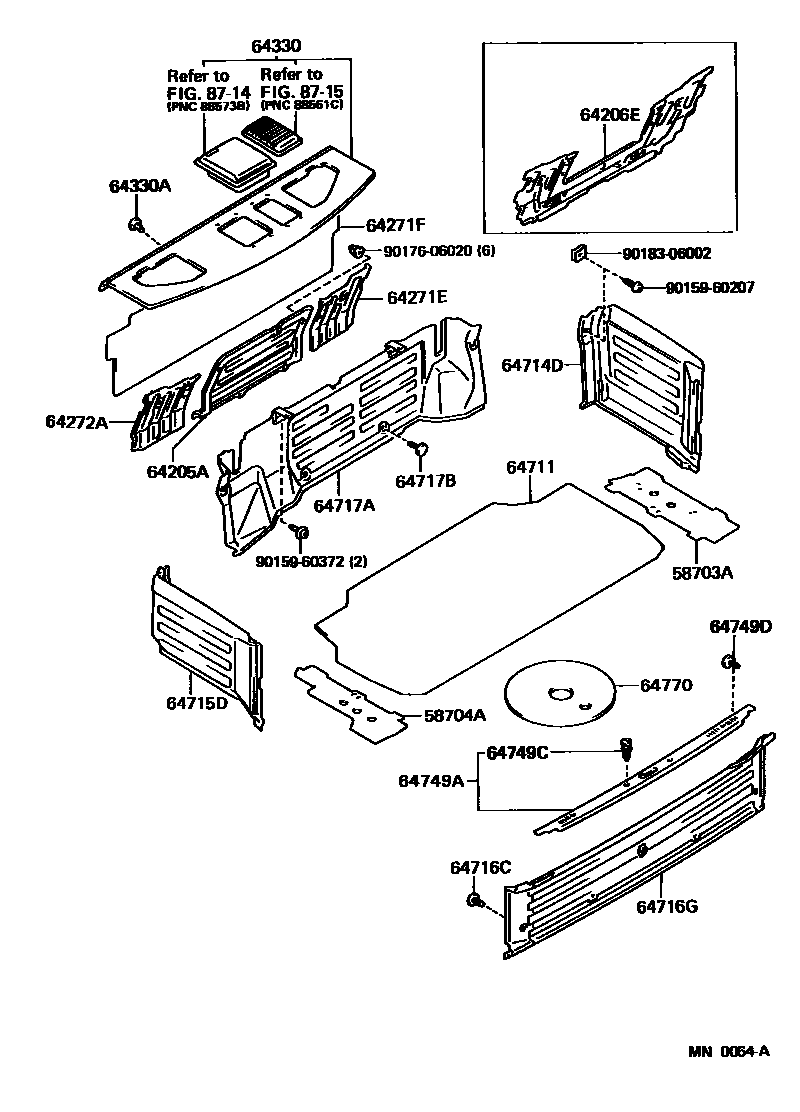

Parts diagram
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-30030i198807-199110
main58703-30040i198807-199110
THAILAND SPEC
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-30060i198709-199110
64205ACOVER SUB-ASSY, ROOM PARTITION
main64205-30020i198709-199110
main64205-30030i198709-199110
64206EPANEL SUB-ASSY, ROOM PARTITION
main64206-30010i199101-199110
main64206-30020i198709-199110
W(REAR POWER SEAT)
64271EPANEL, ROOM PARTITION
main64271-30130i198709-199110
64271FTRIM, ROOM PARTITION
main64271-30120i198709-199110
64272APANEL, ROOM PARTITION, LH
main64272-30030i198709-199110
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-30670-02i198709-198908
MAROON,TRIM3#
main64330-30670-04i198709-199110
BLUE,TRIM8#
main64330-30670-06i198709-199110
SABLE,TRIM4#
main64330-30680-02i198908-199110
MAROON,TRIM3#
main64330-30680-04i198908-199110
BLUE,TRIM8#
main64330-30680-06i198709-199110
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
main64330-30700-02i198709-199110
MAROON,TRIM3#
main64330-30700-04i198709-199110
BLUE,TRIM8#
main64330-30700-06i198709-199110
SABLE,TRIM4#
main64330-30710-02i199101-199110
MAROON,TRIM3#
main64330-30730-02i198709-199008
W(MOON ROOF & DUAL AIR CONDITIONER),MAROON,TRIM3#
main64330-30730-04i198709-199008
W(MOON ROOF & DUAL AIR CONDITIONER),BLUE,TRIM8#
main64330-30730-06i198709-199008
W(MOON ROOF & DUAL AIR CONDITIONER),SABLE,TRIM4#
main64330-30750-02i198709-198908
W(MOON ROOF),MAROON,TRIM3#
main64330-30750-04i198709-198908
W(MOON ROOF),BLUE,TRIM8#
main64330-30750-06i198709-198908
W(MOON ROOF),SABLE,TRIM4#
main64330-30760-02i198709-199008
MAROON,TRIM3#
main64330-30760-04i198709-199008
BLUE,TRIM8#
main64330-30760-06i198709-199008
SABLE,TRIM4#
main64330-30770-02i198709-199008
W(DUAL AIR CONDITIONER),MAROON,TRIM3#
main64330-30770-04i198709-199008
W(DUAL AIR CONDITIONER),BLUE,TRIM8#
main64330-30770-06i198709-199008
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
main64330-30790-02i198709-198908
MAROON,TRIM3#
main64330-30790-04i198709-198908
BLUE,TRIM8#
main64330-30790-06i198709-198908
SABLE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08015-12×3i199101-199110
MAROON,TRIM3#
main90467-08015-46×3i198709-199110
SABLE,TRIM4#
main90467-08015-54×3i198709-199110
BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-30260-03i198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#
main64711-30261-03i198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
main64711-30270-03i198709-198908
GRAY,TRIM3#; GRAY,TRIM3#,4#,8#
main64711-30271-03i198908-199110
GRAY,TRIM3#; GRAY,TRIM3#,4#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-30100-03i198709-199110
GRAY,TRIM3#
main64714-30110-03i198709-199110
GRAY,TRIM3#,4#,8#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-30110-03i198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
main64715-30120-03i198709-199110
GRAY,TRIM3#,4#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05004-33×5i198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-30100-03i198908-199110
GRAY,TRIM3#,8#; GRAY,TRIM8#
main64716-30110-03i198709-199110
GRAY,TRIM3#; GRAY,TRIM3#,4#,8#
main64716-30130-03i198709-199110
GRAY,TRIM3#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-30120-03i198908-199110
GRAY,TRIM3#,8#; GRAY,TRIM8#
main64717-30130-03i198709-199110
GRAY,TRIM3#; GRAY,TRIM3#,4#,8#
main64717-30150-03i198709-199110
GRAY,TRIM3#,4#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-07080-03×4i198908-199110
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#; GRAY,TRIM8#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-30050-03i198709-198908
GRAY,TRIM3#,4#,8#; GRAY,TRIM3#,8#
main64749-30060-03i198709-199110
GRAY,TRIM3#,4#,8#
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
main90467-06059×4i198808-199110
64749DCLIP(FOR LUGGAGE COMPARTMENT DOOR STRIKER COVER)
main90467-07043-43×2i198709-199110
GRAY,TRIM3#,4#,8#
64770COVER ASSY, SPARE WHEEL
main64770-30050i198709-199110
8714HEATING & AIR CONDITIONING - COOLER UNIT
→ Go to FIG 87-14
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9015960207
main90159-60207
9015960372
main90159-60372
9017606020
main90176-06020
9018306002
main90183-06002

26 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN

This section contains 26 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH, COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH, COVER SUB-ASSY, ROOM PARTITION, PANEL SUB-ASSY, ROOM PARTITION, PANEL, ROOM PARTITION.
