Toyota CROWN — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

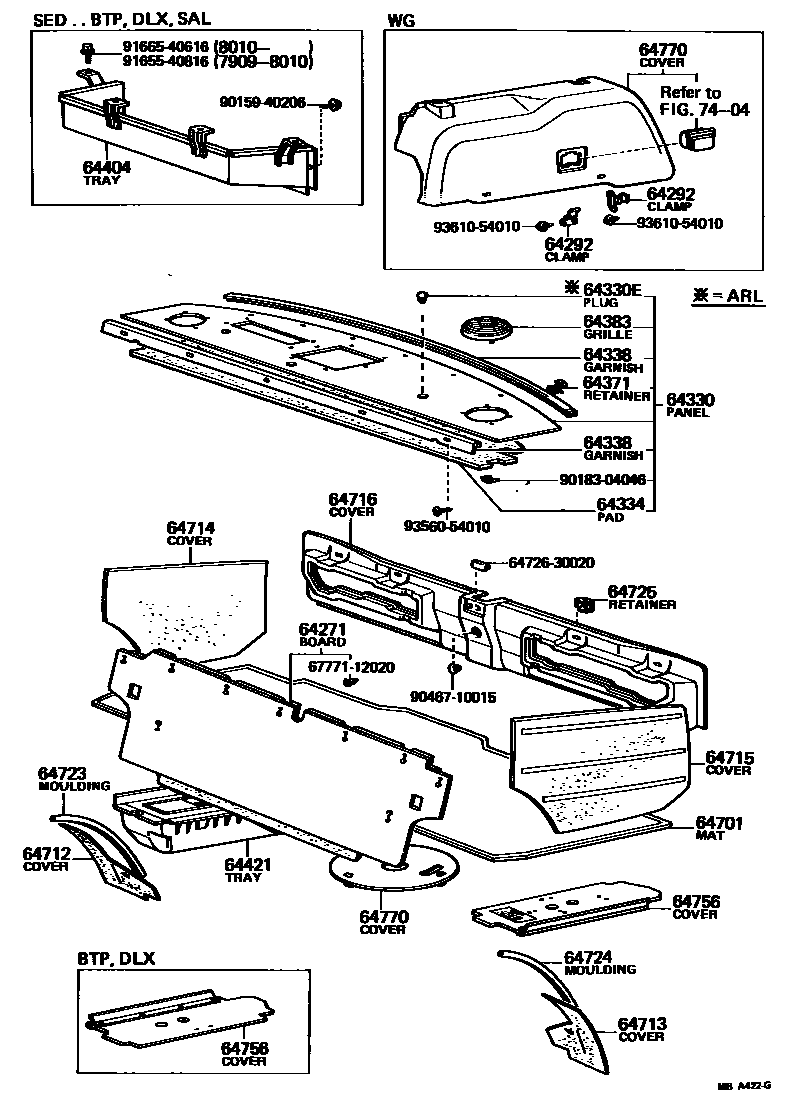

Parts diagram
64271BOARD, ROOM PARTITION, NO.1
main64270-30040i197909-198307
64292CLAMP, JACK HANDLE
main64761-91701×2i197909-198307
FR
main64762-91701i197909-198307
RR
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-30360-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30360-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30361-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30361-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30370-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30370-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30380-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30380-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30380-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30390-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30390-04i197909-198108
BLUE,BLUE,TRIM8#
main64330-30390-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64330-30391-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30391-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30391-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30400-02i197909-198008
DARK WINE,RED/MAROON,TRIM3#
main64330-30400-04i197909-198008
BLUE,BLUE,TRIM8#
main64330-30400-05i197909-198008
GREIGE,BEIGE,TRIM4#
main64330-30410-02i198008-198108
DARK WINE,RED/MAROON,TRIM3#
main64330-30410-04i198008-198108
BLUE,BLUE,TRIM8#
main64330-30410-05i198008-198108
GREIGE,BEIGE,TRIM4#
main64330-30411-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30411-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30411-05i198108-198307
BEIGE,BEIGE,TRIM4#
main64330-30520-03i198108-198307
GRAY,GRAY,TRIM1#
main64330-30520-04i198108-198307
BLUE,BLUE,TRIM8#
main64330-30520-05i198108-198307
BEIGE,BEIGE,TRIM4#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01198×3i197909-198307
64334PAD, PACKAGE TRAY TRIM SILENCER
main64334-30050i198005-198108
64338GARNISH, PACKAGE TRAY PANEL TRIM
main64337-30040-02i197909-198108
FR,DARK WINE,RED/MAROON,TRIM3#
main64337-30040-03i198108-198307
FR,GRAY,GRAY,TRIM1#
main64337-30040-04i197909-198108
FR,BLUE,BLUE,TRIM8#
main64337-30040-05i197909-198108
FR,GREIGE,BEIGE,TRIM4#
main64337-30040-15i198108-198307
FR,BEIGE,BEIGE,TRIM4#
main64339-30020-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64339-30020-03i198108-198307
GRAY,GRAY,TRIM1#
main64339-30020-04i197909-198108
BLUE,BLUE,TRIM8#
main64339-30020-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64339-30020-15i198108-198307
BEIGE,BEIGE,TRIM4#
main64339-30050-04i197909-198108
BLUE,BLUE,TRIM8#
main64339-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
64371RETAINER, PACKAGE TRAY TRIM
main64371-30040×6i197909-198307
64383GRILLE, SPEAKER, REAR
main64383-30030-02×2i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main64383-30030-03×2i198108-198307
GRAY,GRAY,TRIM1#
main64383-30030-04×2i197909-198108
BLUE,BLUE,TRIM8#
main64383-30030-05×2i197909-198108
GREIGE,BEIGE,TRIM4#
main64383-30030-15×2i198108-198307
BEIGE,BEIGE,TRIM4#
64404TRAY SUB-ASSY, LUGGAGE COMPARTMENT
main64405-30020i197909-198010
main64405-30021i198010-198307
64421TRAY SUB-ASSY, LUGGAGE COMPARTMENT
main64490-30010i197909-198307
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64711-30180i197909-198307
main64711-30200i197909-198307
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64721-30050i197909-198307
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64722-30040i197909-198307
64714COVER, LUGGAGE COMPARTMENT, RH
main64714-30080i197909-198307
64715COVER, LUGGAGE COMPARTMENT, LH
main64715-30080i197909-198307
64716COVER, LUGGAGE COMPARTMENT, REAR CENTER
main64716-30020i197909-198307
64723MOULDING, LUGGAGE COMPARTMENT TRIM, RH
main64724-30040i197909-198307
64724MOULDING, LUGGAGE COMPARTMENT TRIM, LH
main64724-30040i197909-198307
64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1
main64725-30070×6i197909-198307
64756COVER, LUGGAGE COMPARTMENT SIDE
main58703-30010i197909-198307
RH
main58704-30030i197909-198307
LH
64770COVER ASSY, SPARE WHEEL
main64770-30050i197909-198307
main64770-91591-04i197909-198108
BLUE,BLUE,TRIM8#
main64770-91591-05i197909-198108
GREIGE,BEIGE,TRIM4#
main64770-91591-15i198108-198307
BEIGE,BEIGE,TRIM4#
7404ASH RECEPTACLE
→ Go to FIG 74-04
6472630020PAD, HOUSING SPARE WHEEL SILENCER, FRONT
main64726-30020
6777112020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12020
9015940206
main90159-40206
9018304046
main90183-04046
9046710015
main90467-10015
9165540816
main91655-40816
9166540616
main91665-40616
9356054010
main93560-54010
9361054010
main93610-54010

31 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota CROWN

This section contains 31 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota CROWN. Key components include: BOARD, ROOM PARTITION, NO.1, CLAMP, JACK HANDLE, PANEL ASSY, PACKAGE TRAY TRIM, PLUG(FOR PACKAGE TRAY TRIM PANEL), PAD, PACKAGE TRAY TRIM SILENCER.
