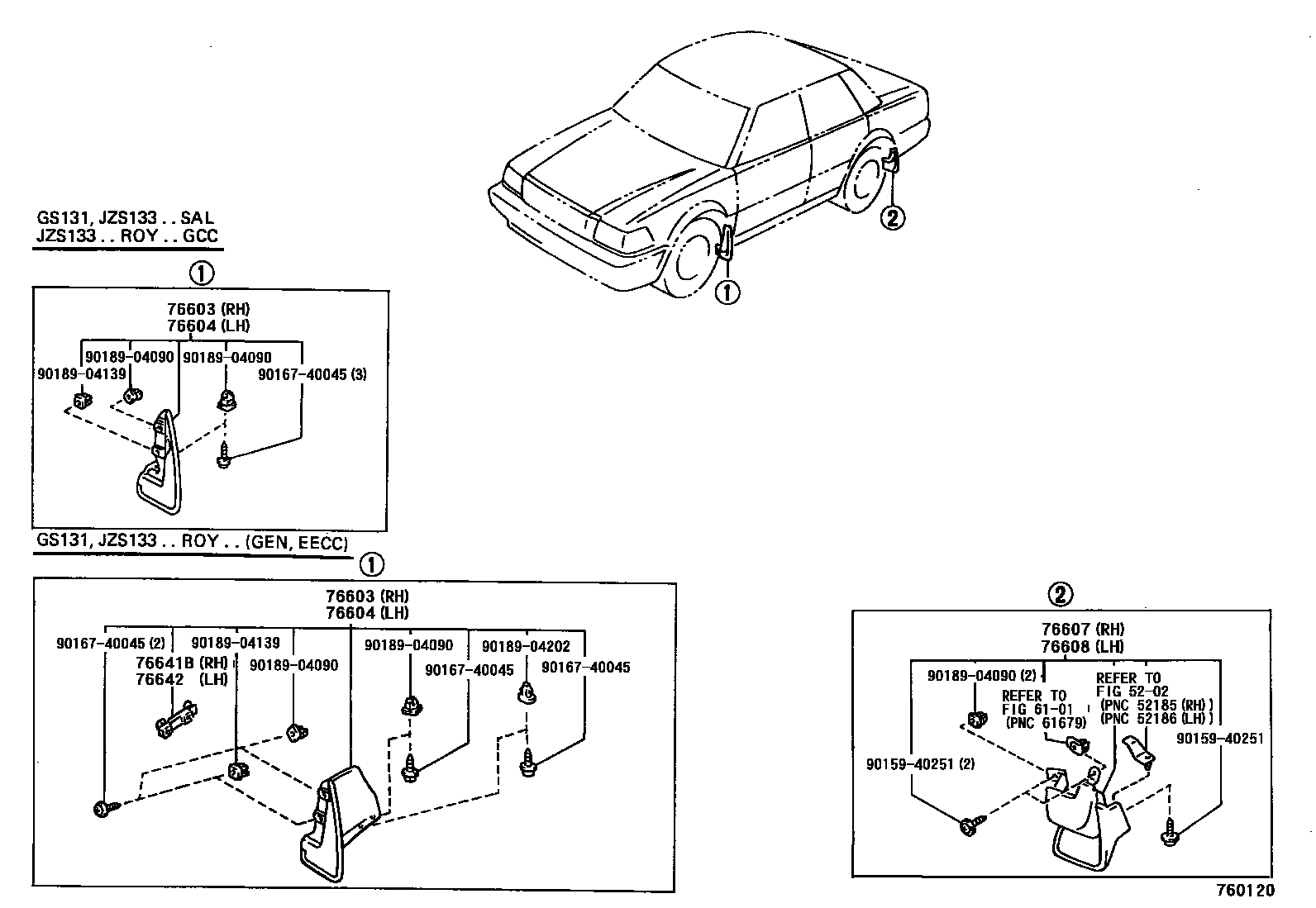

Toyota CROWN — MUDGUARD & SPOILER
5202REAR BUMPER & BUMPER STAY
6101SIDE MEMBER
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
SUPER WHITE 4,050
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
BLACK,202
DP.RED MC,3H8
MEDIUM BEIGE M,4H6
DK GREEN M,6K2
DK.BLUE FTOP,8J5
SUPER WHITE 2,040
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
BEIGE M.M,4K9
DK.TURQUOISE MC,742
DK.BLUE MCFP,8J5
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
SUPER WHITE 4,050
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
BLACK,202
DP.RED MC,3H8
MEDIUM BEIGE M,4H6
DK GREEN M,6K2
DK.BLUE FTOP,8J5
SUPER WHITE 2,040
DK.BL.GRAY ME,183
SILVER ME,199
BLACK,202
BEIGE M.M,4K9
DK.TURQUOISE MC,742
DK.BLUE MCFP,8J5
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76641BBRACKET, FRONT FENDER PANEL MUDGUARD, RH
76642BRACKET, FRONT FENDER PANEL MUDGUARD, LH
9015940251
main90159-40251
9016740045
main90167-40045
9018904090
main90189-04090
9018904139
main90189-04139
9018904202
main90189-04202
13 parts on this diagram · 1 diagram in section
MUDGUARD & SPOILER for Toyota CROWN
This section contains 13 genuine Toyota parts for the MUDGUARD & SPOILER system of the Toyota CROWN. Key components include: REAR BUMPER & BUMPER STAY, SIDE MEMBER, MUDGUARD SUB-ASSY, FRONT FENDER, RH, MUDGUARD SUB-ASSY, FRONT FENDER, LH, MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH.
