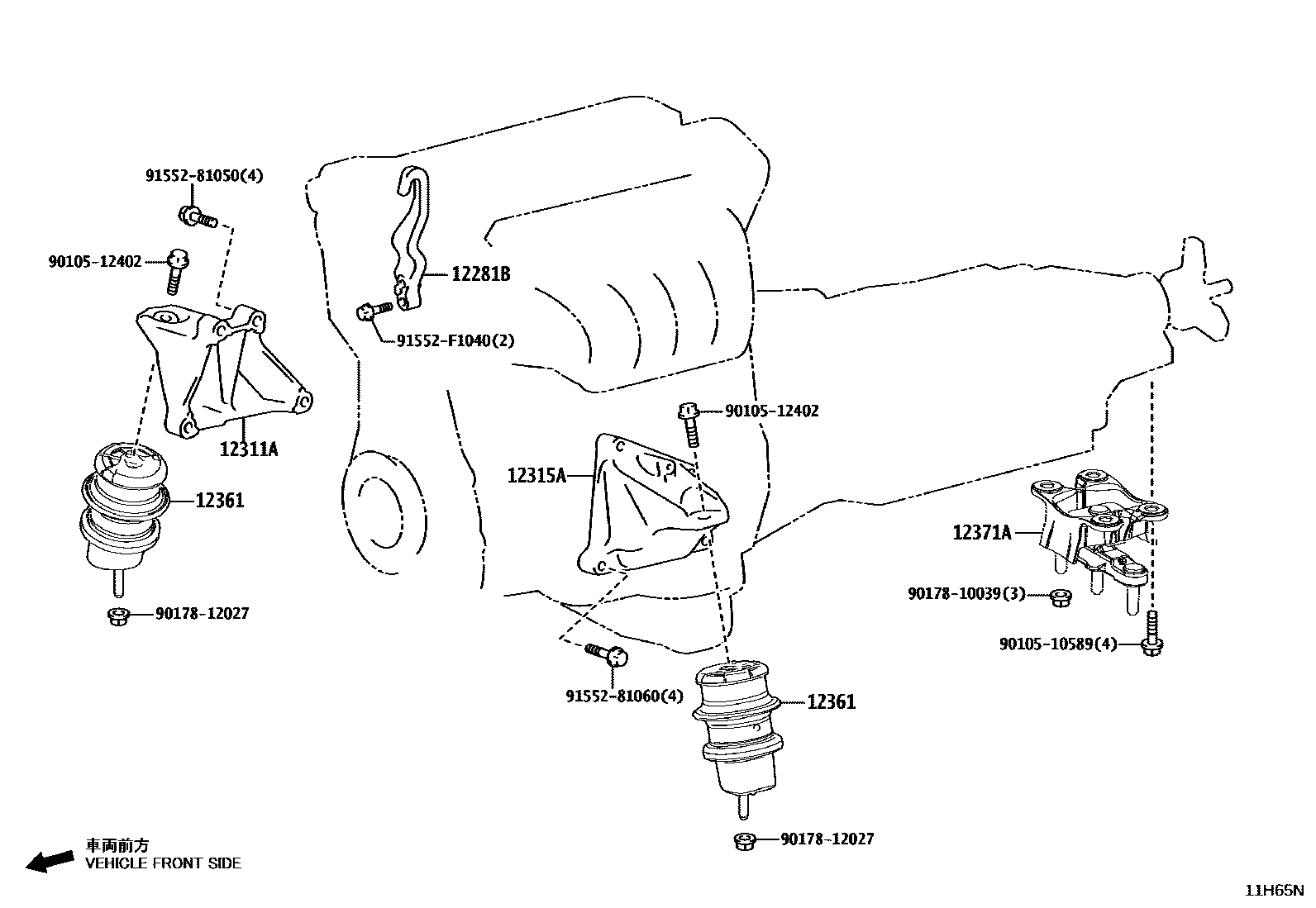

Toyota CROWN — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25..AZSH32202405

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25090iA25..AZSH32202405

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25040iA25..AZSH32202405

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31500×2iA25..AZSH32202405

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31420iA25..AZSH32202405

9010510589

main90105-10589

9010512402

main90105-12402

9017810039

main90178-10039

9017812027

main90178-12027

9155281050

main91552-81050

9155281060

main91552-81060

91552F1040

main91552-F1040

12 parts on this diagram · 1 diagram in section
