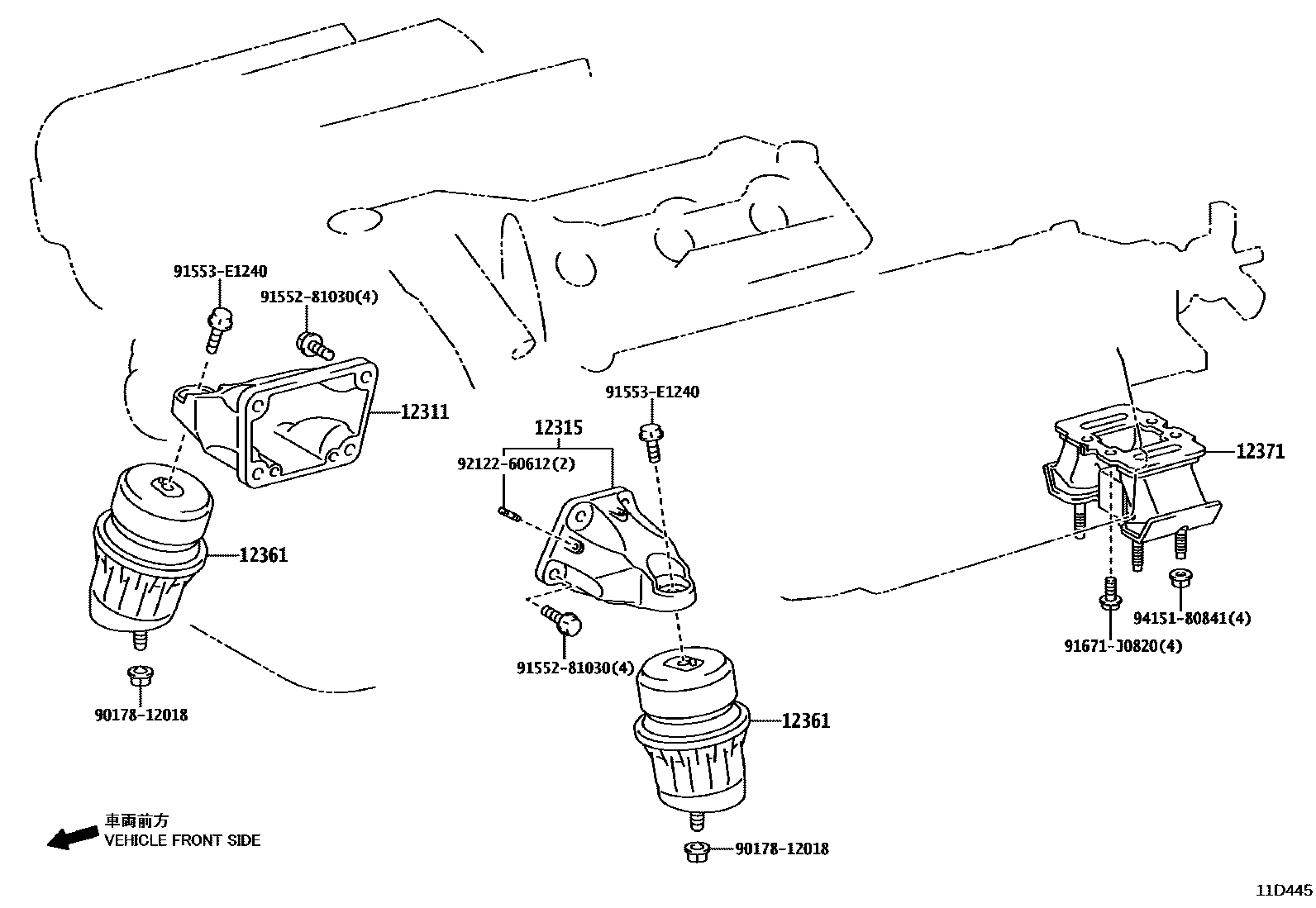

Toyota CROWN — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i3GRFE..GRS202201009-201212

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i3GRFE..GRS202201009-201212

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31200×2i3GRFE..GRS202201009-201212

sub12361-31201

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31070i3GRFE..GRS202201009-201212

9017812018

main90178-12018

9155281030

main91552-81030

91553E1240

main91553-E1240

91671J0820

main91671-J0820

9212260612

main92122-60612

9415180841

main94151-80841

10 parts on this diagram · 1 diagram in section
