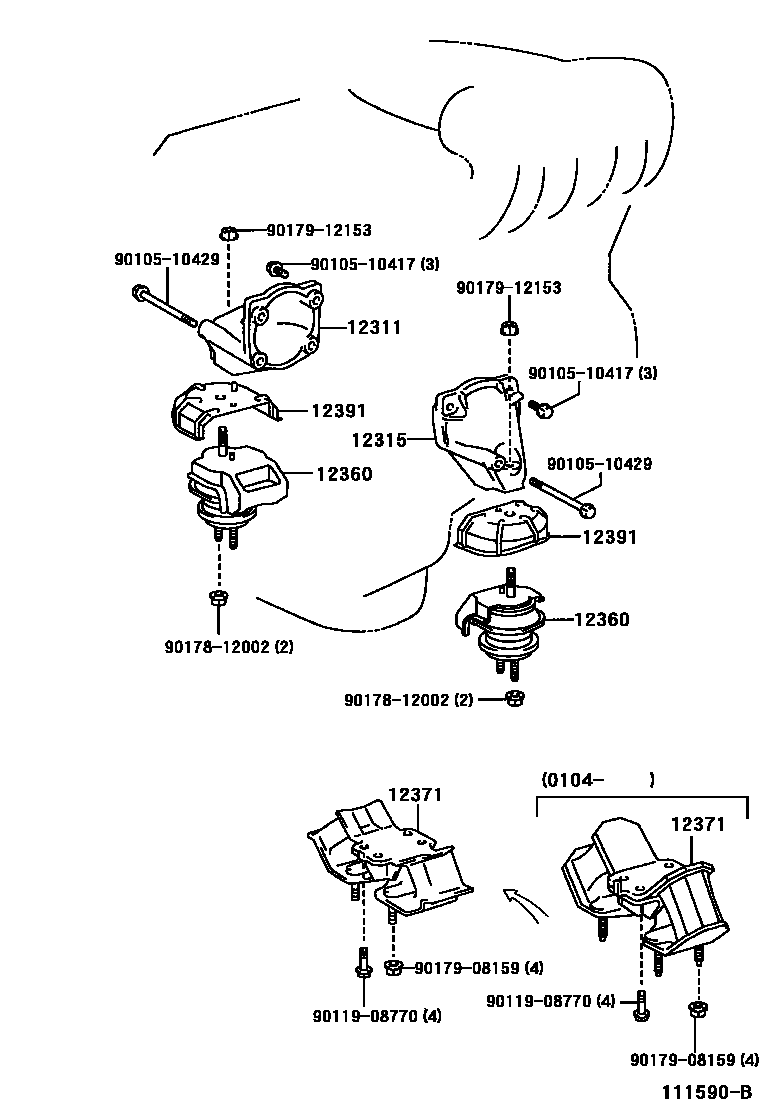

Toyota CROWN — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46140i2JZGE..JZS175199909-200108

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46120i2JZGE..JZS175199909-200108

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46180×2i2JZGE..JZS175199909-200108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46200i2JZGE..JZS175200104-200108

main12371-46210i2JZGE..JZS175199909-200104

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-46020×2i2JZGE..JZS175199909-200103

main12391-46040×2i2JZGE..JZS175200103-200108

9010510417

main90105-10417

9010510429

main90105-10429

9011908770

main90119-08770

9017812002

main90178-12002

9017908159

main90179-08159

9017912153

main90179-12153

11 parts on this diagram · 1 diagram in section
