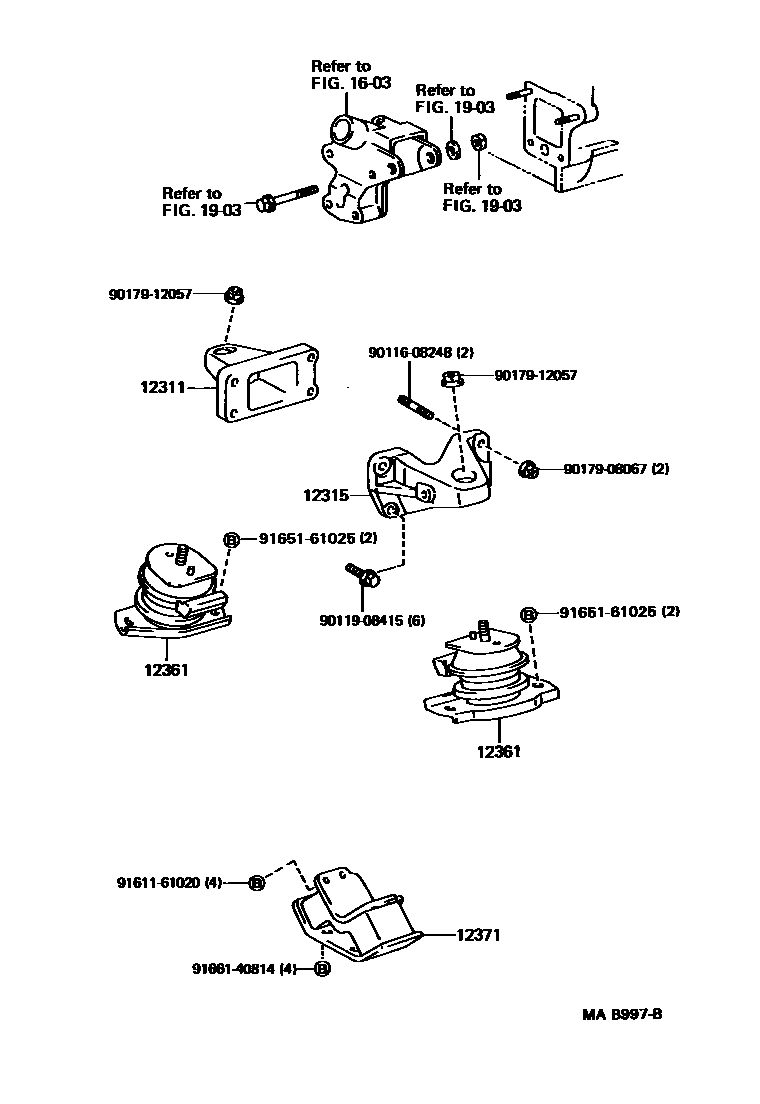

Toyota CROWN — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46030i2JZGE..JZS133199110-200104

main12311-54160i2L..LS130199110-199512

main12311-70100i1GFE..GS131199110

main12311-71010i4Y..YS132199110-199512

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46030i2JZGE..JZS133199110-200104

main12315-70070i1GFE..GS131..RHD199110-199512

main12315-70090i1GFE..GS131..LHD199110

main12315-71010i4Y..YS132199110-199512

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-46030i2JZGE..JZS133..EECC199110-199212

RH

main12361-46090i2JZGE..JZS133..GCC,GEN199110-199212

RH

main12361-54131i2L..LS130199110-199512

RH

main12361-70142×2i1GFE..GS131199110

main12361-73030i4Y..YS132199110-199512

RH

sub12361-73031

main12362-46020i2JZGE..JZS133..EECC199110-199212

LH

main12362-46040i2JZGE..JZS133..LHD..5F..Q;2JZGE..JZS133..5F..(D,G,J);2JZGE..JZS133..4FC..(GCC,GEN)199212-200104

LH

main12362-54021i2L..LS130199110-199512

LH

main12362-73040i4Y..YS132199110-199512

LH

sub12362-73041

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i2L..LS130199110-199512

main12371-46010i2JZGE..JZS133199110-199204

main12371-46011i2JZGE..JZS133199204-200104

main12371-70040i1GFE..GS131199110-199204

main12371-70041i1GFE..GS131199204

main12371-73010i4Y..YS132199110-199512

1603

1903

9011608248

main90116-08248

9011908415

main90119-08415

9017908067

main90179-08067

9017912057

main90179-12057

9161161020

main91611-61020

9165161025

main91651-61025

9166140814

main91661-40814

13 parts on this diagram · 4 diagrams in section
