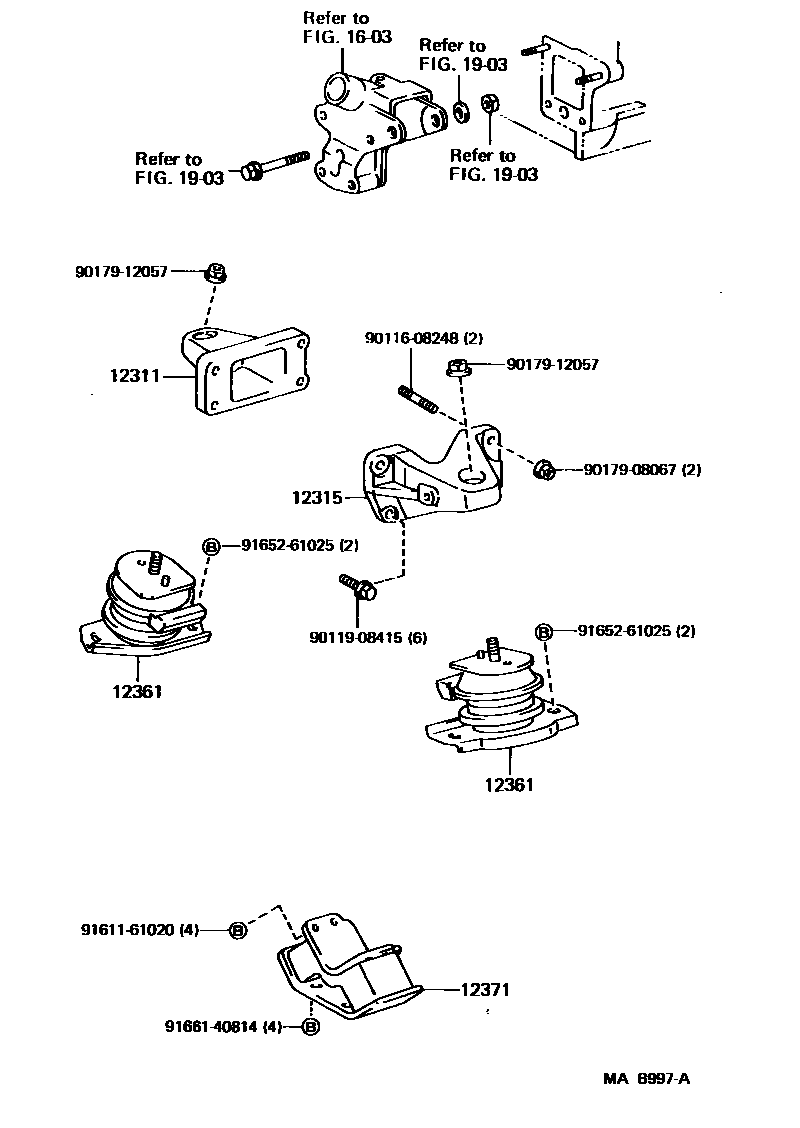

Toyota CROWN — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41080i5M#,7MGE..MS13#198709-199110

main12311-54090i2L..LS130198709-198908

sub12311-54091

main12311-54160i2L..LS130198908-199110

main12311-70100i1GFE..GS131198812-199110

main12311-71010i4Y..YS132198709-199110

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54021i2L..LS130..LHD198709-198809

main12315-41090i5M#,7MGE..MS13#198709-199110

main12315-70070i1GFE..GS131198812-198911

main12315-70090i1GFE..GS131..SAL198911-199110

main12315-71010i4Y..YS132198709-199110

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41120×2i5M#,7MGE..MS13#198709-199110

main12361-54130i2L..LS130198709-199001

RH

main12361-54131i2L..LS130199001-199110

RH

main12361-70140×2i1GFE..GS131198812-198908

main12361-70141×2i1GFE..GS131198911-199011

main12361-70142×2i1GFE..GS131199011-199110

main12361-73020i4Y..YS132198709-198906

RH

main12361-73030i4Y..YS132198906-199110

RH

sub12361-73031

main12362-54020i2L..LS130198709-199001

LH

main12362-54021i2L..LS130199001-199110

LH

main12362-73030i4Y..YS132198709-198906

LH

main12362-73040i4Y..YS132198906-199110

LH

sub12362-73041

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i2L..LS130198709-199110

main12371-34030i4Y..YS132198709-199106

main12371-41070i1GFE..GS131198709-198908

main12371-70030i1GFE..GS131198908-199110

main12371-73010i4Y..YS132199106-199110

1603

1903

9011608248

main90116-08248

9011908415

main90119-08415

9017908067

main90179-08067

9017912057

main90179-12057

9161161020

main91611-61020

9165261025

main91652-61025

9166140814

main91661-40814

13 parts on this diagram · 5 diagrams in section
