Toyota CROWN — MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41070i5M#..MS12#198308-198408

main12311-42010i5M#,6MGE..MS12#198408-198708

main12311-54090i2L..LS120198308-198708

sub12311-54091

main12311-71010i3Y..YS120198308-198708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54020i2L..LS120..STD198308-198608

W/O PS

main12312-54021i2L..LS120198608-198708

W/O PS

main12315-41080i5M#..MS12#198308-198408

main12315-42010i5M#,6MGE..MS12#198408-198708

main12315-71010i3Y..YS120198308-198708

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-41100×2i5M#..MS12#..ARL,GEN,SAA198308-198408

main12361-42010×2i5M#,6MGE..MS12#..ARL,GEN,SAA198408-198503

main12361-43030×2i5ME,5MGE..MS123..SAL198308-198408

main12361-43060×2i5M#,6MGE..MS12#198503-198708

main12361-54130i2L..LS120198308-198708

RH

sub12361-54131

main12361-73010i3Y..YS120198308-198708

RH

main12362-54020i2L..LS120198308-198708

LH

sub12362-54021

main12362-73010i3Y..YS120198308-198708

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i2L..LS120198308-198708

main12371-34030i3Y..YS120198308-198708

main12371-41070i5M#,6MGE..MS12#198308-198708

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2i2L..LS120198308-198708

main12381-71020×2i3Y..YS120198308-198312

main12381-73010×2i3Y..YS120198312-198708

9161161020

main91611-61020

9161161022

main91611-61022

9161161025

main91611-61025

9165161025

main91651-61025

9166140814

main91661-40814

9411541200

main94115-41200

9451201200

main94512-01200

9541201200

main95412-01200

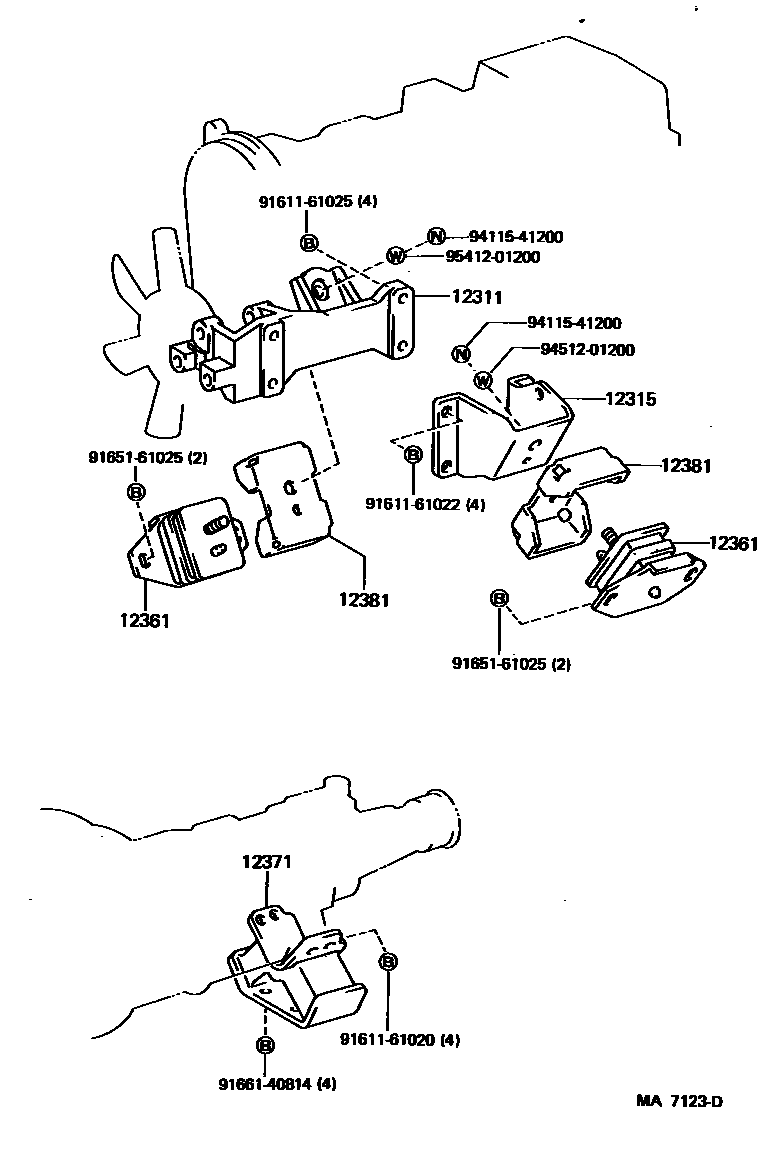

13 parts on this diagram · 4 diagrams in section
