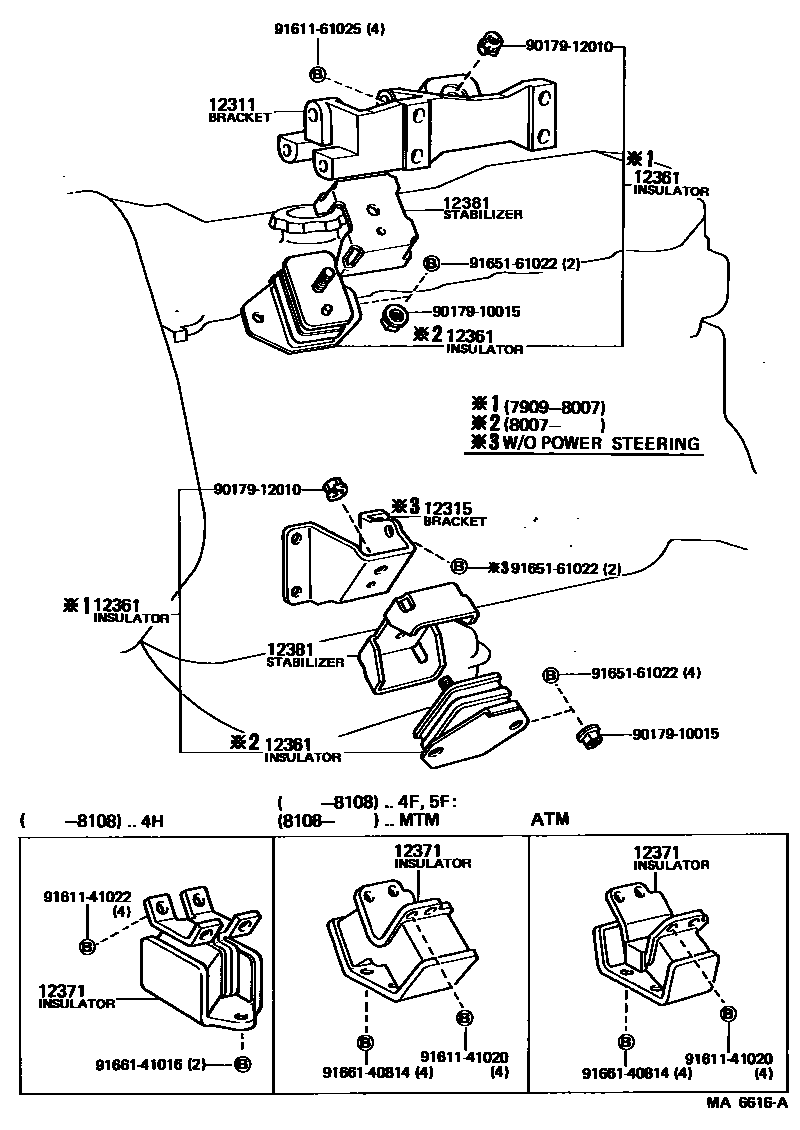

Toyota CROWN — MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-41060i4M,5M#..MS11#197909-198307

main12311-44010i5R..RS110197909-198307

main12311-54010iL..LS110197909-198208

main12311-54060iL..LS110198208-198307

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54011iL..LS110197909-198307

W/O POWER STEERING

main12315-41050i4M,5M#..MS11#197909-198307

main12315-44010i5R..RS110197909-198307

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-44040×2i5R..RS110198012-198307

main12361-49016×2i5R..RS110197909-198012

sub94115-41200

sub94512-01200

main12361-49026×2i4M,5M#..MS11#197909-198307

main12361-54012iL..LS110198007-198307

RH

main12361-59046iL..LS110197909-198007

RH

sub94115-41200

sub94512-01200

main12362-54012iL..LS110198007-198307

LH

main12362-59016iL..LS110197909-198007

LH

sub94115-41200

sub94512-01200

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020iL..LS110..4F,5F197909-198012

main12371-41070i4M,5ME..MS11#..4F,5F197909-198008

main12371-43010i5ME..MS112..ATM198008-198307

main12371-44020i5R..RS110198108-198307

main12371-45011iL..LS110..4H197909-198108

main12371-54021iL..LS110..4FC197909-198208

sub90119-08359

main12371-54022iL..LS110..4FC198208-198307

sub12371-54023

sub91661-40814

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2iL..LS110197909-198307

9017910015

main90179-10015

9017912010

main90179-12010

9161141020

main91611-41020

9161141022

main91611-41022

9161161025

main91611-61025

9165161022

main91651-61022

9166140814

main91661-40814

9166141016

main91661-41016

13 parts on this diagram · 3 diagrams in section
