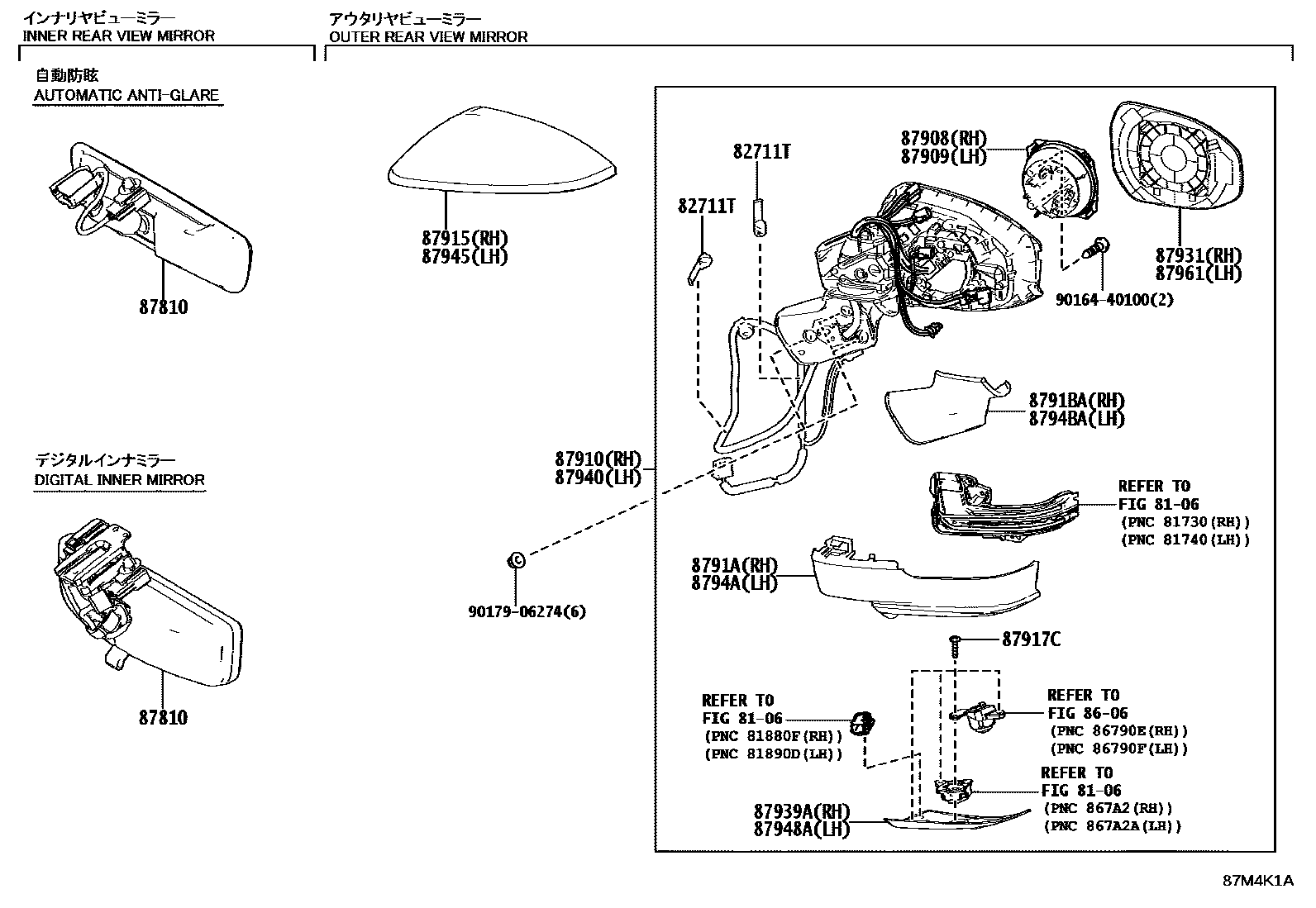

Toyota CROWN — MIRROR
8106
82711TCLAMP, WIRING HARNESS
8606
87908ACTUATOR ASSY, OUTER MIRROR, RH
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87909ACTUATOR ASSY, OUTER MIRROR, LH
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6
87917CSCREW, OUTER MIRROR
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
8791ACOVER, OUTER MIRROR, RH NO.2
NO PAINT REQ.
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87939ACOVER, OUTER MIRROR HOLE, RH
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,090 ,1J6 ,1L5 ,1L6 ,1M0 ,219 ,4Y6
87948ACOVER, OUTER MIRROR HOLE, LH
PERIPHERAL MONITOR CAMERA-WITH(PANORAMIC VIEW MONITOR)
8794ACOVER, OUTER MIRROR, LH NO.2
NO PAINT REQ.
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
9016440100
main90164-40100
9017906274
main90179-06274
21 parts on this diagram · 1 diagram in section
