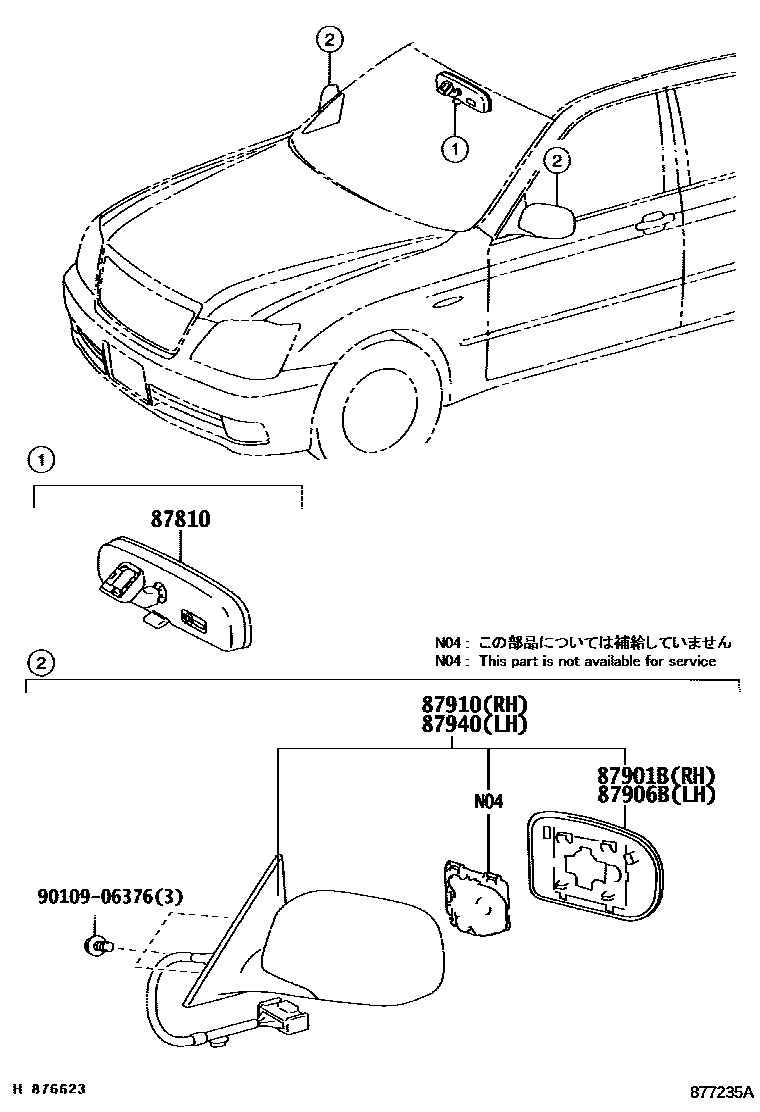

Toyota CROWN — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-60190i200411-200611

main87810-60191i200612-200802

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-30710i200411-200802

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-30A00i200411-200802

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30710-A0i200411-200802

SUPER WHITE 2,040

main87910-30710-A1i200411-200802

WHITE PEARL CS.,062

main87910-30710-B0i200411-200509

SILVER ME.,1C0

main87910-30710-B1i200411-200802

PREMIUM SILVER PEARL,1F3

main87910-30710-B2i200509-200802

SILVER ME.,1F7

main87910-30710-B3i200509-200802

QUARTZ GRAY PM.,1G4

main87910-30710-C0i200411-200802

BLACK,202

main87910-30710-D0i200411-200802

BLACKISH RED MC.,3R0

main87910-30710-D1i200509-200704

GINGER RED M.M.,3R6

main87910-30710-J0i200411-200509

DARK BLUE MC.,8P8

main87910-30710-J1i200509-200802

DK.BLUE MC.,8S6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30A00-A0i200411-200802

SUPER WHITE 2,040

main87940-30A00-A1i200411-200802

WHITE PEARL CS.,062

main87940-30A00-B0i200411-200509

SILVER ME.,1C0

main87940-30A00-B1i200411-200802

PREMIUM SILVER PEARL,1F3

main87940-30A00-B2i200509-200802

SILVER ME.,1F7

main87940-30A00-B3i200509-200802

QUARTZ GRAY PM.,1G4

main87940-30A00-C0i200411-200802

BLACK,202

main87940-30A00-D0i200411-200802

BLACKISH RED MC.,3R0

main87940-30A00-D1i200509-200704

GINGER RED M.M.,3R6

main87940-30A00-J0i200411-200509

DARK BLUE MC.,8P8

main87940-30A00-J1i200509-200802

DK.BLUE MC.,8S6

9010906376

main90109-06376

6 parts on this diagram · 1 diagram in section

MIRROR for Toyota CROWN

This section contains 6 genuine Toyota parts for the MIRROR system of the Toyota CROWN. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR ASSY, OUTER REAR VIEW, LH.
