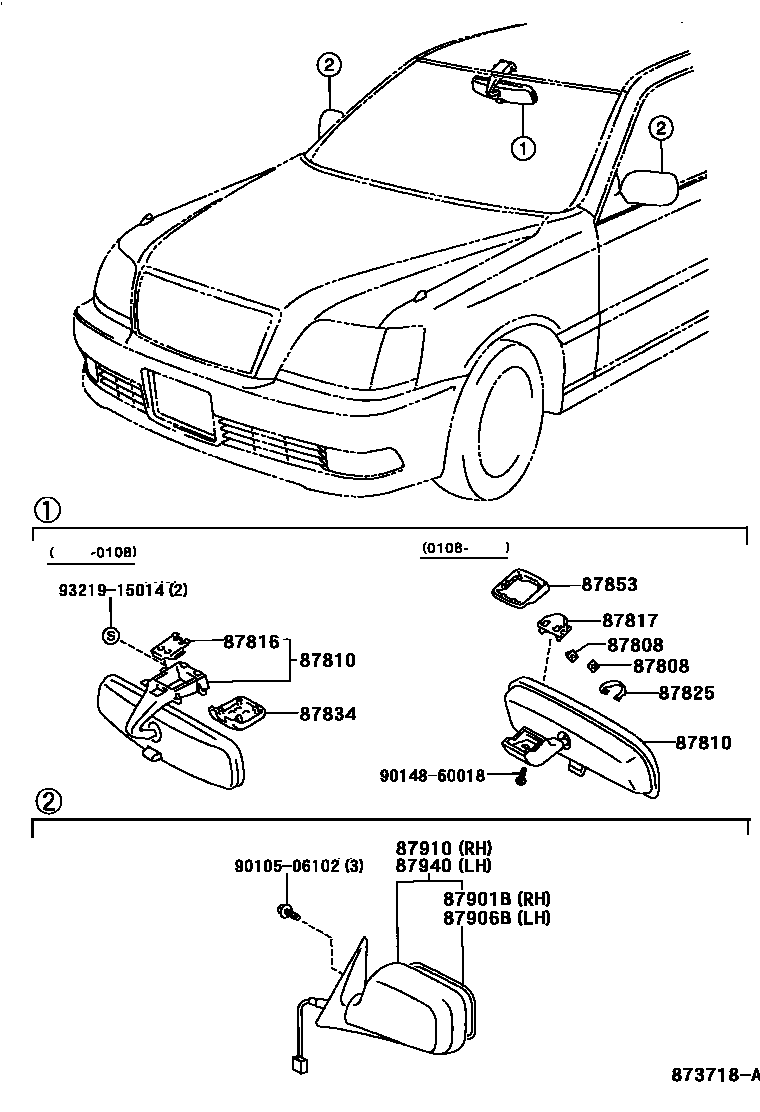

Toyota CROWN — MIRROR
87808HOLDER SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
87816SPRING, INNER REAR VIEW MIRROR
87817SPACER, INNER REAR VIEW MIRROR
87825SPRING, INNER REAR VIEW MIRROR SETTING
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
87853BASE, INNER REAR VIEW MIRROR
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BLACKISH GREEN MC.CC,6R5
DK.BLUE MC.,2FR ,8L4
GRAYISH BLUE ME.,8N6
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
DARK BLUE MC.,8P8
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BLACKISH GREEN MC.CC,6R5
DK.BLUE MC.,2FR ,8L4
GRAYISH BLUE ME.,8N6
SUPER WHITE 2,040
WHITE PEARL CS.,062 ,2FQ
SILVER ME.,1C0
BLACK,202
BLACKISH GREEN MC.CC,6R5
LT.GREEN M.M.,6S8
DARK BLUE MC.,8P8
9010506102
main90105-06102
9014860018
main90148-60018
9321915014
main93219-15014
14 parts on this diagram · 1 diagram in section
