Toyota CROWN — MIRROR

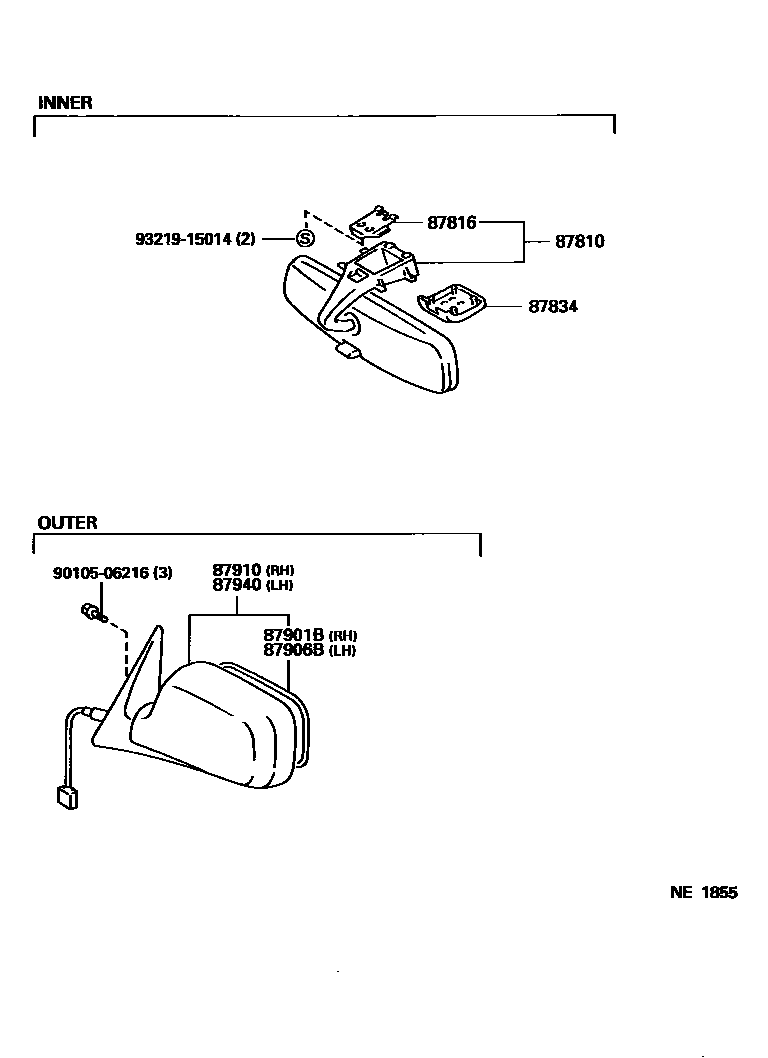

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-30260-B0i199512-199909
LT.BLUISH GRAY,TRIM1#
main87810-30260-E0i199512-199909
QUARTZ,TRIM4#
main87810-30270-B0i199512-200108
LT.BLUISH GRAY,TRIM1#
main87810-30270-E0i199512-200108
QUARTZ,TRIM4#
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i199512
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-30120-B0i199512-200108
LT.BLUISH GRAY,TRIM1#
main87834-30120-E0i199512-200108
QUARTZ,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-30490i199512
main87931-3A030i199707
main87931-3A090i199609
main87931-50260i199512-199609
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-30440i199512
main87961-30850i199707
main87961-3A020i199609
main87961-50250i199512-199609
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-3A031-A0i199707-199909
SUPER WHITE 2,040
sub87910-3A060
main87910-3A031-A1i199707-199909
SU.WHITE PM,051 ,2BK
sub87910-3A060
main87910-3A031-B0i199707-199909
SILVER ME,199
sub87910-3A060
main87910-3A031-B1i199707-199909
DK.GRAY ME.,1A8
sub87910-3A060
main87910-3A031-C0i199707-199909
BLACK,202
sub87910-3A060
main87910-3A031-J1i199707-199909
DK.BLUE MC.,2EA ,8L4
sub87910-3A060
main87910-3A050-A0i199512-199909
SUPER WHITE 2,040
sub87910-3A080
main87910-3A050-B0i199512-199909
SILVER ME,199
sub87910-3A080
main87910-3A050-B1i199708-199909
DK.GRAY ME.,1A8
sub87910-3A080
main87910-3A050-C0i199512-199909
BLACK,202
sub87910-3A080
main87910-3A050-H0i199512-199707
DK.TURQUOISE.MC,742
sub87910-3A080
main87910-3A050-J0i199512-199909
DK.BLUE MC.,8L4
sub87910-3A080
main87910-3A070-A0i199609-200108
SUPER WHITE 2,040
main87910-3A070-B0i199609-199909
SILVER ME,199
main87910-3A070-B1i199707-199909
DK.GRAY ME.,1A8
main87910-3A070-B2i199909-200108
SILVER ME.,1C0
main87910-3A070-C0i199609-200108
BLACK,202
main87910-3A070-H0i199609-199707
DK.TURQUOISE.MC,742
main87910-3A070-J0i199512-199609
DK.BLUE MC.,8L4
main87910-3A070-J1i199909-200108
GRAYISH BLUE ME.,8N6
main87910-3A090-A0i199609-199909
SUPER WHITE 2,040
main87910-3A090-B0i199609-199909
SILVER ME,199
main87910-3A090-B1i199707-199909
DK.GRAY ME.,1A8
main87910-3A090-C0i199609-199909
BLACK,202
main87910-3A090-H0i199609-199707
DK.TURQUOISE.MC,742
main87910-3A090-J0i199609-199909
DK.BLUE MC.,8L4
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-30851-A0i199707-199909
SUPER WHITE 2,040
sub87940-30880
main87940-30851-A1i199707-199909
SU.WHITE PM,051 ,2BK
sub87940-30880
main87940-30851-B0i199707-199909
SILVER ME,199
sub87940-30880
main87940-30851-B1i199707-199909
DK.GRAY ME.,1A8
sub87940-30880
main87940-30851-C0i199707-199909
BLACK,202
sub87940-30880
main87940-30851-J1i199707-199909
DK.BLUE MC.,2EA ,8L4
sub87940-30880
main87940-30870-A0i199512-199909
SUPER WHITE 2,040
sub87940-3A010
main87940-30870-B0i199512-199909
SILVER ME,199
sub87940-3A010
main87940-30870-B1i199708-199909
DK.GRAY ME.,1A8
sub87940-3A010
main87940-30870-C0i199512-199909
BLACK,202
sub87940-3A010
main87940-30870-H0i199512-199707
DK.TURQUOISE.MC,742
sub87940-3A010
main87940-30870-J0i199512-199909
DK.BLUE MC.,8L4
sub87940-3A010
main87940-30890-A0i199609-200108
SUPER WHITE 2,040
main87940-30890-B0i199609-199909
SILVER ME,199
main87940-30890-B1i199707-199909
DK.GRAY ME.,1A8
main87940-30890-B2i199909-200108
SILVER ME.,1C0
main87940-30890-C0i199512-199609
BLACK,202
main87940-30890-H0i199609-199707
DK.TURQUOISE.MC,742
main87940-30890-J0i199609-200108
DK.BLUE MC.,8L4
main87940-30890-J1i199909-200108
GRAYISH BLUE ME.,8N6
main87940-3A020-A0i199609-199909
SUPER WHITE 2,040
main87940-3A020-B0i199609-199909
SILVER ME,199
main87940-3A020-B1i199707-199909
DK.GRAY ME.,1A8
main87940-3A020-C0i199609-199909
BLACK,202
main87940-3A020-H0i199609-199707
DK.TURQUOISE.MC,742
main87940-3A020-J0i199609-199909
DK.BLUE MC.,8L4
9010506216
main90105-06216
9321915014
main93219-15014

9 parts on this diagram · 1 diagram in section
