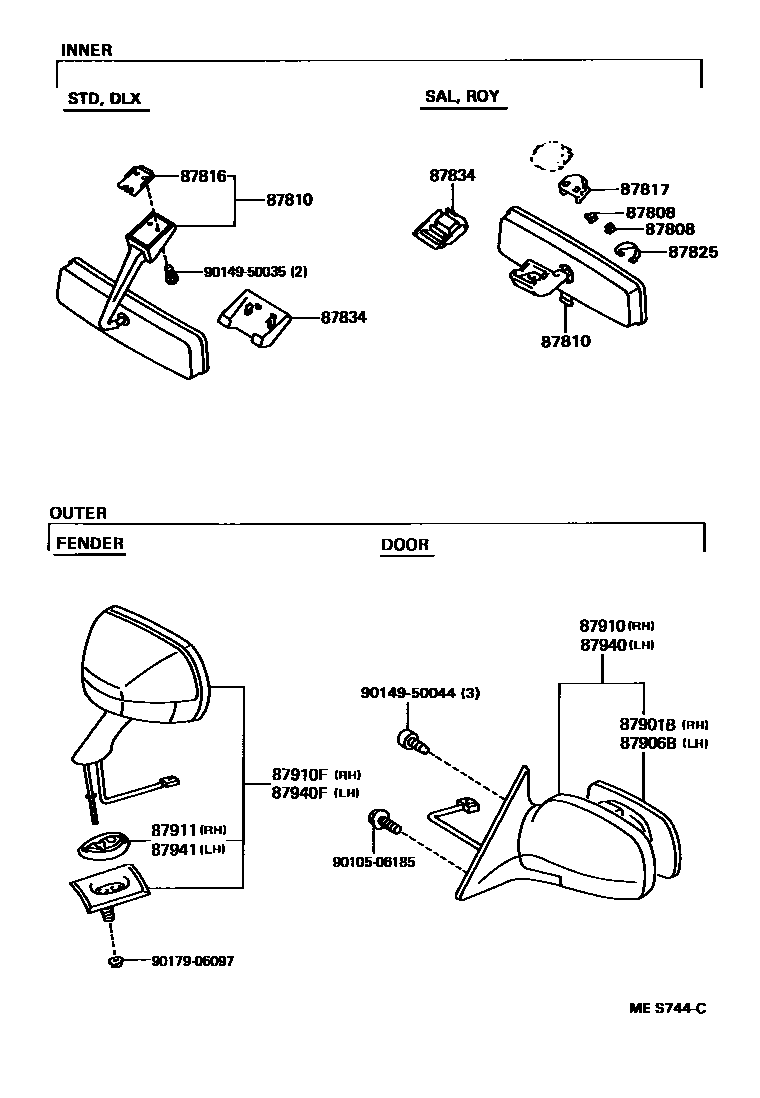

Toyota CROWN — MIRROR

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2iGS131,JZS133..ROY,SAL199110-200104

87810MIRROR ASSY, INNER REAR VIEW

main87810-30220-J0iJZS133,LS130,YS132..B,D199110-199512

LI.BLUE,TRIM8#

main87810-30240-B0iJZS133..EECC199110-199308

LI.GRAY,TRIM1#

main87810-30240-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main87810-30240-J0iGS131..RHD;JZS133..4FC;JZS133..5F..ROY;GS131,JZS133..LHD..5F..G199110-200104

LI.BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iJZS133,LS130,YS132..B,D199110-199512

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010iGS131,JZS133..ROY,SAL199110-200104

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010iGS131,JZS133..ROY,SAL199110-200104

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-30070-J0iJZS133,LS130,YS132..B,D199110-199512

LI.BLUE,TRIM8#

main87834-30110iGS131,JZS133..ROY,SAL199110-200104

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-30490iGS131,JZS133,LS130..RHD199110-200104

main87931-30570iGS131,JZS133,LS130,YS132..LHD199110-199904

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-30440iGS131,JZS133,LS130..RHD199110-200104

main87961-30500iGS131,JZS133,LS130,YS132..LHD199110-199904

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30770iGS131..RHD..G;JZS133,LS130..RHD199308-199512

main87910-30780-A1iGS131..Q;JZS133..RHD199110-199308

SUPER WHITE 4,050

main87910-30780-A2iJZS133..RHD;GS131..RHD..G199308-200104

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87910-30780-B0iGS131..Q;JZS133..RHD199110-199308

SUPER SILVER 3 M,176

main87910-30780-B1iGS131,JZS133..RHD..5F199308-200104

ELECTRIC REMOTE CONTROL MIRROR,DK.BL.GRAY ME,183

main87910-30780-B2iGS131,JZS133..RHD..5F199308-200104

SILVER ME,199

main87910-30780-C0iGS131,JZS133..RHD..5F199308-200104

ELECTRIC REMOTE CONTROL MIRROR,BLACK,202

main87910-30780-D0iGS131..Q;JZS133..RHD..GEN199110-199201

DP.RED MC,3H8

main87910-30780-E0iGS131..Q;JZS133..RHD..GEN199110-199308

MEDIUM BEIGE M,4H6

main87910-30780-E1iGS131,JZS133..RHD..4FC199308-200104

BEIGE MM,4K9

main87910-30780-G0iGS131..Q;JZS133..RHD199110-199308

DK.GREEN M,6K2

main87910-30780-H0iGS131,JZS133..RHD..5F199308-200104

DK.TURQUISE.MC,742

main87910-30780-J0iGS131,JZS133..RHD..5F199308-200104

ELECTRIC REMOTE CONTROL MIRROR,DK.BLUE MICA FP,8J5

main87910-30790-A0iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER WHITE 4,050

main87910-30790-A1iGS131,JZS133,YS132..LHD199308-199904

SUPER WHITE 2,040

main87910-30790-B0iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER SILVER 3 M,176

main87910-30790-B2iGS131,JZS133,YS132..LHD199308-199904

SILVER ME,199

main87910-30790-C0iGS131,JZS133,LS130,YS132..LHD199110-199308

BLACK,202

main87910-30790-D0iGS131,JZS133..LHD..(ROY,SAL)199110-199201

DP.RED MC,3H8

main87910-30790-D1iLS130,YS132..LHD199201-199308

RED,3E6

main87910-30790-E0iGS131,JZS133..LHD..(ROY,SAL)199110-199308

MEDIUM BEIGE M,4H6

main87910-30790-E1iGS131,JZS133..LHD..(G,Q)199308-199904

BEIGE MM,4K9

main87910-30790-J0iGS131,JZS133,LS130,YS132..LHD199110-199308

DK.BLUE MICA FP,8J5

87910FMIRROR ASSY, FENDER, RH

main87910-30750iJZS133..EECC199110-199308

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-30120iJZS133..EECC199110-199308

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30700iGS131..RHD..G;JZS133,LS130..RHD199308-199512

main87940-30710-A1iGS131..Q;JZS133..RHD199110-199308

SUPER WHITE 4,050

main87940-30710-A2iJZS133..RHD;GS131..RHD..G199308-200104

ELECTRIC REMOTE CONTROL MIRROR,SUPER WHITE 2,040

main87940-30710-B0iGS131..Q;JZS133..RHD199110-199308

SUPER SILVER 3 M,176

main87940-30710-B1iJZS133..RHD..5F..Q;GS131,JZS133..RHD..4FC199110-200104

DK.BL.GRAY ME,183

main87940-30710-B2iGS131,JZS133..RHD..4FC199308-200104

SILVER ME,199

main87940-30710-C0iGS131,JZS133..RHD..5F199308-200104

ELECTRIC REMOTE CONTROL MIRROR,BLACK,202

main87940-30710-D0iGS131..Q;JZS133..RHD..GEN199110-199201

DP.RED MC,3H8

main87940-30710-E0iGS131..Q;JZS133..RHD..GEN199110-199308

MEDIUM BEIGE M,4H6

main87940-30710-E1iGS131,JZS133..RHD..5F199308-200104

BEIGE MM,4K9

main87940-30710-G0iGS131..Q;JZS133..RHD199110-199308

DK.GREEN M,6K2

main87940-30710-H0iGS131,JZS133..RHD..5F199308-200104

DK.TURQUOISE.MC,742

main87940-30710-J0iJZS133..RHD..5F..Q;GS131,JZS133..RHD..4FC199110-200104

DK.BLUE MICA FP,8J5

main87940-30720-A0iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER WHITE 4,050

main87940-30720-A1iGS131,JZS133,YS132..LHD199308-199904

SUPER WHITE 2,040

main87940-30720-B0iGS131,JZS133,LS130,YS132..LHD199110-199308

SUPER SILVER 3 M,176

main87940-30720-B2iGS131,JZS133,YS132..LHD199308-199904

SILVER ME,199

main87940-30720-C0iYS132199308-199512

BLACK,183 ,202 ,3E6 ,8J5

main87940-30720-D0iGS131,JZS133..LHD..(ROY,SAL)199110-199201

DP.RED MC,3H8

main87940-30720-D1iLS130,YS132..LHD199201-199308

RED,3E6

main87940-30720-E0iGS131,JZS133..LHD..(ROY,SAL)199110-199308

MEDIUM BEIGE M,4H6

main87940-30720-E1iGS131,JZS133..LHD..(G,Q)199308-199904

BEIGE MM,4K9

main87940-30720-J0iGS131,JZS133,LS130,YS132..LHD199110-199308

DK.BLUE MICA FP,8J5

87940FMIRROR ASSY, FENDER, LH

main87940-30680iJZS133..EECC199110-199308

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-30090iJZS133..EECC199110-199308

9010506185

main90105-06185

9014950035

main90149-50035

9014950044

main90149-50044

9017906097

main90179-06097

18 parts on this diagram · 1 diagram in section
