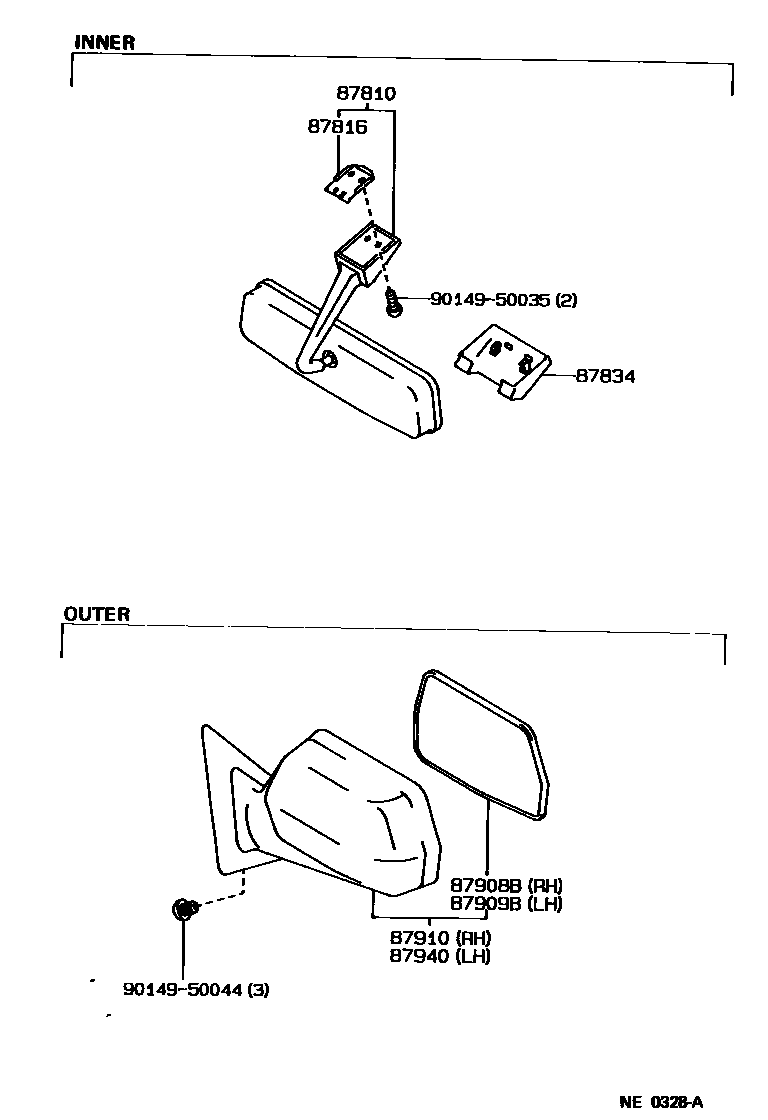

Toyota CROWN — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-30220-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

main87810-30220-06iMS133,135..ROY,SAL,SALEX;GS131,MS132..LHD..(ROY,SAL)198908-199110

SABLE,TRIM3#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iGS131,LS130,MS13#,YS132198709-199110

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-30070-04iMS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD198709-199110

BLUE,TRIM8#

main87834-30070-06iLS130,MS132,YS132..DLX,STD198709-198908

SABLE,TRIM3#

main87834-30080-04iMS132,135..ROY..GEN198709-199110

BLUE,TRIM8#

main87834-30080-06iGS131..ROY198709-199110

SABLE,TRIM3#

main87834-30090-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main87834-30090-06iMS133,135..HT198709-199110

SABLE,TRIM3#,4#

main87834-30100-04iMS133,135..HT198709-199110

W(MOON ROOF),BLUE,TRIM8#

main87834-30100-06iMS133,135..HT198709-199110

W(MOON ROOF),SABLE,TRIM3#,4#

87908BMIRROR SUB-ASSY, RH

main87931-30490iGS131,LS130,MS13#..RHD198709-199110

main87931-30570iGS131,LS130,MS13#,YS132..LHD198709-199110

87909BMIRROR SUB-ASSY, LH

main87961-30440iGS131,LS130,MS13#..RHD198709-199110

main87961-30500iGS131,LS130,MS13#,YS132..LHD198709-199110

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30530iLS130,MS132,133..RHD..(DLX,STD)198709-199110

ELECTRIC REMOTO CONTROL MIRROR

main87910-30540iMS133,135..RHD..(ROY,SAL)198908-199110

RETRACT MIRROR

main87910-30550iLS130,MS132,133..RHD..(DLX,STD)198709-199110

main87910-30570iMS133,135..HT198709-199110

main87910-30580iLS130,MS132,YS132..LHD..STD198709-199110

main87910-30590iGS131,MS13#..LHD..(SED,WG)..(4FC,5F)198709-199110

ELECTRIC REMOTO CONTROL MIRROR

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30460iLS130,MS132,133..RHD..(DLX,STD)198709-199110

ELECTRIC REMOTO CONTROL MIRROR

main87940-30470iMS133,135..RHD..(ROY,SAL)198908-199110

RETRACT MIRROR

main87940-30480iLS130,MS132,133..RHD..(DLX,STD)198709-199110

main87940-30500iMS133,135..HT198709-199110

main87940-30510iLS130,MS132,YS132..LHD..STD198709-199110

main87940-30520iGS131,MS13#..LHD..(SED,WG)..(4FC,5F)198709-199110

ELECTRIC REMOTO CONTROL MIRROR

9014950035

main90149-50035

9014950044

main90149-50044

9 parts on this diagram · 1 diagram in section
