Toyota CROWN — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22161-12iMS123..SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub87810-22162

main87810-22161-25iMS123..SAL198308-198509

BEIGE,BEIGE,TRIM4#

sub87810-22162

main87810-22161-34iMS123..SAL198308-198509

BLUE,BLUE,TRIM8#

sub87810-22162

main87810-30190-06iLS120,MS123..4FC,4H;MS122,125,YS120..LHD198509-198708

BROWN,BROWN,TRIM4#

main87810-30190-22iLS120,MS12#,YS120..ARL,GEN,SAA198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main87810-30190-24iLS120,MS12#,YS120..ARL,GEN,SAA198308-198509

BLUE,BLUE,TRIM8#

main87810-30190-25iLS120,MS12#,YS120..ARL,GEN,SAA198308-198509

BEIGE,BEIGE,TRIM4#

main87810-30190-32iLS120,MS123..4FC,4H;MS122,125,YS120..LHD198509-198708

MAROON,MAROON,TRIM3#

main87810-30210-02iLS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

MAROON,MAROON,TRIM3#

main87810-30210-04iLS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BLUE,BLUE,TRIM8#

main87810-30210-06iLS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

BROWN,BROWN,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iMS123..SAL198308-198509

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-30010iLS120,MS122,125,YS120..RHD..(4F,4FC,4HC,5F)198509-198708

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-14iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

BLUE,BLUE,TRIM8#

main87834-20080-35iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198509

W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#

main87834-30010-04iLS120,MS12#,YS120..ROY,SAL198308-198509

BLUE,BLUE,TRIM8#

main87834-30010-05iLS120,MS12#,YS120..ROY,SAL198308-198509

BEIGE,BEIGE,TRIM3#,4#

87908BMIRROR SUB-ASSY, RH

main87931-30400iMS123198509-198708

main87931-30440iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

W/ELECTRIC *RCM

main87931-30480iMS122,125..RHD198509-198708

87909BMIRROR SUB-ASSY, LH

main87961-30330iMS123198509-198708

main87961-30370iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

W/ELECTRIC *RCM

main87961-30430iMS122,125..RHD198509-198708

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30401iMS123198509-198708

main87910-30410iLS120,YS120..RHD..STD198308-198708

main87910-30420iMS122..WG;LS120,MS122,YS120..LHD..(DLX,STD)198308-198708

main87910-30441iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

W/ELECTRIC *RCM

main87910-30480iMS122,125..RHD198509-198708

main87910-30520iMS122,125..HT198509-198708

main87910-80087iMS123..ARL198308-198509

main87910-80088iMS12#..RHD..GEN198308-198509

main87910-80089iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

W/ELECTRIC *RCM

87914ACOVER, OUTER MIRROR KNOB

main87914-30010×2iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

87918KNOB, CONTROL OUTER MIRROR

main87918-39015×2iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30331iMS123198509-198708

main87940-30340iLS120,YS120..RHD..STD198308-198708

main87940-30350iMS122..WG;LS120,MS122,YS120..LHD..(DLX,STD)198308-198708

main87940-30371iMS122,125..(SED,WG)..LHD..(ROY,SAL)198509-198708

W/ELECTRIC *RCM

main87940-30390iMS122,125..HT198509-198708

main87940-30430iMS122,125..RHD198509-198708

main87940-80087iMS123..ARL198308-198509

main87940-80088iLS120,MS12#..RHD..(ROY,SAL)..GEN198308-198509

main87940-80089iLS120,MS12#,YS120..LHD..(ROY,SAL)198308-198509

W/ELECTRIC *RCM

sub87940-30370

9014950035

main90149-50035

9015950016

main90159-50016

9015950191

main90159-50191

9331514016

main93315-14016

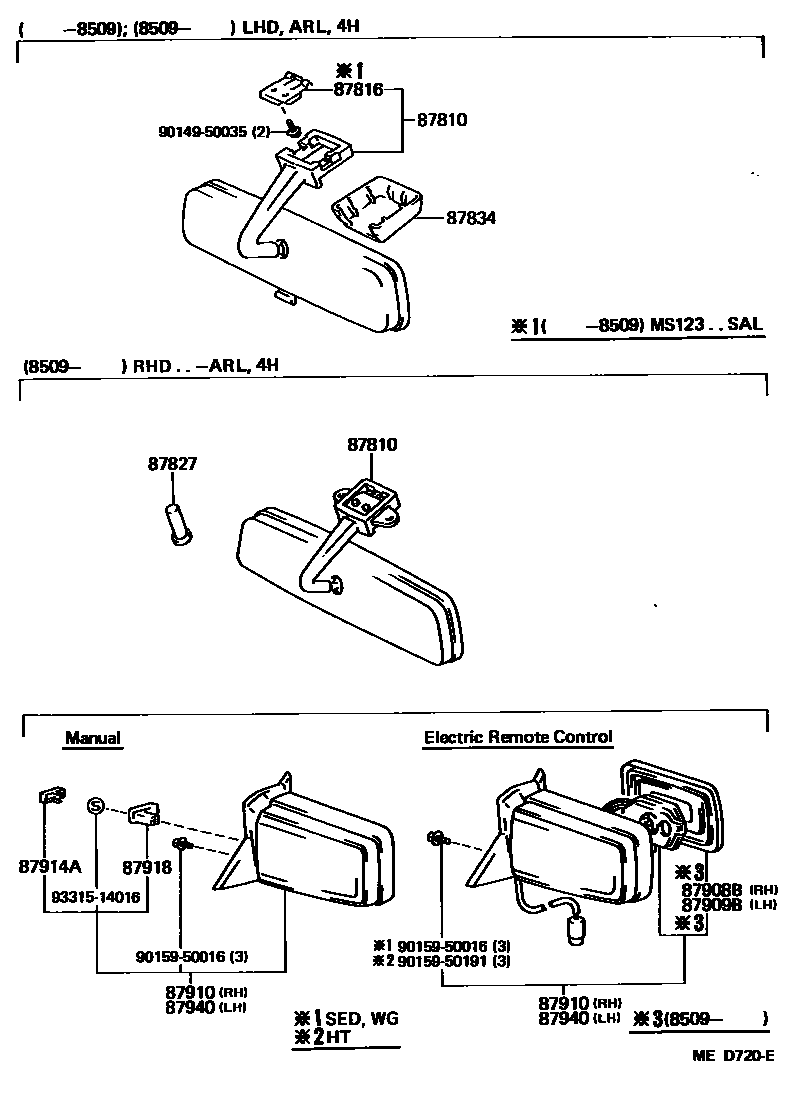

14 parts on this diagram · 1 diagram in section
