Toyota CROWN — MIRROR

0001 1 0002 1 0003 1

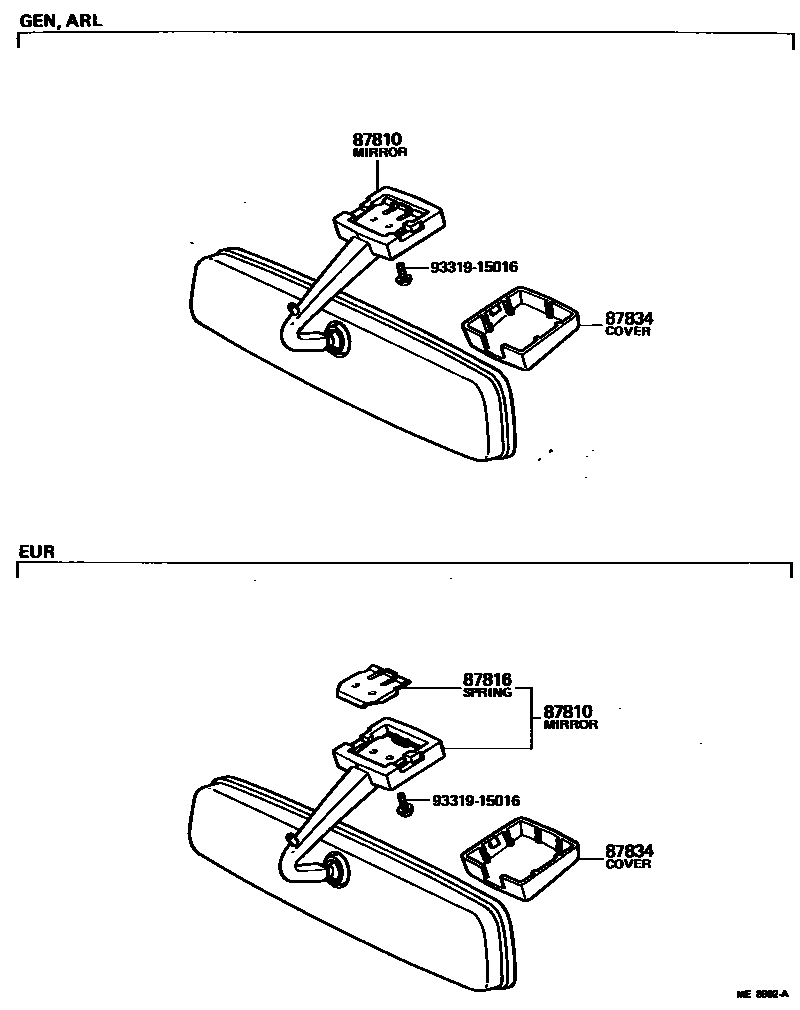

87810MIRROR ASSY, INNER REAR VIEW

main87810-22161-02iLS110,MS112,RS110..EUR197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub87810-22162

main87810-22161-04iLS110,MS112,RS110..EUR197909-198108

BLUE,BLUE,TRIM8#

sub87810-22162

main87810-22161-05iLS110,MS112,RS110..EUR197909-198108

GREIGE,BEIGE,TRIM4#

sub87810-22162

main87810-22161-13iLS110,MS112..EUR198108-198307

GRAY,GRAY,TRIM1#,8#

sub87810-22162

main87810-22161-15iLS110,MS112..EUR198108-198307

BEIGE,BEIGE,TRIM4#

sub87810-22162

main87810-30190-02iLS110,MS11#,RS110..ARL,GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main87810-30190-03iLS110,MS112,RS110..ARL,GEN198108-198307

GRAY,GRAY,TRIM1#,8#

main87810-30190-04iLS110,MS11#,RS110..ARL,GEN197909-198108

BLUE,BLUE,TRIM8#

main87810-30190-05iLS110,MS11#,RS110..ARL,GEN197909-198108

GREIGE,BEIGE,TRIM4#

main87810-30190-15iLS110,MS112,RS110..ARL,GEN198108-198307

BEIGE,BEIGE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iLS110,MS112,RS110..EUR197909-198307

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

main87834-20080-08iLS110,MS11#,RS110197909-198108

IVORY,IVORY,TRIM3#,4#

main87834-20080-23iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#,8#

main87834-20080-25iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

9331915016

main93319-15016

4 parts on this diagram · 3 diagrams in section
