Toyota CROWN — METER

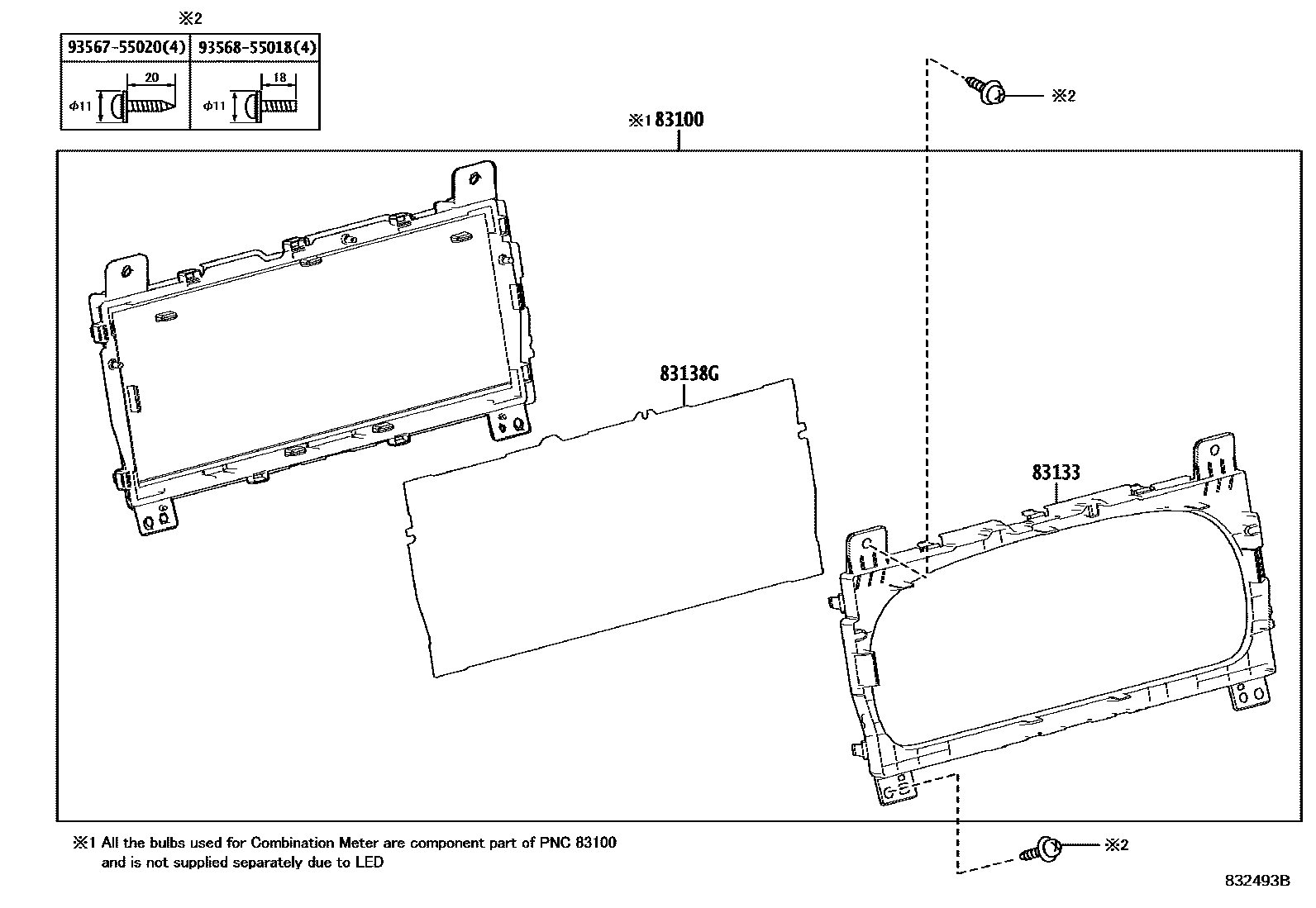

Parts diagram
83100METER ASSY, COMBINATION
main83800-3AT70i202301-202307
DENSO,*614
main83800-3AT71i202308-202310
DENSO,*614
main83800-3AT72i202310-202311
DENSO,*614
main83800-3AT73i202311-202404
DENSO,*614
sub83800-3AT74
main83800-3AT83i202311-202404
DENSO,*614
sub83800-3AT84
main83800-3AT90i202301-202307
DENSO,*614
main83800-3AT91i202308-202310
DENSO,*614
main83800-3AT92i202310-202311
DENSO,*614
main83800-3AT93i202311-202404
DENSO,*614
sub83800-3AT94
main83800-3AU50i202301-202310
DENSO,*614
main83800-3AU51i202310-202311
DENSO,*614
main83800-3AU52i202311-202404
DENSO,*614
sub83800-3AU53
main83800-3AV00i202301-202310
DENSO,*614
main83800-3AV01i202310-202311
DENSO,*614
main83800-3AV02i202311-202404
DENSO,*614
sub83800-3AV03
main83800-3AX50supersedes 83800-3AY60i202404-202409
DENSO,MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS),*614
main83800-3AX51supersedes 83800-3AX41i202410-202503
DENSO,*614
main83800-3AY50i202404-202409
DENSO,*614
main83800-3AY51i202410
DENSO,*614
main83800-3AY70i202404-202409
DENSO,*614
main83800-3AY71i202410
DENSO,*614
main83800-3AU10supersedes 83800-3AX41i202301-202310
DENSO,MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS),*614
main83800-3AU11supersedes 83800-3AX41i202310-202311
DENSO,MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS),*614
main83800-3AU12supersedes 83800-3AU02i202311-202404
DENSO,MID LUX PACKAGE&HEADLAMP-TRINOCULAR FULL LED & WITH(*AHS),*614
sub83800-3AU13
main83800-3AU30supersedes 83800-3AX51i202301-202310
DENSO,TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
main83800-3AU31supersedes 83800-3AX51i202310-202311
DENSO,TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
main83800-3AU32i202311-202404
DENSO,TAIWAN SPEC&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
sub83800-3AU33
main83800-3AU80supersedes 83800-3AU91i202301-202310
DENSO,DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
main83800-3AU81supersedes 83800-3AU91i202310-202311
DENSO,DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
main83800-3AU82supersedes 83800-3AU92i202311-202404
DENSO,DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
sub83800-3AU83
main83800-3AX60i202404-202409
DENSO,DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
main83800-3AX61supersedes 83800-3AU91i202410
DENSO,DECONTENT PACKAGE&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),*614
83133PLATE, COMBINATION METER, NO.1
main83811-3AS10i202301-202503
83138GGLASS, COMBINATION METER
main83852-3AS10i202311
9356755020
main93567-55020
9356855018
main93568-55018

5 parts on this diagram · 3 diagrams in section
