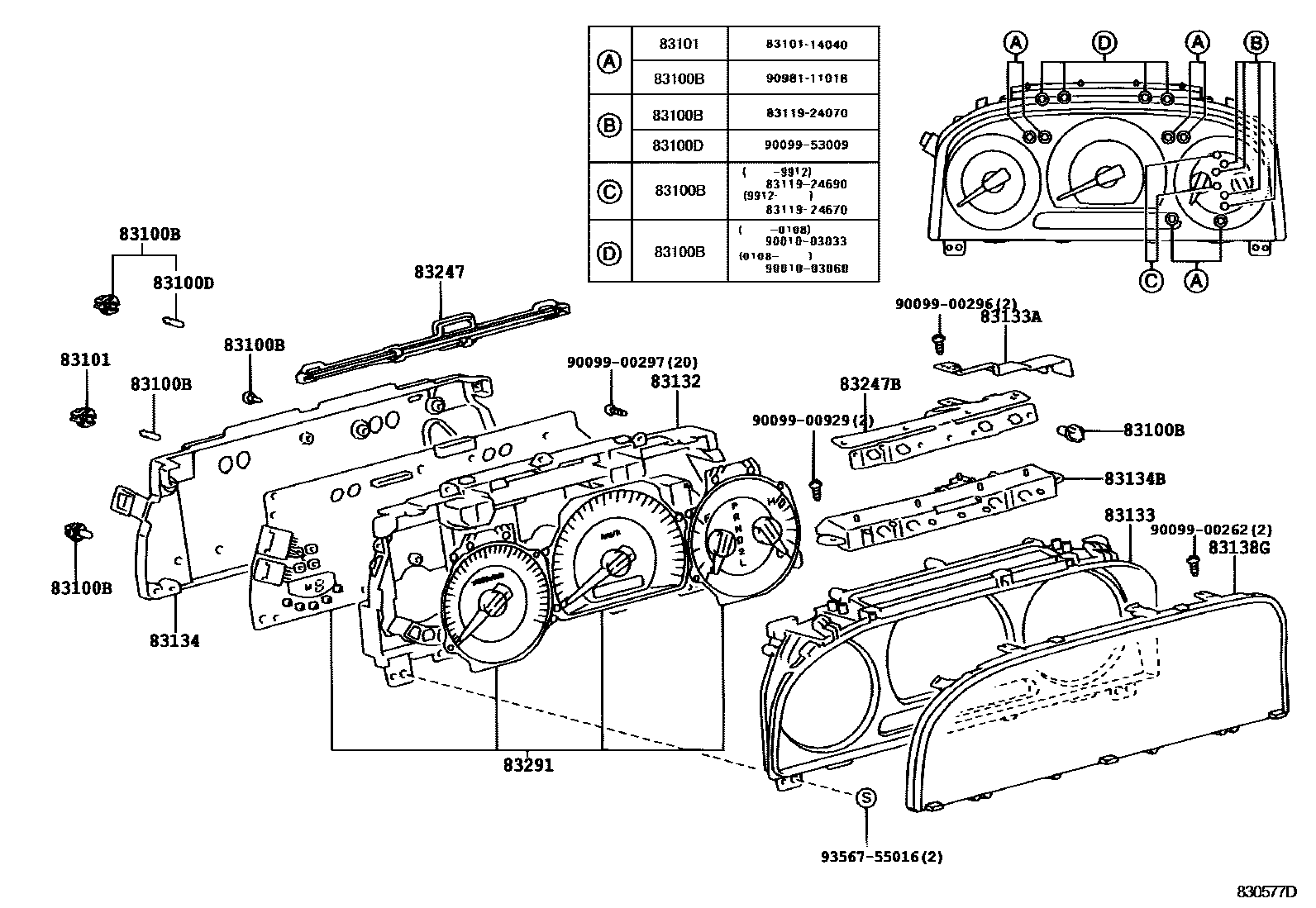

Toyota CROWN — METER

0001 1 0002 1CLOCK

83100BBULB, COMBINATION METER, NO.1

main83119-24070iJZS175199909-200312

12V 1.4W W(SOCKET),TYPE B:REFER TO ILLUSTRATION

main83119-24670iJZS175199912-200312

14V 1.12W W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main83119-24690iJZS175199909-199912

14V 0.84W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

main90010-03033iJZS175199909-200108

14V 3.0W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION

main90010-03060iJZS175200108-200312

14V 3.0W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION

main90981-11018iJZS175199909-200312

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

83100DBULB, COMBINATION METER, NO.2

main90099-53009iJZS175200108-200312

14V0.84W W/O(SOCKET)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iJZS175199909-200312

83132CASE, COMBINATION METER

main83841-30830iJZS175199909-200108

main83841-30831iJZS175200108-200312

83133PLATE, COMBINATION METER, NO.1

main83811-30830iJZS175199909-200108

main83811-30831iJZS175200108-200312

83133APLATE, COMBINATION METER, NO.2

main83812-30830iJZS175199909-200312

83134COVER, COMBINATION METER, NO.1

main83821-30830iJZS175199909-200312

83134BCOVER, COMBINATION METER, NO.2

main83822-30830iJZS175199909-200312

83138GGLASS, COMBINATION METER

main83852-30830iJZS175199909-200312

83247PLATE, METER CIRCUIT

main83861-30830iJZS175199909-200312

83247BPLATE, METER CIRCUIT, NO.2

main83862-30830iJZS175199909-200312

83291COMPUTER, COMBINATION METER

main83801-3A010iJZS175199909-200108

main83801-3A011iJZS175200108-200312

9009900262

main90099-00262

9009900296

main90099-00296

9009900297

main90099-00297

9009900929

main90099-00929

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
