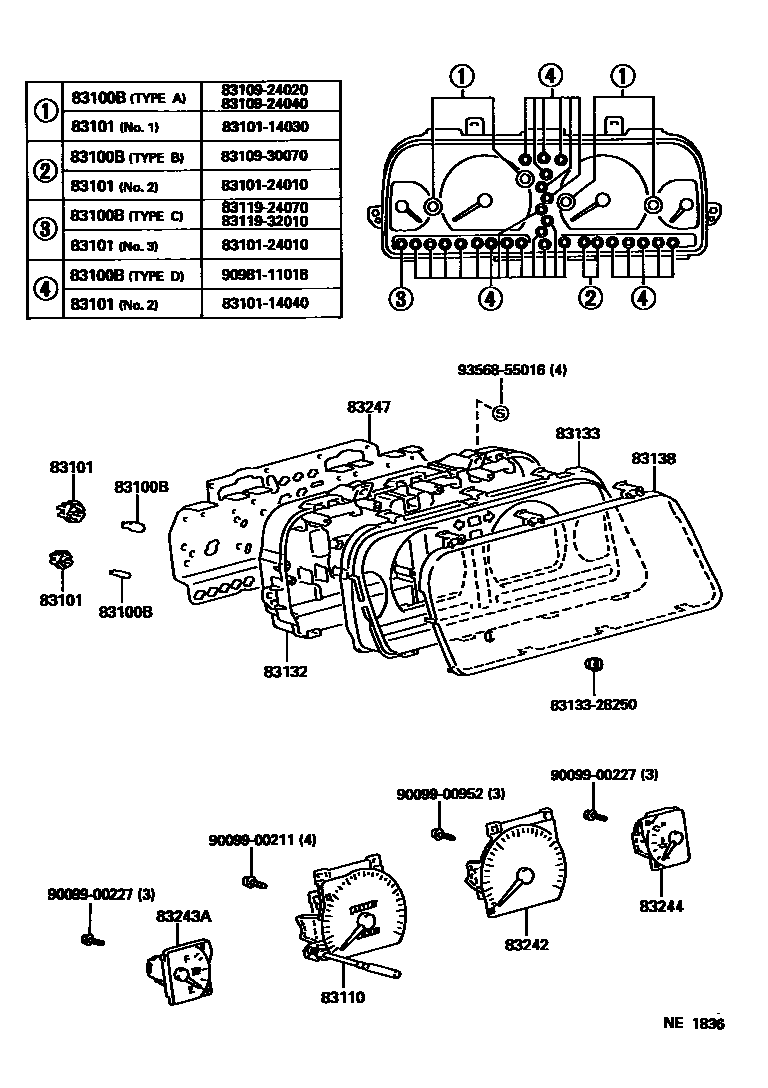

Toyota CROWN — METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-24020iGS151,JZS155199512

12V3.4W W(GREEN CAP),TYPE A

main83109-30070iGS151,JZS155199512

14V 2.0W,W/O SOCKET,TYPE B

main83119-32010iGS151,JZS155199512

14V 3.0W,TYPE C

main90981-11018iJZS155..5F..GCC199512-199909

12V 1.2W W/O SOCKET,TYPE D

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iGS151,JZS155199512

NO.1

main83101-14040iGS151,JZS155199512

NO.2

main83101-24010iGS151,JZS155199512

NO.3

83110SPEEDOMETER ASSY

main83220-30030iGS151,JZS155..RHD199512

main83220-30040iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199909

ANALOG(KM/H + MPH)

main83220-30050iJZS155..GCC199512-199802

main83220-30060iJZS155..LHD..GEN199512

main83220-30070iJZS155..RHD..SED199512

ANALOG(KM/H + MPH)

83132CASE, COMBINATION METER

main83841-30010iJZS155..RHD199512-199707

main83841-30110iJZS155..LHD..4FC199512-199909

main83841-30111iJZS155199909

main83841-30120iJZS155..5F199512

main83841-30550iGS151,JZS155..RHD199707

83133PLATE, COMBINATION METER, NO.1

main83811-30010iGS151,JZS155..RHD199512

main83811-30110iJZS155..LHD..4FC199512

main83811-30120iJZS155..5F199512

83138GLASS, SPEEDOMETER

main83852-30010iGS151,JZS155..RHD199512

main83852-30110iJZS155..LHD199512

83242TACHOMETER ASSY, ENGINE

main83881-30010iJZS155..RHD199512

main83881-30030iJZS155..RHD..SED199610

RHD LEADED FUEL SPEC

main83881-30050iGS151199707-199808

main83881-30110iJZS155199909

CHINA SPEC

main83881-30111iJZS155199909

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-30010iGS151,JZS155..RHD199512

main83882-30110iJZS155..LHD199512

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-30010iGS151,JZS155..RHD199512

main83883-30110iJZS155..LHD..GEN199512

main83883-30150iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199909

*89,DISCRIMINATION MARK "C"

83247PLATE, METER CIRCUIT

main83861-30010iJZS155..RHD199512-199707

main83861-30110iJZS155..LHD199512-199909

main83861-30111iJZS155199909

main83861-30610iJZS155..RHD199707

main83861-30630iGS151;JZS155..RHD..SED199707

RHD LEADED FUEL SPEC

8310114030SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030

8310114040SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040

8310124010SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-24010

8310924020BULB, COMBINATION METER, NO.2

main83109-24020

8310924040BULB, COMBINATION METER, NO.2

main83109-24040

8310930070BULB, COMBINATION METER, NO.2

main83109-30070

8311924070BULB, COMBINATION METER, NO.3

main83119-24070

8311932010BULB, COMBINATION METER, NO.3

main83119-32010

8313328250PLATE, COMBINATION METER, NO.1

main83133-28250

9009900211

main90099-00211

9009900227

main90099-00227

9009900952

main90099-00952

9098111018

main90981-11018

9356855016

main93568-55016

24 parts on this diagram · 3 diagrams in section
