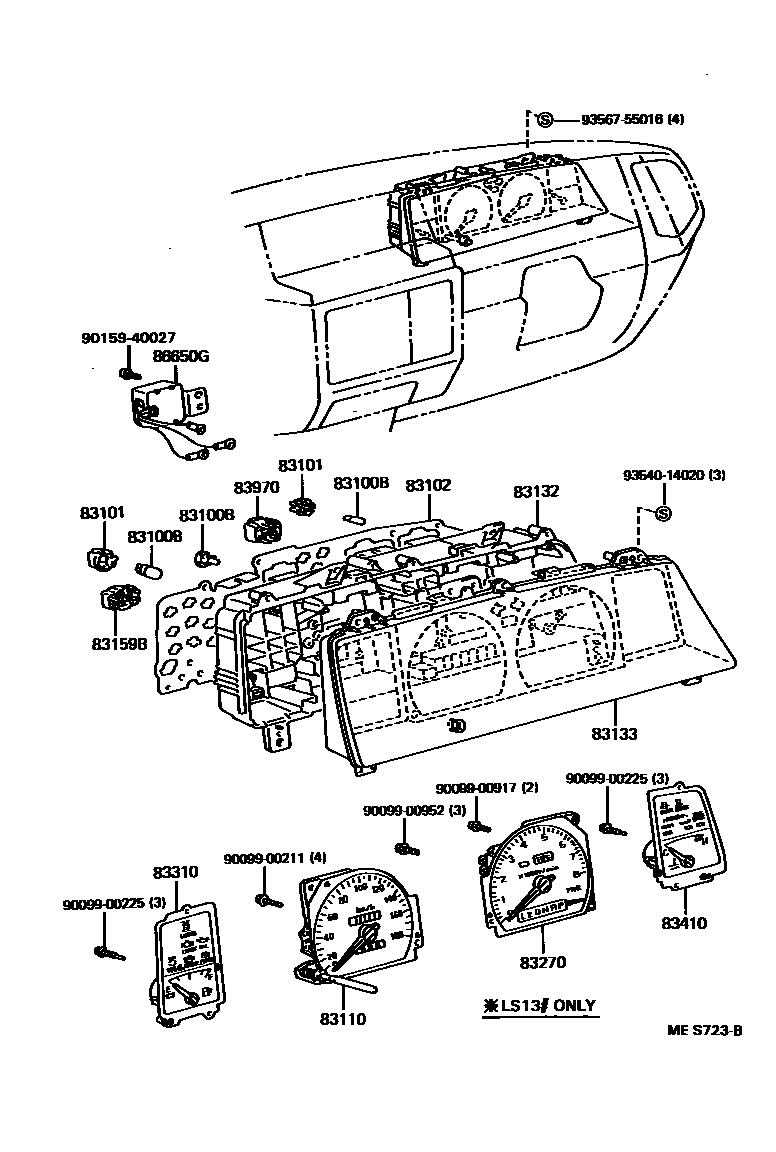

Toyota CROWN — METER

0001 1COMBINATION METER, W(TACHOMET0002 1COMBINATION METER, W(TACHOMET0003 1COMBINATION METER, W/O(TACHOM0004 1COMBINATION METER, TAXI SPEC 0005 1SPEEDOMETER SENSOR & CLOCK

83100BBULB, COMBINATION METER, NO.1

main83109-24030×2iJZS133,LS130,YS132..LHD..(B,D)199110-199512

12V3.4W W(GREEN CAP)

main83109-24040iGS131,JZS133..LHD..(ROY,SAL)199110-199904

12V1.4W W(GREEN CAP)

main83109-30050×2iLS130..RHD199110-199512

12V 3.4W,W/GREEN CAP

main83109-30060iLS130..RHD199110-199512

12V 2.0W,W/GREEN CAP

main83109-30070×2iLS130..RHD199110-199512

14V 2.0W,W/O SOCKET

main83119-24130×7iGS131..Q199110-199512

12V1.4W WHITE W(SKT)

main83119-32010iJZS133,LS130,YS132..LHD..(B,D)199110-199512

14V 3.0W

main90981-11018×10iJZS133..D;JZS133..LHD..GEN199308-199512

12V 1.2W W/O SOCKET,HOT AREA SPEC

main99132-12034iLS130..RHD;GS131,JZS133..ROY,SAL199110-200104

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×2iYS132199110-199308

BULB 3.4W

main83101-14040×10iYS132199110-199308

BULB 1.4W

main83101-30050×2iJZS133,LS130,YS132..LHD..(B,D)199110-199512

2.0W OR 3.0W,OD=11.3

main83101-32020iJZS133,LS130,YS132..LHD..(B,D)199110-199512

2.0W OR 3.0W,OD=12.2

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-30120iJZS133..RHD..4FC..GEN199110-199512

main83149-30140iJZS133..5F..Q199110-199308

main83149-30160iGS131..RHD..G199110-199512

main83149-30180iGS131..Q199110-199512

main83149-30181iJZS133199512-200104

main83149-30200iJZS133..4FC..GCC199110-199512

main83149-30220iJZS133..5F..GCC..(G,J)199110-199308

main83149-30240iJZS133..LHD..4FC..GEN199110-199512

main83149-30260iJZS133..5F..GEN..G199308-199512

HOT AREA SPEC

main83149-30280iGS131..LHD199110-199512

main83149-30520iYS132199110-199512

main83149-30540iLS130..LHD199110-199308

main83149-30560iJZS133..D199110-199512

main83149-30660iLS130..RHD199110-199512

main83149-3A850iJZS133..EECC199110-199308

W(*TRC)

main83149-3A890iJZS133..EECC199110-199308

main83861-30270iGS131199512-199904

83110SPEEDOMETER ASSY

main83110-3A790iJZS133..EECC199110-199308

main83110-3A850iJZS133,YS132..B,D199110-199308

main83110-3A851iJZS133..D199311-199512

main83110-3A860iYS132199110-199308

W/O(TACHOMETER)

main83110-3A861iYS132199308-199512

W/O(TACHOMETER)

main83110-3A870iLS130..LHD199110-199308

main83110-3A880iLS130..LHD199110-199308

W/O(TACHOMETER)

main83110-3F020iLS130..RHD199110-199210

TAXI SPEC

main83110-3F030iJZS133..EECC199110-199204

HONG KONG SPEC

main83110-3F031iJZS133..RHD199311-199512

main83110-3F040iJZS133..RHD..GEN199110-199512

W(TACHOMETER)

main83110-3F050iGS131..RHD199110-199311

main83110-3F051iGS131..RHD199311-199512

main83110-3F060iJZS133..LHD..(ROY,SAL)199110-199311

main83110-3F070iJZS133..LHD..GEN199110-199512

MAX 150MPH,W(TACHOMETER)

main83110-3F080iGS131..LHD199110-199311

main83110-3F081iGS131..LHD199311-199904

main83110-3F130iLS130..RHD199110-199311

main83110-3F131iLS130199311-199512

main83110-3F280iJZS133..LHD..GEN199311-199512

MAX 240KM/H,W(TACHOMETER)

main83110-3F290iYS132199311-199512

main83220-30090iJZS133199512-200104

83132CASE, COMBINATION METER

main83132-30140iYS132199110-199308

main83132-30141iYS132199308-199512

main83132-30160iLS130..LHD199110-199308

main83132-30180iJZS133..D199110-199308

main83132-30181iJZS133..D199308-199512

main83132-30280iLS130..RHD199110-199308

main83132-30281iLS130199308-199512

main83132-30360iGS131..LHD199308-199512

HOT AREA SPEC

main83132-3A660iJZS133..RHD..4FC199110-199512

main83132-3A680iGS131,JZS133..RHD..5F..G199110-200104

main83132-3A740iJZS133..Q199512-200104

main83132-3A760iJZS133..5F..Q199110-199308

main83132-3A800iGS131,JZS133..LHD..4FC199110-199904

main83132-3A820iJZS133..5F..(G,Q)199308-199512

83133PLATE, COMBINATION METER, NO.1

main83133-30410iGS131,JZS133..RHD199110-200104

main83133-30470iGS131,JZS133..LHD..(ROY,SAL)199110-199904

main83133-30530iLS130..LHD199110-199308

main83133-30550iJZS133,YS132..B,D199110-199512

main83133-3A290iLS130..RHD199110-199512

83159BRELAY ASSY, METER

main83159-22370iJZS133199110-200104

83270TACHOMETER ASSY, ENGINE

main83242-3A320iJZS133..EECC199110-199308

W(TRACTION CONTROL)

main83242-3A340iJZS133..RHD..4FC199110-199512

main83242-3A341iJZS133..Q199512-200104

main83242-3A360iJZS133..5F..Q199111-199308

main83242-3A420iGS131..Q199110-199512

main83242-3A440iGS131,JZS133..RHD..5F..G199110-200104

main83242-3A460iJZS133..LHD..4FC199110-199512

main83242-3A480iJZS133..LHD..5F..(ROY,SAL)199110-199512

main83242-3A500iGS131..LHD199110-199512

main83881-30270iGS131199512-199904

83310GAGE ASSY, FUEL RECEIVER

main83243-3A230iJZS133..EECC199110-199308

W(*TRC)

main83243-3A232iJZS133..Q199512-200104

main83243-3A250iJZS133..EECC199110-199308

main83243-3A350iJZS133..RHD..GEN199110-199308

main83243-3A351iGS131,JZS133..RHD199308-199512

main83243-3A352iJZS133..G199512-200104

main83243-3A370iGS131..RHD199110-199308

main83243-3A390iJZS133..GCC..(G,J)199110-199308

main83243-3A391iGS131..LHD;JZS133..LHD..4FC;JZS133..5F..GCC..(G,Q)199308-199904

main83243-3A410iJZS133..5F..J199212-199308

CHINA SPEC

main83243-3A430iGS131..LHD199110-199308

main83243-3A490iJZS133,LS130,YS132..LHD..(B,D)199110-199308

main83243-3A491iJZS133,YS132..B,D199308-199512

main83243-3A530iLS130..RHD199110-199512

main83243-3A670iJZS133..5F..GEN199308-199512

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-3A090iJZS133..EECC199110-199308

main83244-3A130iJZS133..EECC199204-199210

SINGAPORE SPEC OR HONG KONG SPEC

main83244-3A131iGS131,JZS133..RHD199308-200104

main83244-3A150iJZS133..LHD..4FC..GEN199110-199308

HOT SPEC

main83244-3A151iJZS133..GCC..(G,Q)199308-199512

HOT SPEC

main83244-3A170iJZS133..LHD..4FC..GEN199110-199308

main83244-3A171iGS131,JZS133..LHD..GEN199308-199904

main83244-3A190iJZS133..5F..J199212-199308

CHINA SPEC

main83244-3A230iLS130,YS132..LHD199110-199308

main83244-3A231iYS132199308-199512

main83244-3A250iYS132199110-199308

HOT SPEC

main83244-3A251iYS132199308-199512

HOT SPEC

main83244-3A270iJZS133..5F..GEN..G199110-199308

HOT SPEC

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iJZS133..EECC199110-199308

86650GBUZZER ASSY

main86650-12030iJZS133..EECC199110-199308

main86650-30110iJZS133..GCC199110-199512

main86650-30120iLS130..RHD..4F199110-199512

9009900211

main90099-00211

9009900225

main90099-00225

9009900917

main90099-00917

9009900952

main90099-00952

9015940027

main90159-40027

9354014020

main93540-14020

9356755016

main93567-55016

19 parts on this diagram · 5 diagrams in section
