Toyota CROWN — METER

0001 1 0002 1 0003 1 0004 1 0005 1

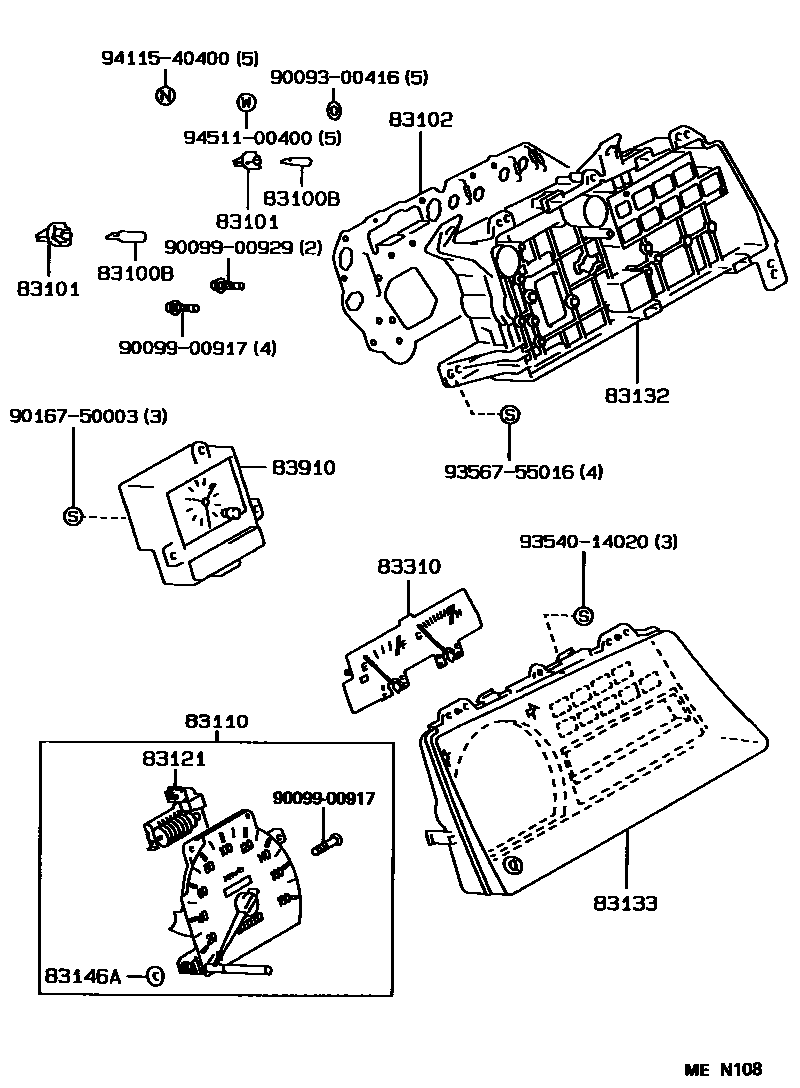

83100BBULB, COMBINATION METER, NO.1

main83109-24010×2iMS135..LHD198709-199110

12V 1.4W,GREEN CAP

main83109-24030×3iMS135..RHD;MS133..SAL,SALEX;GS131,MS132..LHD..(ROY,SAL)198908-199110

12V3.4W W(GREEN CAP),SOCKET:83101-14030

main83109-24040iMS135..RHD;MS132..DLX..GEN;GS131,MS132,133..ROY,SAL,SALEX198709-198908

12V1.4W W(GREEN CAP)

main83109-30020iLS130..RHD198709-198908

12V3.4W W(GREEN CAP)

main83109-30050×2iLS130..RHD198709-198908

12V 3.4W,W/GREEN CAP

main83109-30060iLS130..4H198908-199110

12V 2.0W,W/GREEN CAP,SOCKET:83101-30050

main83109-30070×2iLS130..4H198908-199110

14V 2.0W,W/O SOCKET,SOCKET:83101-30060

main83119-24070×9iGS131,MS132,133..4FC198908-199110

12V 1.4W W(SOCKET)

main83119-24090×2iMS135..RHD;GS131,MS132,133..4FC198908-199110

12V1.4W GREEN W(SKT)

main83119-24130×7iGS131,MS132,133..4FC198902-199110

12V1.4W WHITE W(SKT)

main90981-11018×7iMS132..LHD..(ROY,SAL)..GEN198709-198908

12V 1.2W W/O SOCKET

main99132-12034×3iMS135..RHD;GS131,LS130..LHD;MS132,133..ROY,SAL,SALEX198908-199110

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3iLS130198908-199110

OD=18.0,BLACK

main83101-14040×10iMS135..LHD198908-199110

OD=11.3,BLACK

main83101-30040×2iLS130..RHD198709-199110

OD=18.5,BLUE

main83101-30050iLS130..RHD198709-199110

OD=11.3,BLUE

main83101-30060×2iLS130..RHD198709-199110

OD=11.3,BLUE(*81)

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-30490iMS135..RHD198908-199110

NO.2

main83149-30510iMS133..SAL..GEN198908-199110

NO.2

main83149-30530iMS132,133..(SAL,SALEX)..GCC198908-199110

HOT SPEC,NO.2

main83149-30550iGS131,MS132..LHD..(ROY,SAL)..GEN198908-199110

NO.2

main83149-30730iMS133..STD198908-199110

main83149-30750iMS132,YS132..STD198908-199110

main83149-30770iLS130..4F198908-199110

main83149-30790iMS132..DLX198908-199110

main83149-30870iLS130..4H198908-199110

main83149-3A010iLS130..4H198908-199110

W(KM/MPH SPEEDOMETER)

main83247-3A020iMS132..LHD..5F..GEN198709-198908

NO.2

main83247-3A180iMS132..DLX..GEN198709-198809

NO.1

main83247-3A200iMS132..5F..STD198709-198908

main83247-3A220iMS132,YS132..LHD..STD198709-198908

main83247-3A240iLS130..LHD198709-198908

main83247-3A260iMS132..DLX..GCC198709-198908

main83247-3A280iMS135..RHD198709-199110

NO.1

main83247-3A460iMS135..LHD198709-199110

main83247-3A520iMS132,133..LHD..4FC198709-199110

NO.1

main83247-3A540iMS133..4FC..GEN198908-199110

NO.1

main83247-3A620×11iLS130..RHD198709-198908

main83247-3A660iLS130..RHD..4F198709-198711

W(KM/MPH SPEEDOMETER)

main83247-3A680iMS132..DLX..GEN198709-198809

NO.2

main83247-3A850iMS135..RHD198709-198908

NO.2

sub83247-3A790

main83247-3A870iGS131,MS132..RHD..4FC198709-198908

NO.2

sub83247-3A790

main83247-3A890iMS132..LHD..5F..GEN198709-198908

HOT SPEC

83110SPEEDOMETER ASSY

main83110-3A360iMS132..RHD..(ROY,SAL)198902-198908

main83110-3A361iMS133..SAL..GEN198908-199110

main83110-3A370iMS132..RHD..(ROY,SAL)198709-198908

KM/MPH

main83110-3A371iMS133..SAL..GEN198908-199110

KM/MPH

main83110-3A380iMS132..LHD..(ROY,SAL)..GEN198709-198908

HOT SPEC

main83110-3A381iMS132,133..(SAL,SALEX)..GCC198908-199110

HOT SPEC

main83110-3A390iMS132..LHD..(ROY,SAL)..GEN198709-198908

KM/MPH

main83110-3A391iMS132..(ROY,SAL)..GEN198908-199110

KM/MPH

main83110-3A420iMS132,133..RHD..(DLX,STD)198709-199110

main83110-3A430iMS132..DLX..GEN198709-198809

KM/MPH

main83110-3A440iMS132,YS132..LHD..STD198709-199110

main83110-3A450iMS132,YS132..LHD..STD198709-199110

KM/MPH

main83110-3A480iMS132..DLX..GCC198709-199110

main83110-3A530iLS130..RHD198709-198908

main83110-3A531iLS130..4H198908-199110

main83110-3A540iLS130..RHD..4F198709-198711

KM/MPH

main83110-3A541iLS130..4H198908-199110

KM/MPH

main83110-3A550iMS132..LHD..(ROY,SAL)..GEN198709-198908

main83110-3A551iGS131,MS132..LHD..(ROY,SAL)..GEN198908-199110

main83110-3A570iMS135..RHD198709-198908

main83110-3A571iMS135..RHD198908-199104

main83110-3A572iMS135..RHD199104-199110

main83110-3A580iMS135..RHD198709-198908

KM/MPH

main83110-3A581iMS135..RHD198908-199104

KM/MPH

main83110-3A582iMS135..RHD199104-199110

KM/MPH

main83110-3A590iGS131..ROY198908-199110

main83110-3A680iGS131198902-198908

83121COUNTER, TOTAL

main83121-30250iMS135..LHD198709-199110

main83121-30270iLS130198709-199110

main83121-30290iLS130..RHD..4F198709-198711

W(KM/MPH SPEEDOMETER)

83132CASE, COMBINATION METER

main83132-3A150iMS135..LHD198709-199110

main83132-3A230iGS131,MS13#..RHD..(ROY,SAL)198709-199110

main83132-3A240iMS133..STD198908-199110

main83132-3A250iGS131,MS132,133..LHD..(ROY,SAL,SALEX)198709-199110

main83132-3A300iLS130..4H198908-199110

main83132-3A310iLS130..RHD198709-198908

main83132-3A610iMS132..DLX..GEN198709-198809

main83132-3A630iMS132..5F..STD198709-198908

main83132-3A650iMS132,YS132..LHD..STD198709-199110

main83132-3A670iLS130..LHD198709-199110

main83132-3A710iMS132..DLX..GCC198709-199110

83133PLATE, COMBINATION METER, NO.1

main83133-30390iMS135..LHD198709-199110

NO.1

main83133-30410iGS131,MS13#..RHD..(ROY,SAL)198709-199110

main83133-30470iGS131,MS132,133..LHD..(ROY,SAL,SALEX)198709-199110

main83133-30510iMS132,133..RHD..(DLX,STD)198709-199110

main83133-30530iLS130..LHD198709-199110

main83133-30550iMS132,YS132..LHD..(DLX,STD)198709-199110

main83133-30770iMS135..LHD198709-199110

NO.2

main83133-30790iMS135..LHD198709-199110

NO.3

main83133-3A030iLS130..RHD198709-199110

83146ACOVER, SPEEDMETER

main83146-22010×7iMS135..LHD198709-199110

NO.1

main83146-30780iMS132,133..LHD..4FC198709-199110

main83146-30890iGS131,MS133,135..RHD..ATM198908-199110

main83146-32030×3iMS135..LHD198709-199110

NO.2

main83153-30800iLS130198709-199110

NO.1

83310GAGE ASSY, FUEL RECEIVER

main83243-30490iGS131,MS132..RHD..(ROY,SAL)198709-198908

main83243-30510iMS135..RHD198709-198908

main83243-30530iMS132..LHD..(ROY,SAL)..GEN198709-198908

HOT SPEC

main83243-30550iMS132..LHD..(ROY,SAL)..GEN198709-198908

main83243-30570iMS132,133..RHD..(DLX,STD)198709-199110

main83243-30610iLS130,MS132,YS132..LHD..(DLX,STD)198709-199110

main83243-30710iLS130..RHD198709-198908

main83243-30790iLS130..4H198908-199110

main83243-3A010iMS132,133..(SAL,SALEX)..GCC198908-199110

HOT SPEC

main83243-3A030iGS131,MS132..LHD..(ROY,SAL)..GEN198908-199110

main83243-3A130iMS135..RHD198908-199110

main83243-3A150iMS133..SAL..GEN198908-199110

83910CLOCK ASSY

main83910-30460iMS132,135..RHD..ROY198709-198712

main83910-30461iGS131,MS132,135..RHD..ROY198712-198908

main83910-30462iGS131,MS135..RHD198908-199110

main83910-30470iMS132..LHD..ROY;MS132..DLX,SAL,STD;LS130,MS133,135,YS132..LHD198709-198712

main83910-30471iMS132..LHD..ROY;MS132..DLX,SAL,STD;LS130,MS133,135,YS132..LHD198712-198908

main83910-30472iMS133;GS131,LS130,MS132,135,YS132..LHD198908-199110

main83910-30480iLS130..RHD198709-199110

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9016750003

main90167-50003

9354014020

main93540-14020

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400
