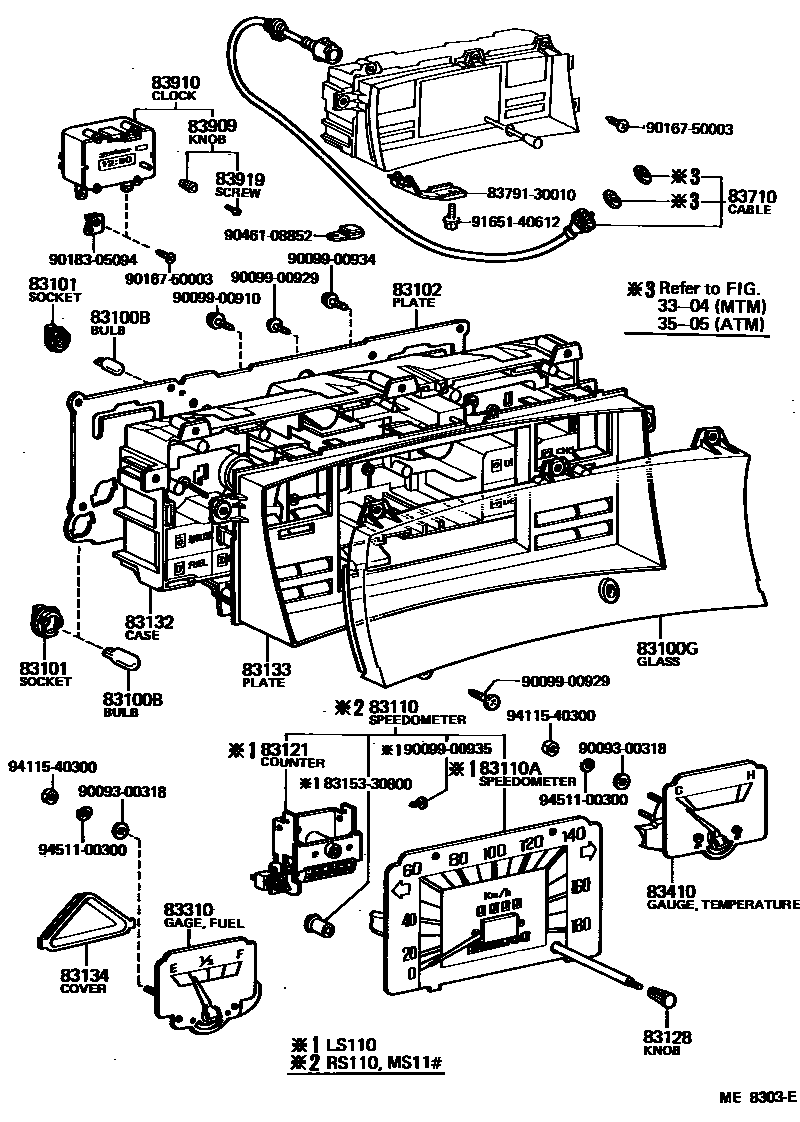

Toyota CROWN — METER

0001 1 0002 1 0003 1 0004 1

3304

3505

83100BBULB, COMBINATION METER, NO.1

main90981-11018×11iLS110,MS112,RS110198108-198307

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×12iLS110,MS11#,RS110197909-198108

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-30550iMS112..RHD198108-198307

main83138-30570iRS110..RHD198108-198307

main83138-30590iLS110..RHD..BTP198108-198307

main83138-30610iLS110..RHD..DLX198108-198307

main83138-30630iMS112..LHD198108-198307

main83138-30750iRS110..LHD198108-198307

main83138-30770iLS110..LHD..BTP198108-198307

main83138-30790iLS110..LHD..DLX198108-198307

main83138-30820iLS110..RHD197909-198108

main83138-30830iMS11#,RS110..RHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83138-30840iLS110..LHD197909-198108

main83138-30850iRS110..LHD;MS11#..LHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83138-30860iMS11#..RHD197909-198108

W/TACHOMETER

main83138-30870iMS11#..LHD..(DLX,ROY,SAL)197909-198108

W/TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×5iLS110,MS112,RS110198108-198307

12V 3.4W

main83101-14040×11iLS110,MS112,RS110198108-198307

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-30110iLS110..4F..BTP198301-198307

SINGAPORE SPEC

main83247-30130iMS112,RS110198108-198307

main83247-30150iLS110198108-198307

main83247-30370iMS112..LHD..(4F,4FC,4H,5F)..CBR198208-198212

SAUDI ARABIA SPEC

main83247-30850iLS110197909-198008

main83247-30851iLS110198008-198108

main83247-30860iMS11#,RS110..(3FC,3HC,4F,4H,5F)..(BTP,DLX)197909-198008

W/O TACHOMETER

sub83247-30840

main83247-30880iMS11#..DLX,ROY,SAL197909-198008

W/TACHOMETER

main83247-30881iMS112..DLX,ROY,SAL198008-198108

W/TACHOMETER

sub83247-30871

main83247-30890iMS112,RS110..RHD..(BTP,DLX)198008-198108

W/O TACHOMETER,W/READ SW

sub83247-30840

83110SPEEDOMETER ASSY

main83110-30670iMS112,RS110..LHD..MTM..(BTP,DLX)198008-198108

KM

main83110-30680iMS112,RS110..LHD..MTM..(BTP,DLX)..CBR198008-198108

MILE & KM

main83110-30690iMS112..RHD..CBR198008-198108

KM,W/TACHOMETER

main83110-30700iMS11#..RHD..(EUR,GEN)197909-198108

MILE & KM,W/TACHOMETER

main83110-30710iMS112..LHD..(BTP,DLX)..CBR198008-198108

W/O TACHOMETER,W/READ SW

main83110-30740iMS112,RS110..(BTP,DLX)..CBR198008-198108

MILE & KM,W/READ SW

main83110-30880iRS110..BTP,DLX198108-198307

KM

main83110-30890iRS110..BTP,DLX198108-198307

MILE & KM

main83110-3A010iMS112..LHD198108-198307

KM

main83110-3A030iMS112..RHD..(EUR,GEN)198108-198307

MILE & KM

83110ASPEEDOMETER SUB-ASSY

main83111-30810iLS110197909-198008

KM

main83111-30811iLS110198008-198108

KM

main83111-30820iLS110..RHD197909-198008

MILE & KM

main83111-30821iLS110..RHD198008-198108

MILE & KM

83121COUNTER, TOTAL

main83121-30800iLS110197909-198008

KM

main83121-30801iLS110198008-198108

KM

main83121-30810iLS110..RHD197909-198008

MILE & KM

main83121-30811iLS110..RHD198008-198108

MILE & KM

main83121-30860iLS110198108-198307

KM

main83121-30880iLS110..RHD198108-198307

MILE & KM

83128KNOB, TRIP COUNTER

main83128-10260iLS110,MS11#,RS110197909-198307

83132CASE, COMBINATION METER

main83132-30090iRS110..RHD198108-198307

main83132-30110iMS112..RHD..(EUR,GEN)198108-198307

main83132-30130iMS112..ARL198108-198307

main83132-30150iLS110..RHD198108-198307

main83132-30170iLS110..LHD198108-198307

main83132-30190iMS112..LHD..CBR198108-198212

MIDDLE EAST COUNTRY SPEC

main83132-30210iRS110..LHD..(BTP,DLX)198108-198307

main83132-30250iMS112..LHD198108-198307

main83132-30270iMS112..LHD..(4F,4FC,4H,5F)..CBR198208-198212

SAUDI ARABIA SPEC

main83132-30830iMS11#,RS110..RHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83132-30840iLS110..RHD197909-198108

main83132-30850iLS110..LHD197909-198108

main83132-30860iRS110..LHD;MS11#..LHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83132-30870iMS11#..RHD197909-198008

W/TACHOMETER

main83132-30871iMS112..RHD198008-198108

W/TACHOMETER

main83132-30880iMS11#..LHD..(DLX,ROY,SAL)197909-198108

W/TACHOMETER

83133PLATE, COMBINATION METER, NO.1

main83133-30050iLS110,MS112,RS110..RHD198108-198307

main83133-30070iLS110,MS112,RS110..LHD198108-198307

main83133-30840iLS110..RHD197909-198108

main83133-30850iMS11#,RS110..RHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83133-30860iLS110..LHD197909-198108

main83133-30870iRS110..LHD;MS11#..LHD..(BTP,DLX)197909-198108

W/O TACHOMETER

main83133-30890iMS11#..RHD..(EUR,GEN)197909-198108

W/TACHOMETER

main83133-30900iMS11#..ARL197909-198108

W/TACHOMETER

main83133-30910iMS11#..LHD..(DLX,ROY,SAL)197909-198108

W/TACHOMETER

83134COVER, COMBINATION METER, NO.1

main83146-30800iRS110;LS110,MS11#..BTP,DLX197909-198108

W/O TACHOMETER

main83146-30810iMS11#..DLX,ROY,SAL197909-198108

W/TACHOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-30800iRS110;LS110,MS11#..BTP,DLX197909-198108

W/O TACHOMETER

main83243-30810iMS11#..DLX,ROY,SAL197909-198108

W/TACHOMETER

main83243-30820iMS11#..LHD..(DLX,ROY,SAL)..CBR197909-198108

W/TACHO,MIDDLE EAST COUNTRY

main83243-30850iMS112..LHD..CBR198108-198307

MIDDLE EAST COUNTRY SPEC

main83243-30870iLS110,MS112,RS110198108-198307

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-30800iRS110;LS110,MS11#..BTP,DLX197909-198108

W/O TACHOMETER

main83244-30820iMS11#,RS110..LHD..(BTP,DLX)..GEN197909-198108

W/O TACHO,MIDDLE EAST COUNTRY

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-30401iLS110,RS110..RHD..4H198008-198108

L=1680

main83710-30431iLS110,MS111,RS110..RHD..4F197909-198008

L=1330

main83710-30460iLS110,MS112..RHD..(4F,5F)198108-198307

L=1360

main83710-30470iLS110,MS112,RS110..LHD..MTM198108-198307

L=1760

main83710-30480iMS112..RHD..4H198008-198108

L=1410

main83710-39625iLS110,MS112..RHD..ATM..(EUR,GEN)197909-198307

L=1780

main83710-39635iLS110,MS111,RS110..LHD..4H197909-198008

L=1400

main83710-39655iLS110,MS112..5F..EUR198008-198108

L=1610

main83710-39665iMS111..LHD..ATM197909-198008

L=1450

main83710-39685iLS110,MS112..LHD..ATM197909-198307

L=1500

main83710-39695iMS111..RHD..ATM..GEN198006-198008

L=1730

main83710-39705iMS111..ARL198006-198008

L=1730

main83710-39715iMS112..ARL198008-198307

L=1760

83909KNOB, CLOCK

main83909-14012iRS110198108-198307

main83909-30250iMS112..ARL,GEN198108-198307

DIGITAL

sub83909-12230

83910CLOCK ASSY

main83910-30240iLS110,MS112..DLX198108-198307

main83910-30250iMS112..ARL,GEN198108-198307

DIGITAL

main83910-30320iLS110..BTP198108-198307

83919SCREW, CLOCK

main83919-14012iLS110..BTP198108-198307

main83919-30250iLS110,MS11#,RS110..DLX,ROY,SAL197909-198108

DIGITAL

8315330800GROMMET, METER GLASS

main83153-30800

8379130010

main83791-30010

9009300318

main90093-00318

9009900910

main90099-00910

9009900929

main90099-00929

9009900934

main90099-00934

9009900935

main90099-00935

9016750003

main90167-50003

9018305094

main90183-05094

9046108852

main90461-08852

9165140612

main91651-40612

9411540300

main94115-40300

9451100300

main94511-00300

32 parts on this diagram · 4 diagrams in section
