Toyota CROWN — MAT & CARPET

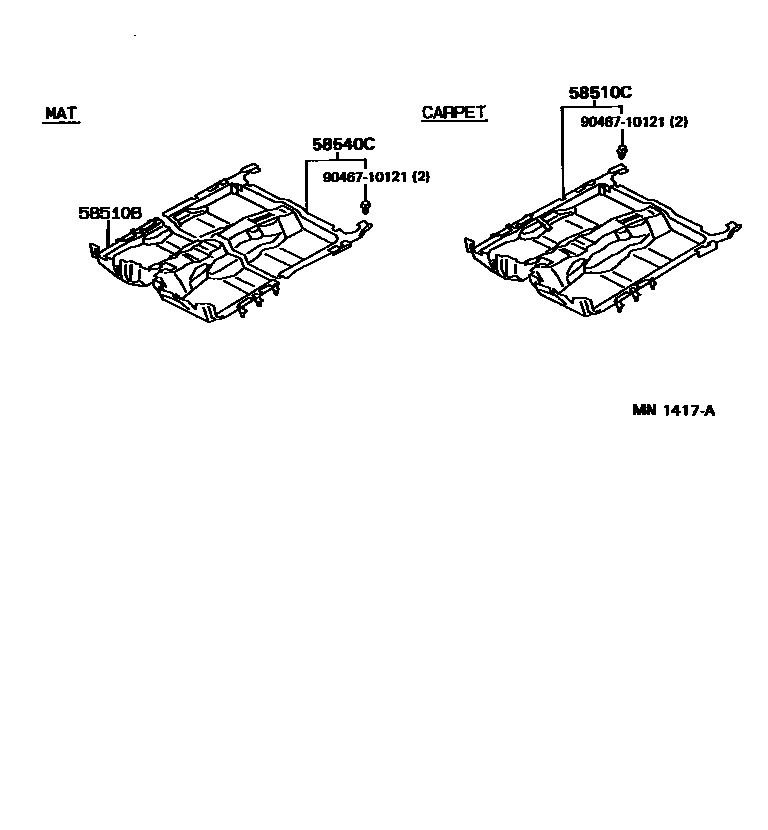

Parts diagram
58510BMAT, FRONT FLOOR, FRONT
main58510-3A550-C0i199110-199512
BLACK,TRIM8#
main58510-3A800-C0i199110-199512
W(HEATER),BLACK,TRIM8#
main58510-3F360-C0i199110-199512
BLACK,TRIM8#
main58510-3F380-C0i199110-199512
BLACK,TRIM8#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-3F320-E0i199110-199207
QUARTZ,TRIM4#; W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3F320-J0i199110-199207
DK.BLUE,TRIM8#; W(REAR POWER SEAT),DK.BLUE,TRIM8#
main58510-3F321-E0i199207-199512
QUARTZ,TRIM4#
main58510-3F321-J0i199207-200104
W(REAR POWER SEAT),DK.BLUE,TRIM8#
main58510-3F340-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F340-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F350-E0×2i199110-199308
QUARTZ,TRIM4#
main58510-3F350-J0×2i199110-199308
DK.BLUE,TRIM8#
main58510-3F430-B0i199110-199308
SHADOW GRAY,TRIM1#
main58510-3F430-E0i199110-199308
QUARTZ,TRIM4#
main58510-3F430-J0i199110-199308
DK.BLUE,TRIM8#
main58510-3F510-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F520-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F530-E0i199110-199512
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3F530-J0i199110-199512
W(REAR POWER SEAT),DK.BLUE,TRIM8#
main58510-3F540-E0i199110-199207
QUARTZ,TRIM4#
main58510-3F540-J0i199110-199207
DK.BLUE,TRIM8#
main58510-3F541-E0i199207-199512
QUARTZ,TRIM4#
main58510-3F541-J0i199207-199512
DK.BLUE,TRIM8#
main58510-3F550-J0i199110-199512
DK.BLUE,TRIM8#; W(FABRIC SEAT),DK.BLUE,TRIM8#
main58510-3F580-E0i199512-200104
QUARTZ,TRIM4#
main58510-3F580-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F600-E0i199110-199512
QUARTZ,TRIM4#
main58510-3F600-J0i199110-199512
DK.BLUE,TRIM8#
main58510-3F620-J0i199308-199512
W(FABRIC SEAT) & W(HEATER & BOOST VENTILATOR),DK.BLUE,TRIM8#
main58510-3K050-E0i199308-199512
QUARTZ,TRIM4#
main58510-3K050-J0i199308-199512
DK.BLUE,TRIM8#
main58510-3K060-E0i199308-199512
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K060-J0i199308-199512
W(REAR POWER SEAT),DK.BLUE,TRIM8#
58540CMAT ASSY, FLOOR, REAR
main58540-3A071-C0i199110-199512
BLACK,TRIM8#
main58540-3A081-C0i199110-199512
BLACK,TRIM8#
9046710121
main90467-10121

4 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CROWN

This section contains 4 genuine Toyota parts for the MAT & CARPET system of the Toyota CROWN. Key components include: MAT, FRONT FLOOR, FRONT, CARPET ASSY, FRONT FLOOR, FRONT, MAT ASSY, FLOOR, REAR.
