Toyota CROWN — MAT & CARPET

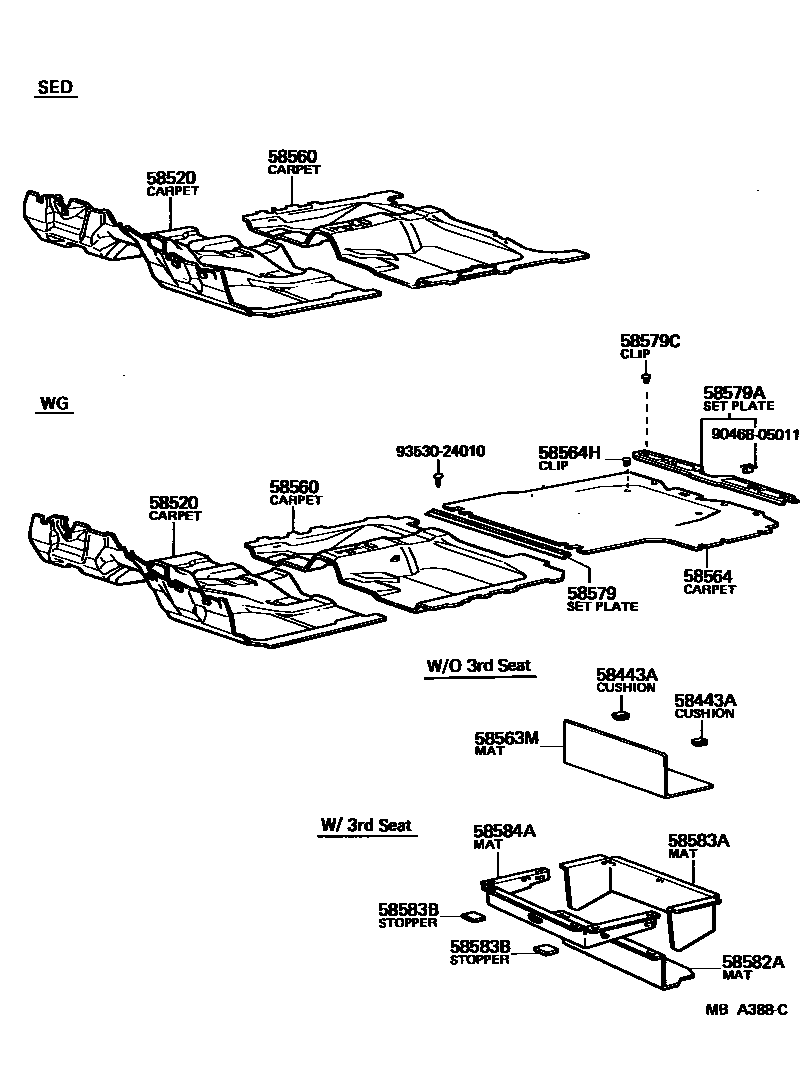

Parts diagram
58443ACUSHION, DECK COMPARTMENT BOX
main58443-91701×2i197909-198307
58520CARPET ASSY, FRONT FLOOR
main58510-30520-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30520-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30520-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30530-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30530-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30530-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30550-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-30550-04i197909-198108
W/*BV,BLUE,BLUE,TRIM8#
main58510-30550-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-30560-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30560-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30560-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30580-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30580-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30580-05i198108-198307
W/*HEA,BEIGE,BEIGE,TRIM4#
main58510-30620-02i197909-198108
W/*HEA,DARK WINE,RED/MAROON,TRIM3#
main58510-30620-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30620-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30620-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30620-15i198108-198307
W/*HEA,BEIGE,BEIGE,TRIM4#
main58510-30630-02i197909-198108
W/*HEA,DARK WINE,RED/MAROON,TRIM3#
main58510-30630-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30630-04i198108-198307
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30630-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30630-15i198108-198307
W/*HEA,BEIGE,BEIGE,TRIM4#
main58510-30660-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-30660-04i197909-198108
W/*BV,BLUE,BLUE,TRIM8#
main58510-30660-05i198108-198307
W/*BV,BEIGE,BEIGE,TRIM4#
main58510-30670-02i197909-198108
W/*HEA,DARK WINE,RED/MAROON,TRIM3#
main58510-30670-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30670-04i198108-198307
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30670-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30670-15i198108-198307
W/*HEA,BEIGE,BEIGE,TRIM4#
main58510-30690-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-30690-04i198108-198307
W/*BV,BLUE,BLUE,TRIM8#
main58510-30690-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-30700-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-30700-04i198108-198307
W/*BV,BLUE,BLUE,TRIM8#
main58510-30700-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-30720-02i197909-198108
W/*HEA,DARK WINE,RED/MAROON,TRIM3#
main58510-30720-03i198108-198307
W/*HEA,GRAY,GRAY,TRIM1#
main58510-30720-04i197909-198108
W/*HEA,BLUE,BLUE,TRIM8#
main58510-30720-05i197909-198108
W/*HEA,GREIGE,BEIGE,TRIM4#
main58510-30720-15i198108-198307
W/*HEA,BEIGE,BEIGE,TRIM4#
main58510-3A010-02i197909-198108
W/*BV,DARK WINE,RED/MAROON,TRIM3#
main58510-3A010-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-3A010-04i198108-198307
W/*BV,BLUE,BLUE,TRIM8#
main58510-3A010-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-3A010-15i198108-198307
W/*BV,BEIGE,BEIGE,TRIM4#
main58510-3A020-02i197909-198108
W/*BV,DARK WINE,RED/MAROON,TRIM3#
main58510-3A020-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-3A020-04i198108-198307
W/*BV,BLUE,BLUE,TRIM8#
main58510-3A020-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-3A020-15i198108-198307
W/*BV,BEIGE,BEIGE,TRIM4#
main58510-3A030-02i197909-198108
W/*BV,DARK WINE,RED/MAROON,TRIM3#
main58510-3A030-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-3A030-04i198108-198307
W/*BV,BLUE,BLUE,TRIM8#
main58510-3A030-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-3A030-15i198108-198307
W/*BV,BEIGE,BEIGE,TRIM4#
main58510-3A040-02i197909-198108
W/*BV,DARK WINE,RED/MAROON,TRIM3#
main58510-3A040-03i198108-198307
W/*BV,GRAY,GRAY,TRIM1#
main58510-3A040-04i197909-198108
W/*BV,BLUE,BLUE,TRIM8#
main58510-3A040-05i197909-198108
W/*BV,GREIGE,BEIGE,TRIM4#
main58510-3A040-15i198108-198307
W/*BV,BEIGE,BEIGE,TRIM4#
58560CARPET ASSY, FLOOR, REAR
main58540-30430-03i198108-198307
GRAY,GRAY,TRIM1#
main58540-30430-04i197909-198108
BLUE,BLUE,TRIM8#
main58540-30430-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58540-30450-03i198108-198307
GRAY,GRAY,TRIM1#
main58540-30450-04i197909-198108
BLUE,BLUE,TRIM8#
main58540-30450-05i198108-198307
BEIGE,BEIGE,TRIM4#
main58540-30460-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main58540-30460-03i198108-198307
GRAY,GRAY,TRIM1#
main58540-30460-04i198108-198307
BLUE,BLUE,TRIM8#
main58540-30460-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58540-30460-15i198108-198307
BEIGE,BEIGE,TRIM4#
main58540-30480-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main58540-30480-03i198108-198307
GRAY,GRAY,TRIM1#
main58540-30480-04i197909-198108
BLUE,BLUE,TRIM8#
main58540-30480-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58540-30480-15i198108-198307
BEIGE,BEIGE,TRIM4#
main58540-91747-04i197909-198108
BLUE,BLUE,TRIM8#
main58540-91747-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58540-91749-04i197909-198108
BLUE,BLUE,TRIM8#
main58540-91749-05i198108-198307
BEIGE,BEIGE,TRIM4#
58563MMAT, 3RD SEAT FLOOR
main58582-91702-04i197909-198108
BLUE,BLUE,TRIM8#
main58582-91702-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58582-91702-15i198108-198307
BEIGE,BEIGE,TRIM4#
58564CARPET, REAR FLOOR
main58571-91702-04i197909-198108
BLUE,BLUE,TRIM8#
main58571-91702-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58571-91703-04i197909-198008
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58571-91703-05i197909-198108
W/3RD SEAT,GREIGE,BEIGE,TRIM4#
main58571-91704-04i198108-198307
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58571-91704-05i198108-198307
W/3RD SEAT,BEIGE,BEIGE,TRIM4#
main58571-91705-04i198108-198307
BLUE,BLUE,TRIM8#
main58571-91705-05i198108-198307
BEIGE,BEIGE,TRIM4#
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-07005-04×3i197909-198108
BLUE,BLUE,TRIM8#
main90467-07005-05×3i197909-198108
GREIGE,BEIGE,TRIM4#
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58573-91703i197909-198108
58579ASET PLATE, REAR FLOOR CARPET, NO.2
main58574-91703-04i197909-198108
BLUE,BLUE,TRIM8#
main58574-91703-05i197909-198108
GREIGE,BEIGE,TRIM4#
main58574-91703-15i198108-198307
BEIGE,BEIGE,TRIM4#
58579CCLIP, REAR FLOOR CARPET SET
main90467-08114-24i197909-198108
BLUE,BLUE,TRIM8#
main90467-08114-45×4i198108-198307
BEIGE,BEIGE,TRIM4#
58582AMAT, 3RD SEAT FLOOR, NO.1
main58582-91701-04i198008-198108
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58582-91701-05i197909-198008
W/3RD SEAT,GREIGE,BEIGE,TRIM4#
main58582-91701-15i198108-198307
W/3RD SEAT,BEIGE,BEIGE,TRIM4#
58583AMAT, 3RD SEAT FLOOR, NO.2
main58583-91701-04i197909-198008
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58583-91701-05i197909-198108
W/3RD SEAT,GREIGE,BEIGE,TRIM4#
main58583-91703-04i198108-198307
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58583-91703-15i198108-198307
W/3RD SEAT,BEIGE,BEIGE,TRIM4#
58583BSTOPPER, 3RD SEAT CUSHION(FOR FLOOR)
main72919-91701×2i197909-198108
W/3RD SEAT
58584AMAT,3RD SEAT FLOOR, NO.3
main58584-91701-04i197909-198008
W/3RD SEAT,BLUE,BLUE,TRIM8#
main58584-91701-05i197909-198008
W/3RD SEAT,GREIGE,BEIGE,TRIM4#
main58584-91701-15i198108-198307
W/3RD SEAT,BEIGE,BEIGE,TRIM4#
9046805011
main90468-05011
9353024010
main93530-24010

15 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota CROWN

This section contains 15 genuine Toyota parts for the MAT & CARPET system of the Toyota CROWN. Key components include: CUSHION, DECK COMPARTMENT BOX, CARPET ASSY, FRONT FLOOR, CARPET ASSY, FLOOR, REAR, MAT, 3RD SEAT FLOOR, CARPET, REAR FLOOR.
