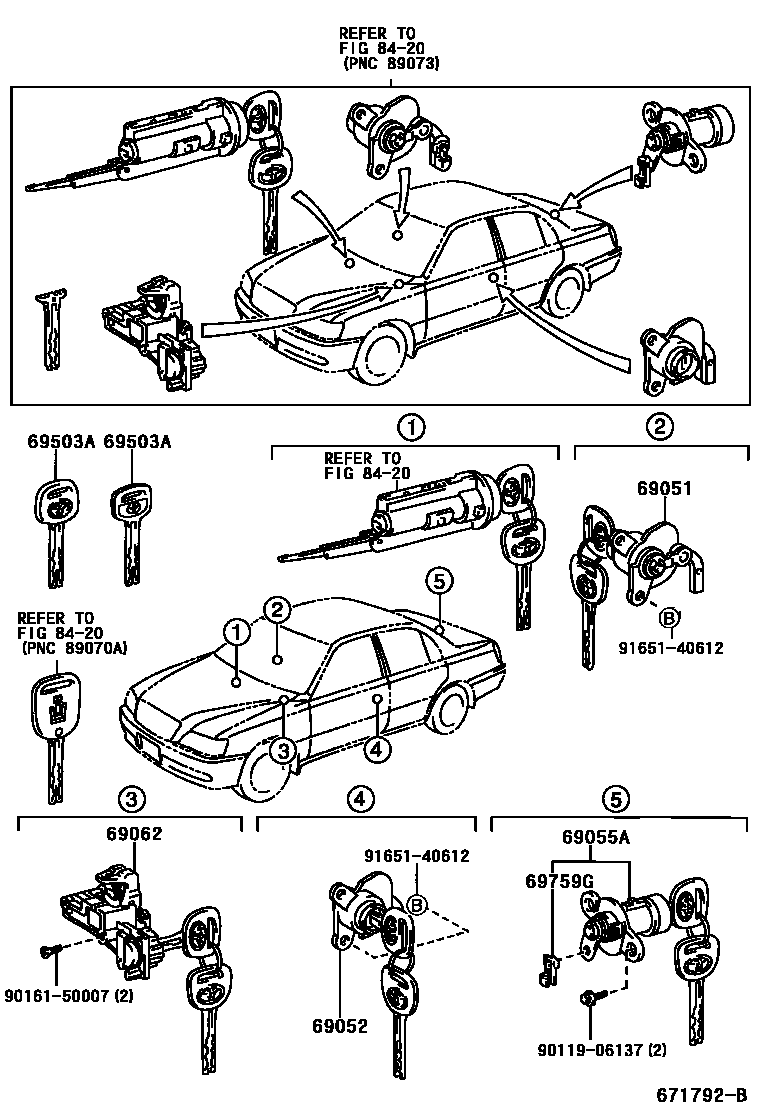

Toyota CROWN — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-30280i199909-200108

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30240i199909-200108

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30390i200108-200312

W(IMMOBILIZER)

main69055-30400i200108-200312

main69055-51010i199909-200108

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30230i200108-200312

69503AKEY, BLANK

main90999-00239i200108-200312

MASTER KEY

main90999-00240i199909-200108

SUB KEY

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24090i199909-200108

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9011906137

main90119-06137

9016150007

main90161-50007

9165140612

main91651-40612

10 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET for Toyota CROWN

This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CROWN. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
