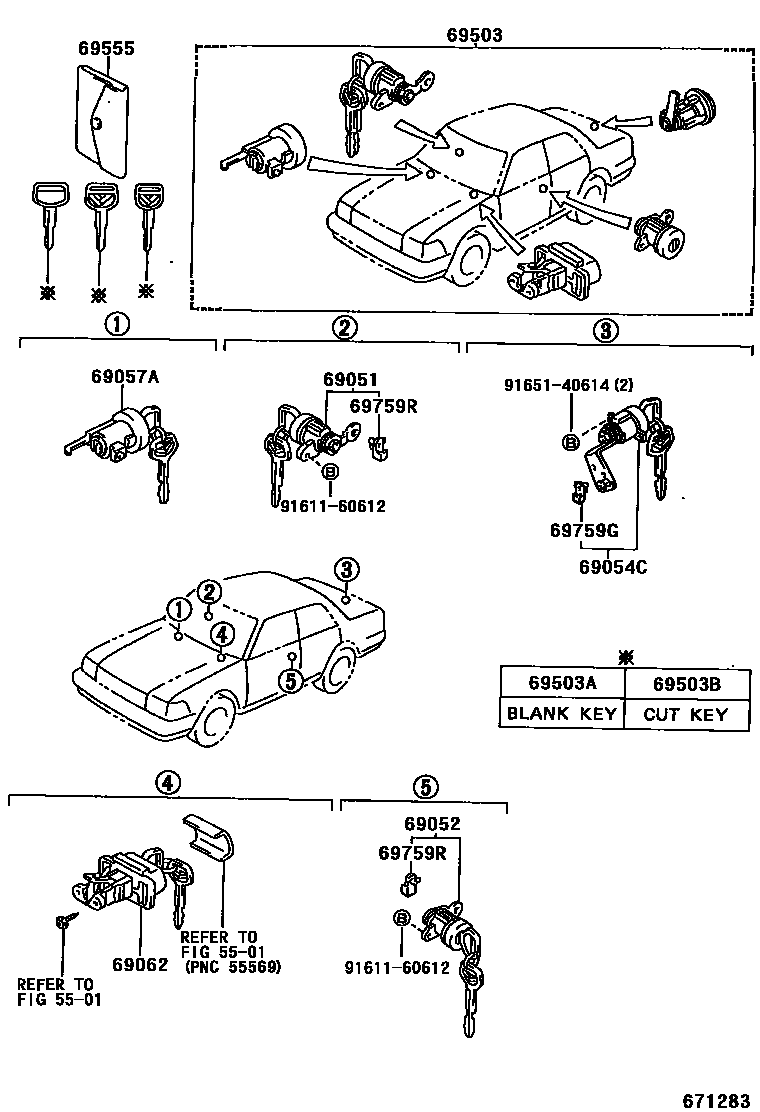

Toyota CROWN — LOCK CYLINDER SET
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
69051CYLINDER & KEY SET, DOOR LOCK, RH
HONG KONG SPEC
69052CYLINDER & KEY SET, DOOR LOCK, LH
HONG KONG SPEC OR THAILAND SPEC
69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
HONG KONG SPEC OR THAILAND SPEC
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
HONG KONG SPEC
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
HONG KONG SPEC
69503CYLINDER SET, LOCK
main69005-30660iGS131,YS132;JZS133..5F..(D,G,J);JZS133,LS130..LHD..MTM..(B,Q);JZS133,LS130..(4FC,4H)..(GCC,GEN)199110-200104
SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC
69503AKEY, BLANK
main90999-00185iGS131,LS130,YS132;JZS133..LHD..5F..Q;JZS133..5F..(D,G,J);JZS133..4FC..(GCC,GEN)199110-200104
MASTER KEY,W(*68)
main90999-00186iGS131,LS130,YS132;JZS133..LHD..5F..Q;JZS133..5F..(D,G,J);JZS133..4FC..(GCC,GEN)199110-200104
MASTER KEY
main90999-00188iGS131,LS130,YS132;JZS133..LHD..5F..Q;JZS133..5F..(D,G,J);JZS133..4FC..(GCC,GEN)199110-200104
SUB KEY
69503BKEY, CUT
MASTER KEY; MASTER KEY,W(WIRELESS DOOR LOCK)
MASTER KEY,SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC
SUB KEY
SUB KEY,SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC
69555COVER, KEY
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
HONG KONG SPEC OR THAILAND SPEC,ORANGE
HONG KONG SPEC,PINK
PINK
GREEN
9161160612
main91611-60612
9165140614
main91651-40614
14 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota CROWN
This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CROWN. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
