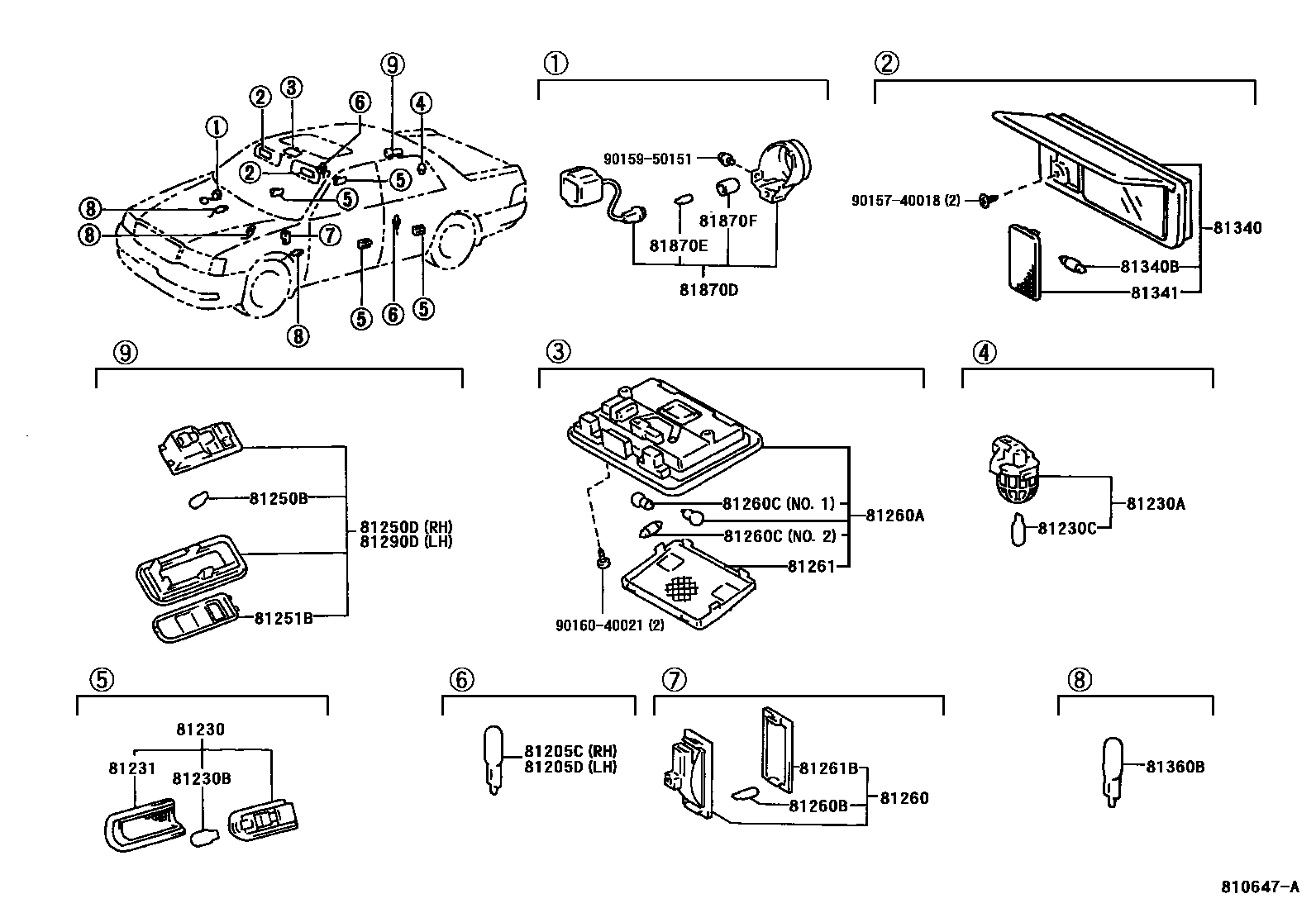

Toyota CROWN — INTERIOR LAMP

81205CBULB, ASH RECEPTACLE LAMP, REAR RH

main90981-11041i199512

81205DBULB, ASH RECEPTACLE LAMP, REAR LH

main90981-11041i199512

81230LAMP ASSY, COURTESY

main81230-30150×4i199512-200108

81230ALAMP ASSY, COURTESY, NO.2

main81230-34010i199512-200108

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4i199512-200108

12V 3.8W

81230CBULB(FOR COURTESY LAMP NO.2)

main99132-12050i199512-200108

12V 5W

81231LENS, COURTESY LAMP

main81231-30150×4i199512-200108

81250BBULB, ROOM LAMP, NO.2

main99132-12050×2i199512-200108

12V 5W

81250DLAMP ASSY, REAR ROOM, RH

main81250-30120-B0i199512-200108

W(REAR COOLER),LT.BLUISH GRAY,TRIM1#

main81250-30120-E0i199512-200108

W(REAR COOLER),QUARTZ,TRIM4#

main81250-30130-B0i199512-200108

LT.BLUISH GRAY,TRIM1#

main81250-30130-E0i199512-200108

QUARTZ,TRIM4#

81251BLENS, REAR ROOM LAMP, RH

main81251-30120×2i199512-200108

81260LAMP ASSY, GLOVE BOX

main81260-50010i199512

81260ALAMP ASSY, MAP

main81260-30200-B0i199512-200108

LT.BLUISH GRAY,TRIM1#

main81260-30200-E0i199512-200108

QUARTZ,TRIM4#

81260BBULB(FOR GLOVE BOX)

main90981-11018i199512-199707

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12005×2i199512

12V 8W,NO.1

main90981-14004i199512

12V 8W,NO.2

81261LENS AND COVER, MAP LAMP

main81261-50060i199512

81261BLENS,GLOVE BOX LAMP

main81261-50010i199512-199707

81290DLAMP ASSY, REAR ROOM, LH

main81290-30130-B0i199512-200108

W(REAR COOLER),LT.BLUISH GRAY,TRIM1#

main81290-30130-E0i199512-200108

W(REAR COOLER),QUARTZ,TRIM4#

main81290-30140-B0i199512-200108

LT.BLUISH GRAY,TRIM1#

main81290-30140-E0i199512-200108

QUARTZ,TRIM4#

81340LAMP ASSY, VANITY

main81340-30080-B0i199512-199609

LT.BLUISH GRAY,TRIM1#,LH; W(AIR BAG),LT.BLUISH GRAY,TRIM1#,LH

main81340-30080-E0i199512-199609

QUARTZ,TRIM4#,LH; W(AIR BAG),QUARTZ,TRIM4#,LH

main81340-30081-B0i199609-199707

LT.BLUISH GRAY,TRIM1#,LH; W(AIR BAG),LT.BLUISH GRAY,TRIM1#,LH

main81340-30081-E0i199609-199707

QUARTZ,TRIM4#,LH; W(AIR BAG),QUARTZ,TRIM4#,LH

main81340-50070-B1i199707-200108

LT.BLUISH GRAY,TRIM1#,LH

main81340-50070-E0i199707-200108

QUARTZ,TRIM4#,LH

main81350-30040-B0i199512-199609

LT.BLUISH GRAY,TRIM1#,RH; W(AIR BAG),LT.BLUISH GRAY,TRIM1#,RH

main81350-30040-E0i199512-199609

QUARTZ,TRIM4#,RH; W(AIR BAG),QUARTZ,TRIM4#,RH

main81350-30041-B0i199609-199707

LT.BLUISH GRAY,TRIM1#,RH; W(AIR BAG),LT.BLUISH GRAY,TRIM1#,RH

main81350-30041-E0i199609-199707

QUARTZ,TRIM4#,RH; W(AIR BAG),QUARTZ,TRIM4#,RH

main81350-50070-B1i199707-200108

LT.BLUISH GRAY,TRIM1#,RH

main81350-50070-E0i199707-200108

QUARTZ,TRIM4#,RH

81340BBULB (FOR VANITY LAMP)

main90981-14007×2i199512-199707

12V 3W

81341LENS, VANITY LAMP

main81341-50060×2i199512

81360BBULB, STEP OR SPOT LAMP

main90981-11041×2i199512

14V 1.4W

81870DLAMP ASSY, KEY CYLINDER

main81870-30100i199512

81870EBULB, KEY CYLINDER LAMP

main90981-11014i199512

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10080i199512-199707

9015740018

main90157-40018

9015950151

main90159-50151

9016040021

main90160-40021

27 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota CROWN

This section contains 27 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CROWN. Key components include: BULB, ASH RECEPTACLE LAMP, REAR RH, BULB, ASH RECEPTACLE LAMP, REAR LH, LAMP ASSY, COURTESY, LAMP ASSY, COURTESY, NO.2, BULB(FOR COURTESY LAMP).
