Toyota CROWN — INTERIOR LAMP

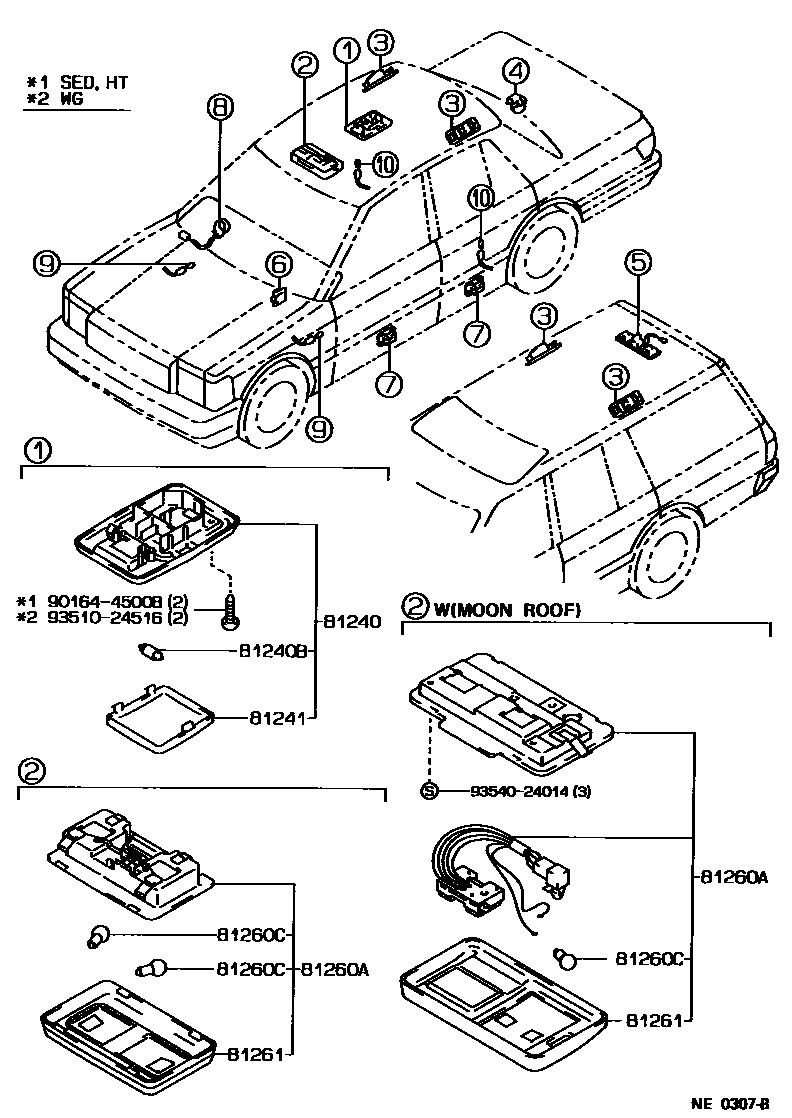

Parts diagram
81240LAMP ASSY, ROOM, NO.1
main81240-22081-04i198709-199110
W(MOON ROOF),DARK BLUE,TRIM8#
main81240-22081-26i198709-199110
W(MOON ROOF),SABLE,TRIM3#,4#
main81240-30070-06i198709-199110
SABLE,TRIM3#,4#
main81240-30070-24i198709-199110
BLUE,TRIM8#
main81240-30100-04i198709-199110
BLUE,TRIM8#
main81240-30100-06i198709-198908
SABLE,TRIM3#; SABLE,TRIM3#,4#
main81240-91701-04i198709-199110
BLUE,TRIM8#
main81240-91701-06i198709-199110
SABLE,TRIM3#,4#
81240BBULB, ROOM LAMP, NO.1
main99132-12100i198812-199110
12V 10W
81241LENS, ROOM LAMP, NO.1
main81241-20060i198709-199110
W(MOON ROOF)
main81241-30070i198709-199110
main81241-30100i198812-199110
main81241-30110i198709-199110
81260LAMP ASSY, GLOVE BOX
main81260-30160i198709-199110
81260ALAMP ASSY, MAP
main81260-14050-04i198709-199110
LIGHT BLUE,TRIM8#
main81260-14050-16i198709-199110
SABLE,TRIM3#,4#
main81260-30140-04i198709-199110
BLUE,TRIM8#
main81260-30140-06i198709-199110
SABLE,TRIM3#; SABLE,TRIM3#,4#
main81260-30150-04i198709-199110
W(MOON ROOF),BLUE,TRIM8#
main81260-30150-06i198709-199110
W(MOON ROOF),SABLE,TRIM3#,4#
81260CBULB(FOR MAP LAMP)
main90981-12005×2i198709-199110
12V 8W
main90981-12014i198709-199110
12V 10W,W(MOON ROOF)
main99132-12100×2i198709-199110
12V 10W
81261LENS AND COVER, MAP LAMP
main81261-30140-04i198709-199110
BLUE,TRIM8#
main81261-30140-06i198709-199110
SABLE,TRIM3#; SABLE,TRIM3#,4#
main81261-30150-04i198709-199110
W(MOON ROOF),BLUE,TRIM8#
main81261-30150-06i198709-199110
W(MOON ROOF),SABLE,TRIM3#,4#
main81268-22040-16i198709-199110
SABLE,TRIM3#,4#
main81268-22040-24i198709-199110
LIGHT BLUE,TRIM8#
9016445008
main90164-45008
9351024516
main93510-24516
9354024014
main93540-24014

10 parts on this diagram · 3 diagrams in section

INTERIOR LAMP for Toyota CROWN

This section contains 32 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CROWN. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
